REPAIR PARTS
TILLER - MODEL NUMBER 917.292402

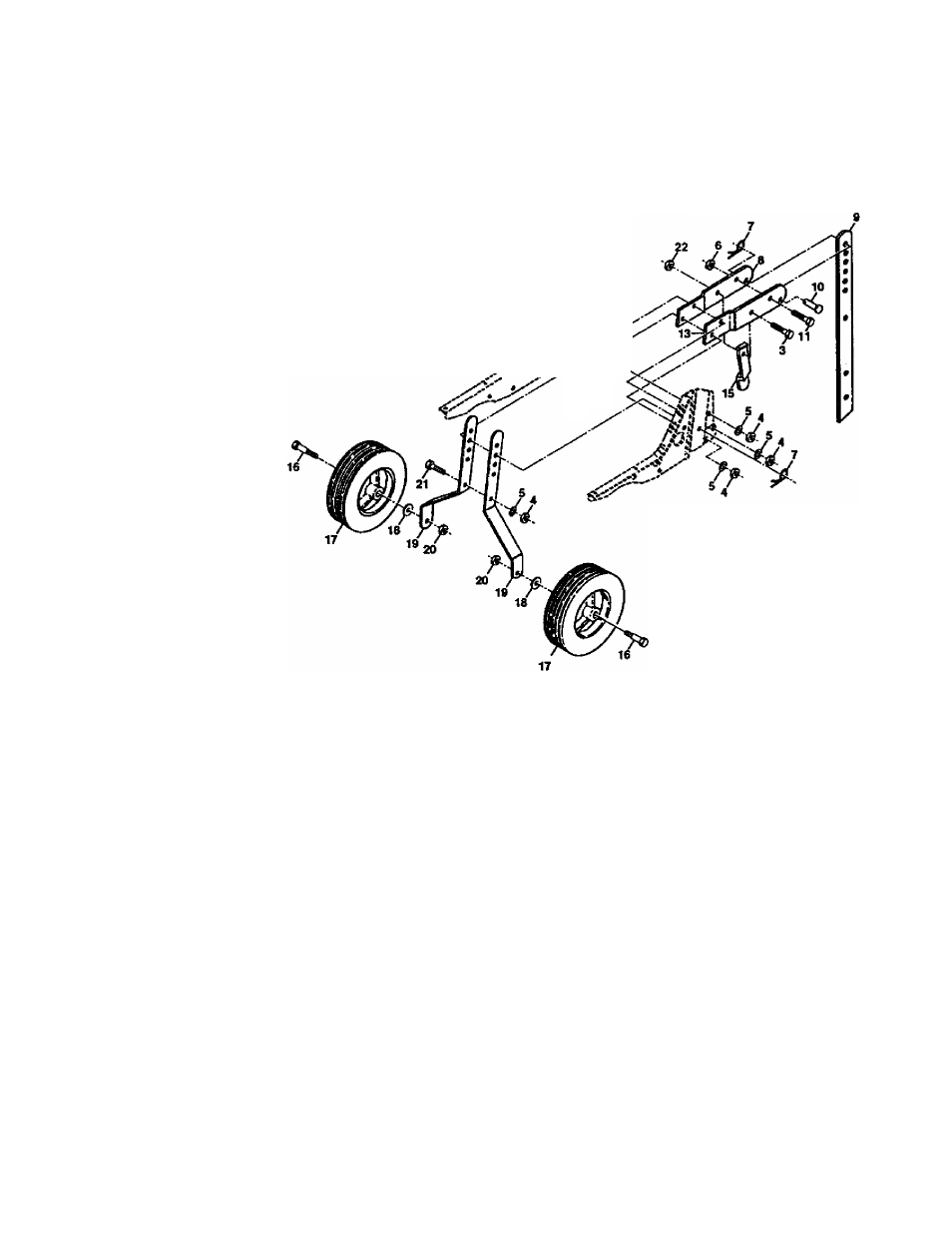

WHEEL AND DEPTH STAKE ASSEMBLY
KEY PART
NO. NO.
9194R
74760520
STD523107
STD541031
STDS51131
STD541437
4921H
8 1952J
9 122233X
10 326J
11 74780628
13 1951J
DESCRIPTION
Pin, Clevis
Bolt. Hex Head 5/16-18x1-1/4
Bolt. Hex Head 5/16-18x3/4
Nut, Hex 5/16-18
Washer. Lock 5/16
Locknut, wMasher 3/8-16
Cl^, Hairpin
Support, Deptti Stake, R.H.
Stake, Depth
Pin, Clevis
Bolt, Rn.Hex 3«-16x 1-3/4
Support, Depth Stake, L.H.
KEY PART
NO. NO. DESCRIPTION
15 5388J Spring, Stake
16 121117X BoK, ^xHilder
17 9188R Wheel
18 STD551037 Washer 13/32x13/16x11
Gauge
19 9190R Bracket, Wheel
20 STD541437 Locknut, Crown 3/8-16
21 74760516 BdL Hex Head 5/16-18 x l
22 STD541431 Locknut, w/insert 5/16-18
NOTE:/WI componertt dimensions given in U.S. inches.
1 inch = 25.4 mm
