Craftsman 917.274953 - Manual (Page 45)

TRACTOR - - MODEL NUMBER 917.274953

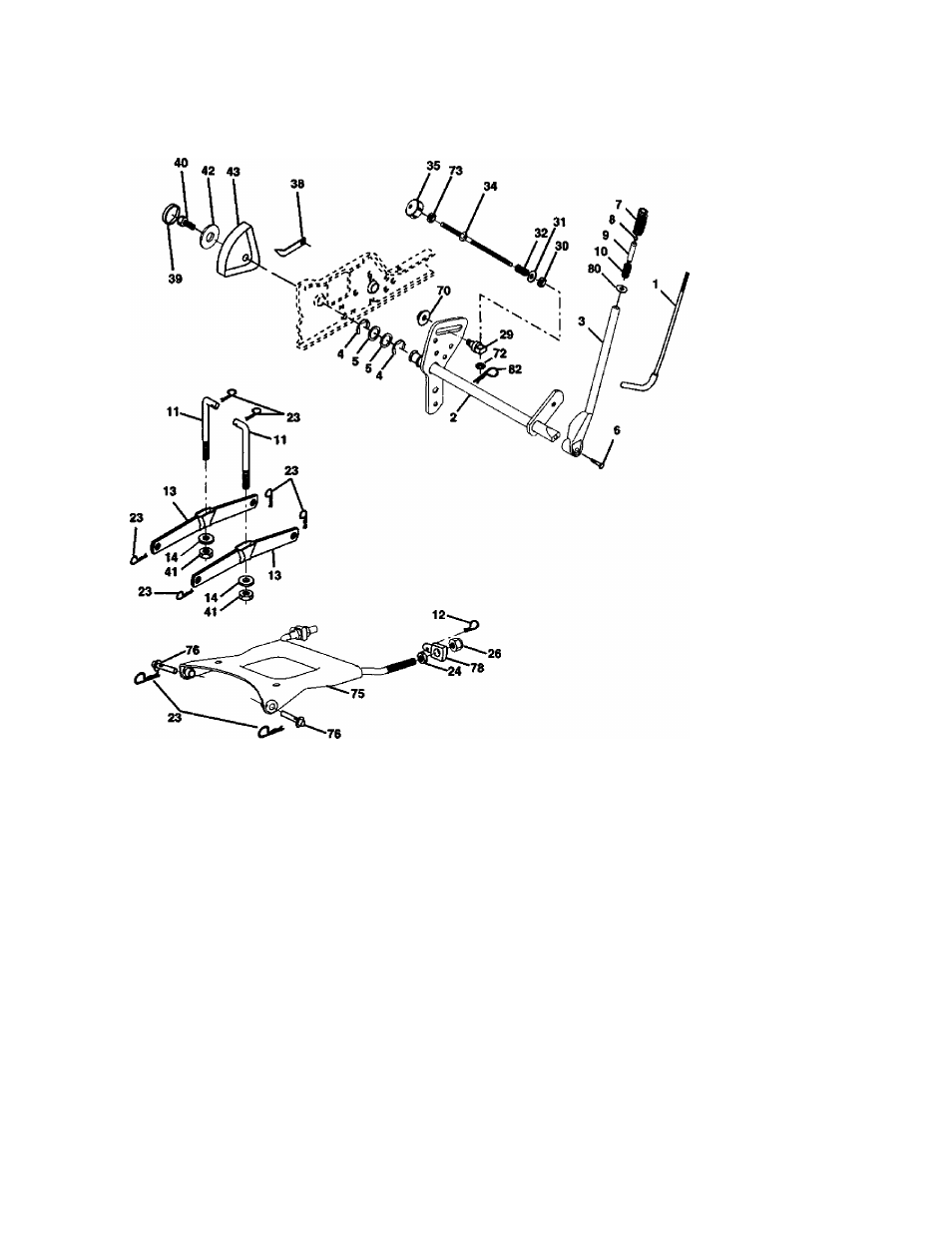

LIFT ASSEMBLY
KEY PART
NO. NO.
1 121006X
2 160045
3 159189
4 12000022
5 19292016
6 71110624
7 125631X
8 122365X
9 122364X
10 2876H
11 146704
12 163552
13 139868
14 169865
23 STD624008
24 73350800
26 73800800
29 150233
30 110807X
31 19131016
DESCRIPTION
Rod Asm., Lever
Shaft Asm., Lift Vgt
Lever Asm., Lift Rh
E-RlngTruarc#5133-87
Washer 39/32 x 1-1/4 x 16 Ga.
Bolt, RnHex 3/8-16x1-1/2
Gdp, Handle Rated
Button, Plunger
Plunger, Button
Spring 2-1/8*
Unk Lift
Retainer, Spring
Arm, Suspension Vgt
Bearing
Retainer, Spring
Nut, Jam Hex 1/2-13 Unc
Nut, Lock w/Wsh 1/2-13 Unc
Trunnion, Infin Height
Nut Special
Washer 13/32 x 5/8 x 16 Ga.
KEY PART
NO. NO. DESCRIPTION
32 137150 Spring, Compression Inf Hgt
34 137167 Rod, Adj Lift
35 138057 Knob, Inf 3/8-16 Unc
38 155097 Pointer, Height Indicator
39 123935X Plug, Hole
40 17060516 Screw 5/16-16 X 1
41 73540600 Nut, Crownlock 3/8-24
42 19112410 Washer 11/32 x 1-1/2 x 10 Ga.
43 123934X Scale, Indicator Height
70 145212 Nut Hex Flange Lock
72 110452X Nut Push Phos & Oil
73 73350600 Nut Hex Jam 3/8-16
75 175805 Plate Asm Susp Front
76 175560 Pin Flange
78 175689 Trunnion Front Susp.
80 126684X WasherShim
82 169484 Retainer Clip
NOTE: All component dinnensjons given in U.S. inches
1 inch = 25.4 mm
46
