TRACTOR - - MODEL NUMBER 917.274953

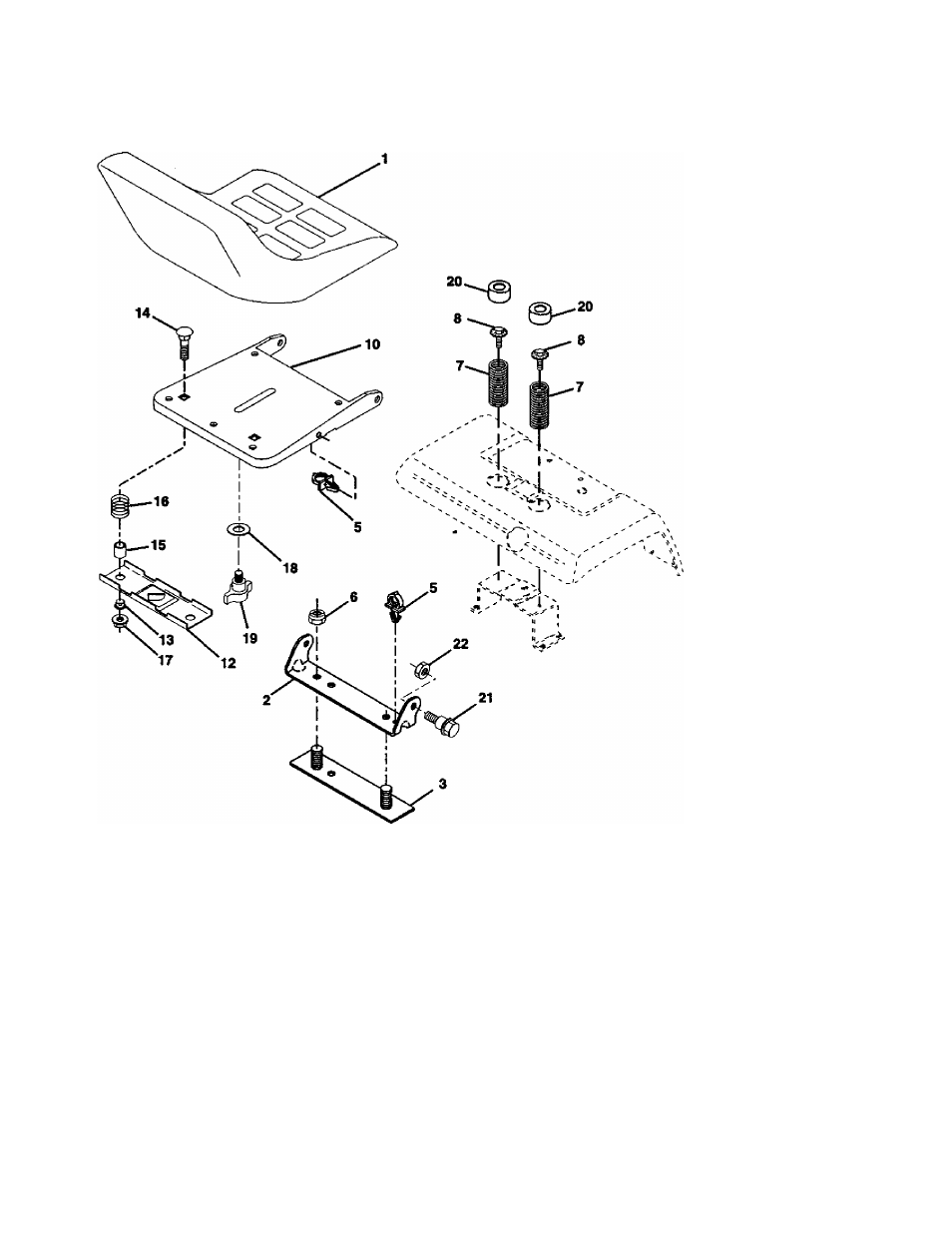

SEAT ASSEMBLY
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 180597 Seat 16 121250X Spring, Cprsn
2 180166 Bracket Pivot Fender 17 123976X Nut, Lock 1/4 Lge Fig Gr. 5
3 140675 Str^,Fer>der 18 19171912 Washer 17/32x1 -3/16x12 Ga.
5 145006 Clip, Push In, Hinged 19 166369 Knob, Seat
6 STO541437 Nut, Crowniock 3/8-16 Urtc 20 124238X Cap, Spring Seat
7 124181X Spring, Seat Cprsn 21 171852 Bolt, Shoulder 5/16-18
8 171877 Bolt 5/16-18Uncx 3/4 w/Sems 22 STD541431 Nut, Crowniock 5/16-18 Unc
10 180186 Pan, Seat
12 121246X Bracket, Mounting Switch
13 121248X Bushing, Snap
14 72050412 Bolt, Carriage 1/4-20 X 1-1^
NOTE: Ail component dintensions given in U.S. iixhes
15 134300 Spacer, Split 1 inch == 25.4 mm
43
