Craftsman 917.274953 - Manual (Page 42)

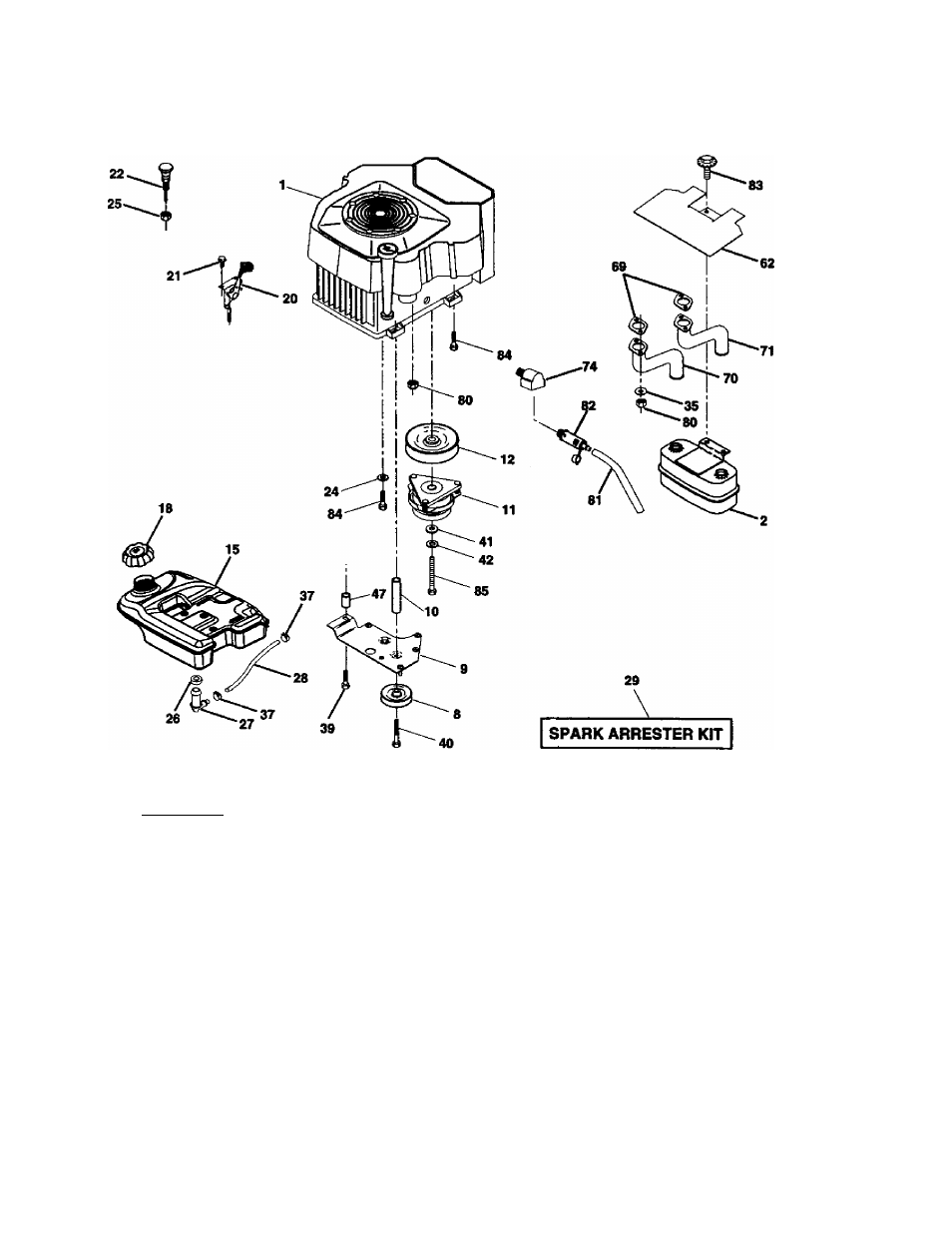

TRACTOR - - MODEL NUMBER 917.274953
ENGINE
KEY
NO.
1
PART
NO. DESCRIPTION
Engine (See Breakdown)
KEY
NO.
39
PART
NO.
17490636
DESCRIPTION
ScrewTT 3/8-16x2-1/4UNC
149723
Kohler Mode! No. CV624-65577 40 17490664 Screw TT 3/8-16 X4UNC
2 Muffler 41 126197X Washer 1-1/2 OD X15/32 ID
8 121361X Pulley V-ldler X.250
9 177748 Keeper Asm. Belt Engine 42 ST0551143 Washer Lock 7/16
10 175287 Bushing Lx>ngRH 47 175288 Bushing Short LH
11 170056 Clutch Electric 62 146629 Shield Heat
12 143996 Pulley Engine VGT Elect CIth 69 244)41-02 Gasket
15 179115 Tank Fuel Rear 70 175545 Tube Exhaust LH
18 179124X428 Cap Asm Fuel 71 175546 Tube Exhaust RH
20 177328X428 Control Throttle 74 162295 Elbow Street Brass
21 164863 Screw HwhdHi-Lo 80 M73030800 Nut Flange M8-1.25
22
#13-16 X 3/4 81 148456 Plug Drain Oil Easy Drain
175441X428 Control Choke 82 148315 Plug Drain Oil Easy
24 STD551237 Washer Ext Tooth 3/8 83 171877 Bolt 5/16-18 X 3/4
25 73920600 Nut Keps 3/8 - 24 UNF 84 17060624 Screw 3/8-16x1-1/2
26 3645J Bushing 85 179953 Bolt Hex 7/16-20x3.75
27 139277 Stem Tank Fuel
28 7834R Fuel Line
29 137180 Spark Arrester Kit
35
37 10010500
123487X Washer Split
Clamp Hose
NOTE: All component dimensions given in U.S.
Inchesl Inch = 25.4 mm
