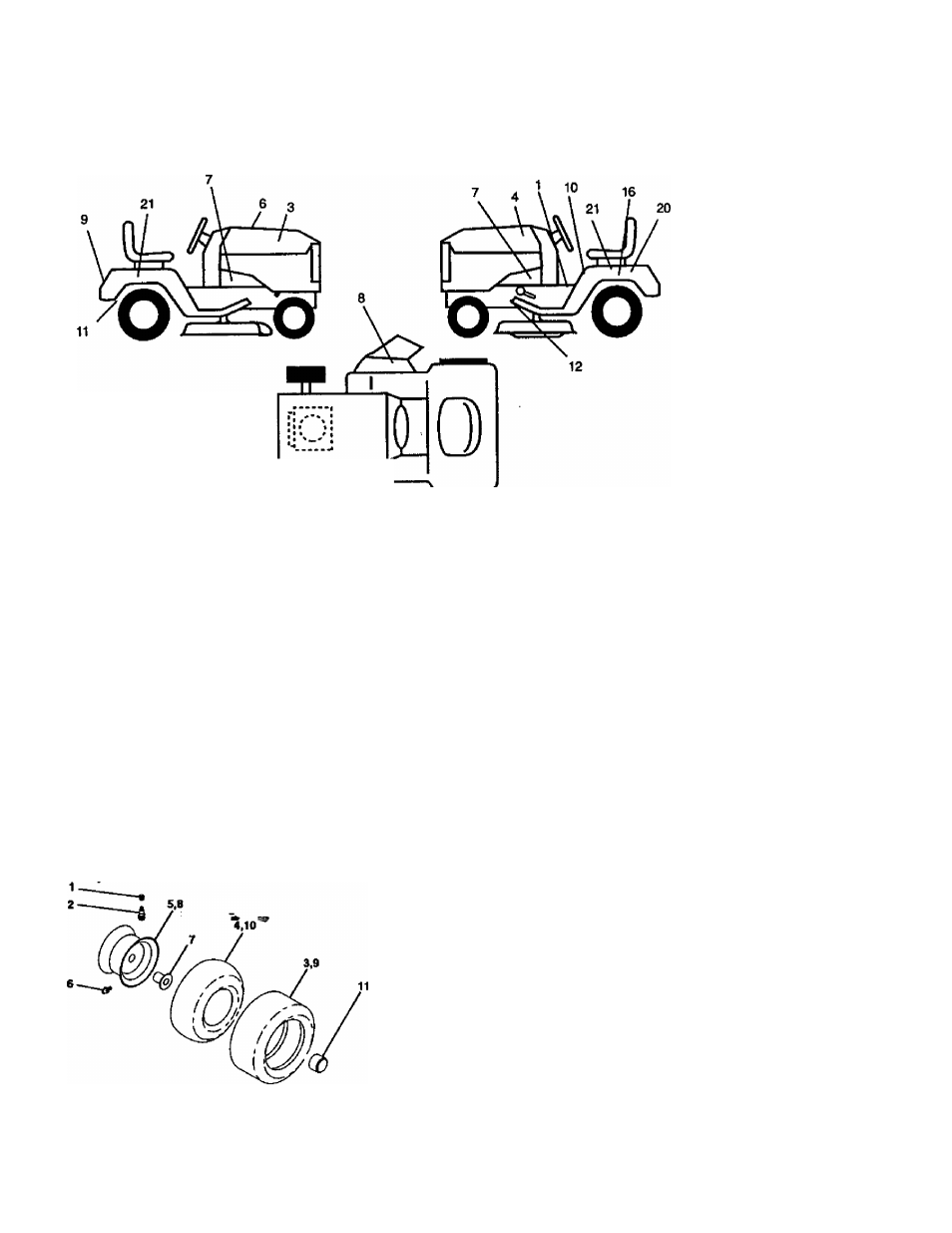

DECALS
TRACTOR - - MODEL NUMBER 917.271023
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 156811 Decal, Oper. Instr. 14 160396 Decal, V-Belt Schematic
3 163200 Decal, Hood, R.H. 16 138047 Decal, Battery Diehard
4 163202 Decal, Hood, L.H. 20 149516 Decal, Battery Dngr/Psn Eng
6 133644 Decal, Customer Maintenance 21 163205 Decal, Fender Auto Sears Gold
7 163261 Decal, Side Panel -- 138311 Decal, Lift Handle
8 163203 Decal, Deck Mower EZ3 - - 154515 Pad Footrest LH STLT
9 163204 Decal, Fender, Craftsman - - 154516 Pad Footrest RH STLT
10 156439 Decal, Fender Danger -- 167096 Ovmer's Manual, English
11 142341 Decal, Drawbar Cntrt Mvt Hyd Lt 167097 Owner's Manual, Spanish
12 146046 Decal, V-Belt Drive Schematic
WHEELS & TIRES
KEY PART
NO. NO.
1 59192
2 65139
3 106222X
4 59904
5 106732X427
6 278H
7 9040H
8 106108X427
9 122082X
10 7152J
11 104757X
-- 144334
DESCRIPTION
Vàlve Cap, Tire
Stem, V^lve
Tire, Front
Tutw, Front Tire
(Not Provided, Service Item Only)
Rim, Front
Fitting, Grease (Front Wheel Or^y)
Bearing, Flange (Front Wheel Only)
Rim, Rear
Tire, Rear
Tube, Rear Tire
(Not Provided, Service Item Only)
Cap, Axle
Sealant, Tire 10 oz.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
