ADJUSTMENTS
SQUARING THE MITER TABLE
TO THE FENCE

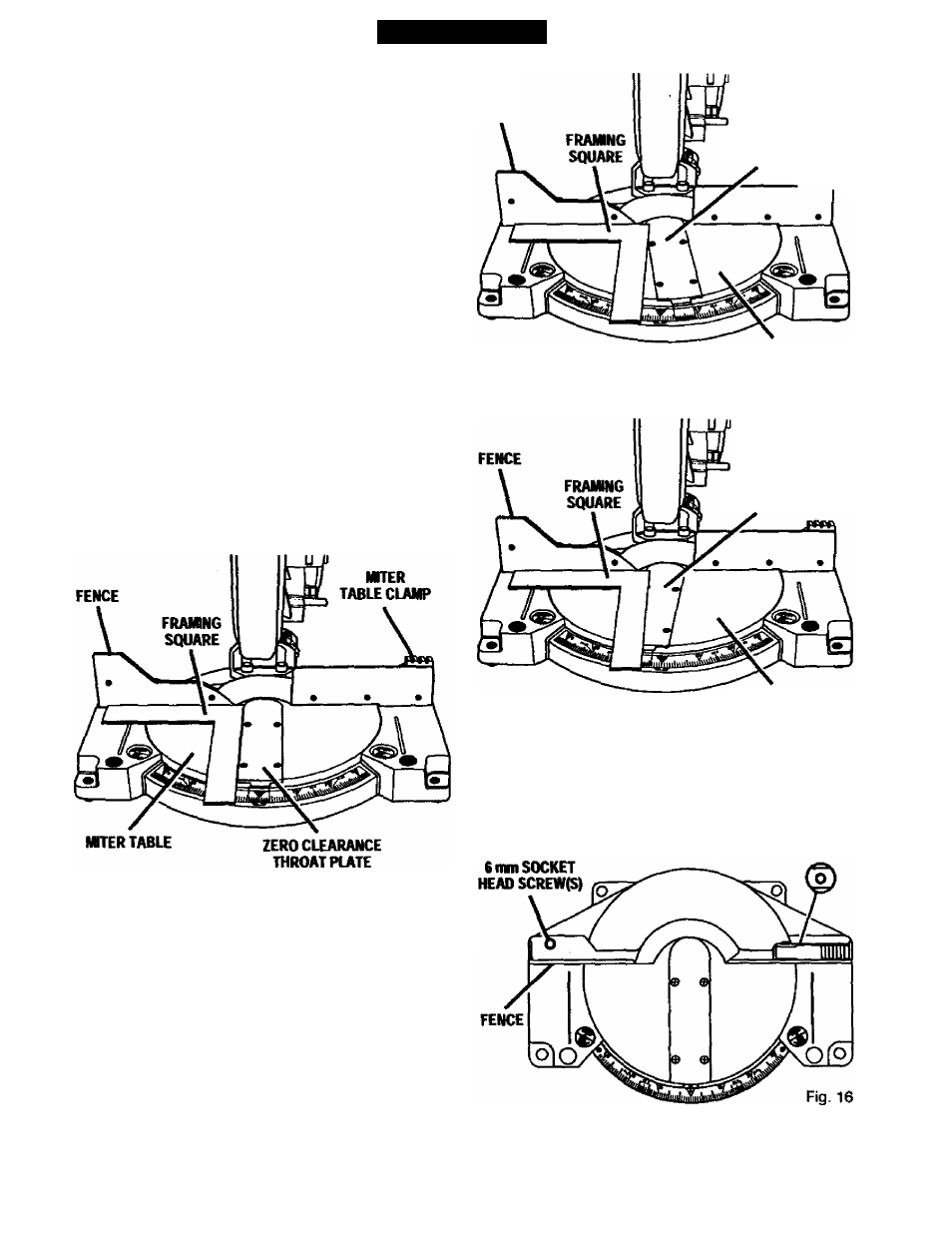

See Figures 13 - 16.
■ Unplug your saw.
A WARNING: Failure to unplug your saw could
result in accidental starting causing possible
serious personal injury.
■ Push down on the saw arm and pull out the lock
pin to release the saw arm.
■ Raise saw arm to its full raised position.
■ Lift the miter table clamp.
■ Rotate the miter table until the pointer is posi­
tioned at 0“.
■ Push the miter table clamp back down.
■ Lay a framing square flat on the miter table. Place
one teg of the square against the fence. Place die
other leg of the square beside the zero ciearance
throat plate in the miter table. The edge of the
square and the zero clearance throat plate in
the miter table should be parallel as ^own in
figure 13.
FENCE
VIEW OF INTER TABLE SQUARE WITH
FENCE AND CORRECTLY ADJUSTED Fig. 13
If the edge of die framing square and the zero
clearance throat plate in the miter table are not
parallel as shown in figures 14 and 15, adjust­
ments are needed.
ZERO CLEARANCE
THROAT PUTE
INTERTABLE
VIEW OF INTER TABLE NOT SQUARE WITH
FENCE, ADJUSTMENTS ARE REQUIRED Fig. 14
ZERO CLEARANCE
THROAT PLATE
INTERTABLE
VIEW OF INTER TABLE NOT SQUARE WITH
FENCE, ADJUSTMENTS ARE REQlflRED Fig. 15
Using a 6 mm hex key, loosen the socket head
screws securing the fence. See Figure 16. Adjust
the fence left or right until the framing square and
zero clearance diroat plate are parallel.
Retighten the screws securely and recheck the
fence-to-tabte alignment.
16
