Craftsman 917.28903 - Manual (Page 21)

A
WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY
SERVICE OR ADJUSTMENTS:
1. Depress clutch/brake pedal fully and set parking brake.
2. Place gearshift ¡ever in neutral (N) position.
3. Place attachment clutch in “DISENGAGED" position.
4. Turn ignition key to “STOP" and remove key.
5. Make sure the blades and all moving parts have completely stopped.
6. Disconnect spark plug wire from spark plug and place wire where it cannot
come in contact with plug.
TRACTOR

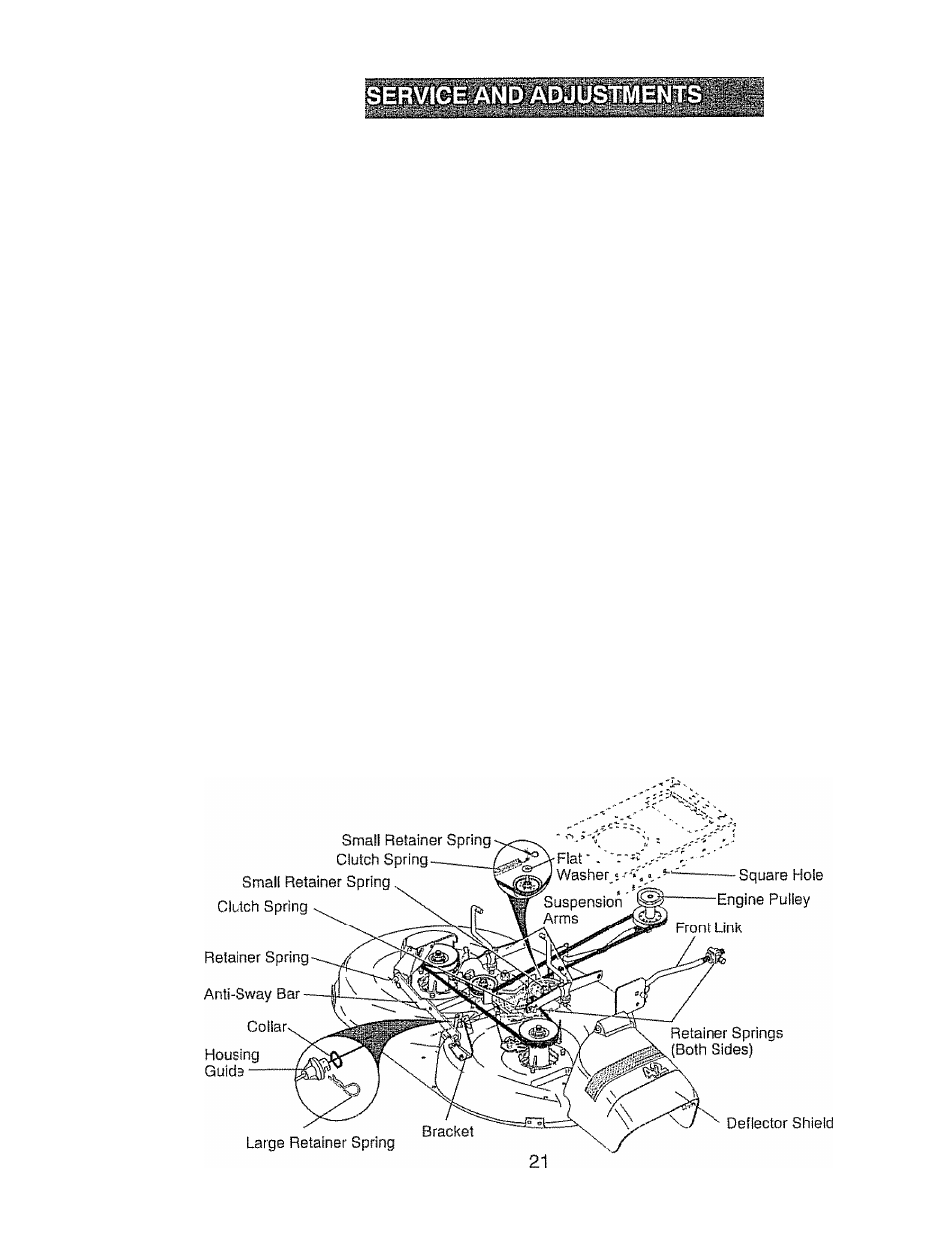

TO REMOVE MOWER
Mower will be easier to
right side of tractor,
1, PI remove from the
3.
7.
8
.
9.
Place attachment clutch in “DISEN­
GAGED” position.
Move attachment lift lever forward to
lower mower to its lowest position.
Roll belt off engine pulley.
Remove small retainer spring, and re­
move clutch spring off pulley bolt.
Remove large retainer spring, slide col­
lar off and push housing guide out of
bracket.
Disconnect anti-sway bar from chassis
bracket by removing retainer spring.
Disconnect suspension arms from rear
deck brackets by removing retainer
springs.
Disconnect front links from deck by re­
moving retainer springs.
Raise lift lever to raise suspension arms.
Slide mower out from under tractor.
IMPORTANT: If an attachment otherthan the
mower deck is to be mounted on the tractor,
remove the front links and hook the clutch
spring Into square hole in frame.
TO INSTALL MOWER
1.
3.
4.
5.
Raise attachment lift lever to its highest
position.
Slide mower under tractor with deflector
shield to right side of tractor.
Lower lift lever to its lowest position.
Connect front links to mower deck and
secure with retainer springs.
Connect suspension arms to rear deck
brackets
and secure with retainer
springs.
Connect anti-sway bar to chassis bracket
and secure with retainer spring.
Push clutch cable housing guide into
bracket, slide collar onto guide and secure
with large retainer spring.
Place flat washer and clutch spring on
idler pulley bolt and secure with small
retainer spring.
Install belt onto engine pulley.
