Craftsman 917.272054 - Manual (Page 43)

TRACTOR - - MODEL NUMBER 917.272054

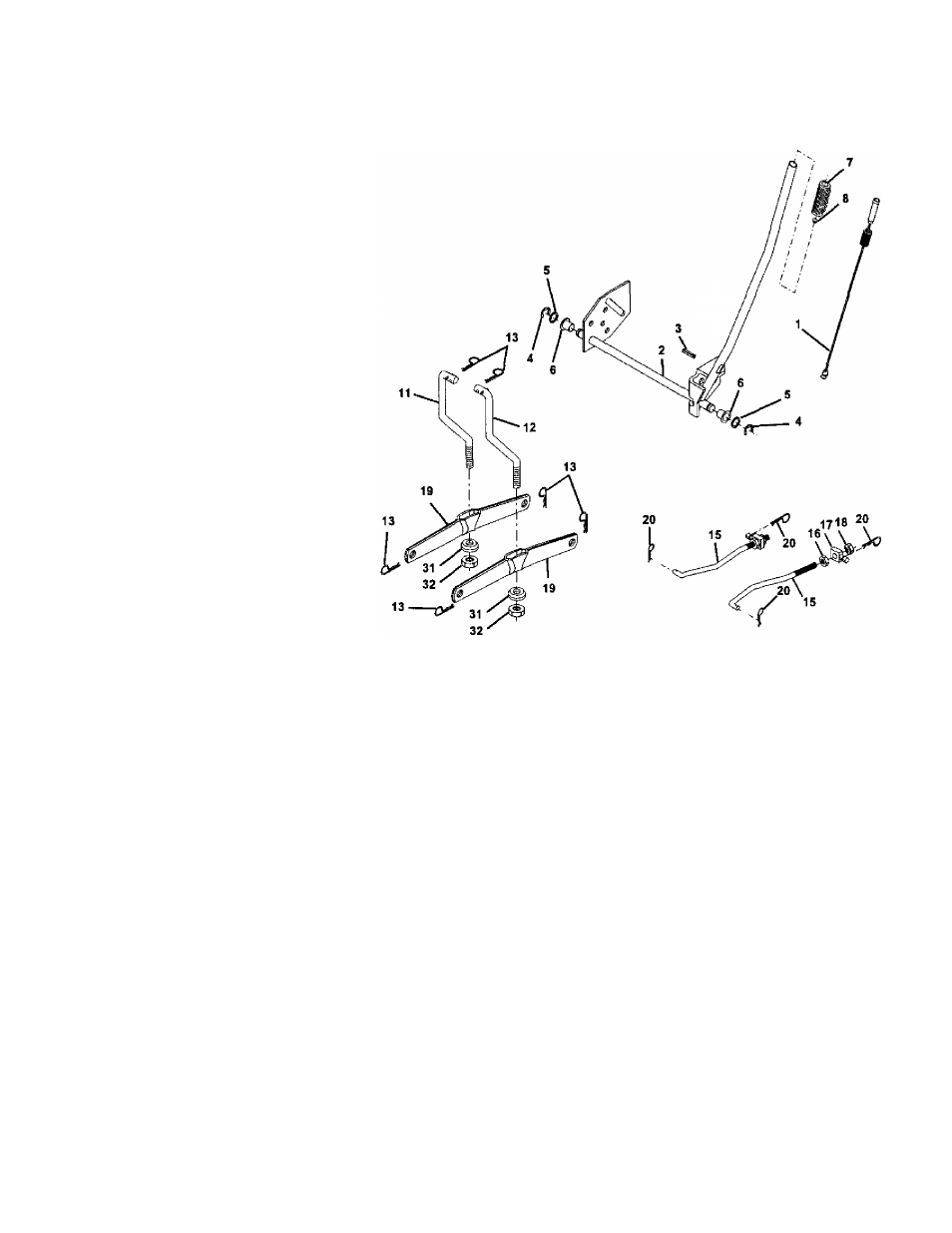

LIFT ASSEMBLY
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO. PART
NO.
DESCRIPTION
1 1S9460 Washer Asm Inner Spring W/ 13 STD624008 Retainerspring
2 159471
Plunger
Shaft Asm. Lilt 15
16 173288
73350800 Link Front
Nut Jam Hex 1/2-13 Unc
3 105767X Pin Groove 17 130171 TnjnnionBIkZinc
4 12000002 ERing#5133-62 18 73800800 Nut Lockw/Wsh 1/2-13 Unc
5 19211621 Washer 21/32 X 1 X 21 Ga. 19 139868 Arm Suspension Mower
6 12018ЭХ Bearing Nylong 20 163552 Retainer Spring
7 1ZS631X Grip Handle Fluted 31 169865 Bearing, Pvt. Lift
8 122Э65Х Button Plunger Read 32 73540600 Nut Crownlock 3/8-24
11
12 139865
139866 Link Asm Lift L.H.
Link Asm Lift R.H.
NOTE; All component dimensions given In U.S. Inches
1 irKh = 25.4 mm
43
