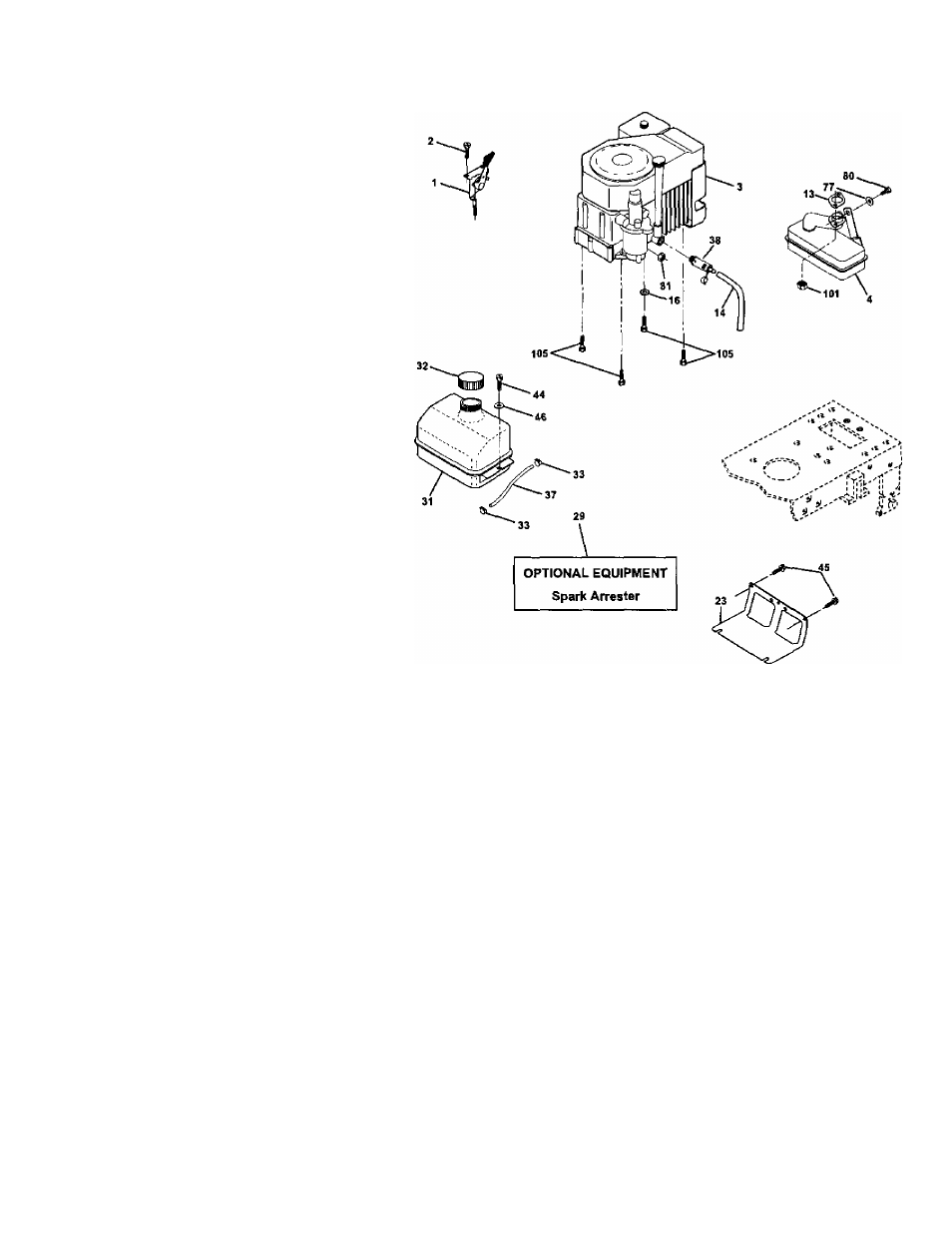

ENGINE
TRACTOR--MODEL NUMBER 917.272054
KEY PART
KEY PART
NO. NO.
DESCRIPTION
NO. NO.
DESCRIPTION
1
170548
Control, Throttle
37
137040
Line, Fuel
2
17720410
Screw, Hex Head, Thread
38
148315
Plug Drain Oil Easy
Cutting 1M-20 X 5/8
44
17670412
Screw, Hex Washer Head,
3
.........
Engine, (See Breakdown)
Thd., Roll. 1/4-20 X 3/4
KohierModelCV16.S.43530
45
17000612
Screw Hxwsh Thdr 3/8-16 x 3/4
4
159420
Muffler
46
19091416
Washer 9/32 x 7/8 X 16 Ga
13
124M1-03
Gasket
77
19101216
Washer 5/16 x 3/4 x 16 Ga.
14
148456
Tube Drain Oii Easy
80
74760508
Bolt Hex Hd 5/16-18 Unc X 1/2
16
STD551237
Washer
81
73510400
Nut Keps Hex 1/4-20 Unc
23
169837
Shieid Brn/DbrGuard
101
M73030800
Nut Flange M8-1.25 Non-LkZinc
29
137180
Arrestor, Spark
105
17120616
Screw 3/8-16 X 1
31
109202X
Tank,Fuei
32
158990
Cap Assernbiy, Fuei Sears, Vented
33
123487X
Ciamp, Hose
NOTE: AJI component dimensions ^ivenin U.S. inches
