Craftsman 917.272054 - Manual (Page 41)

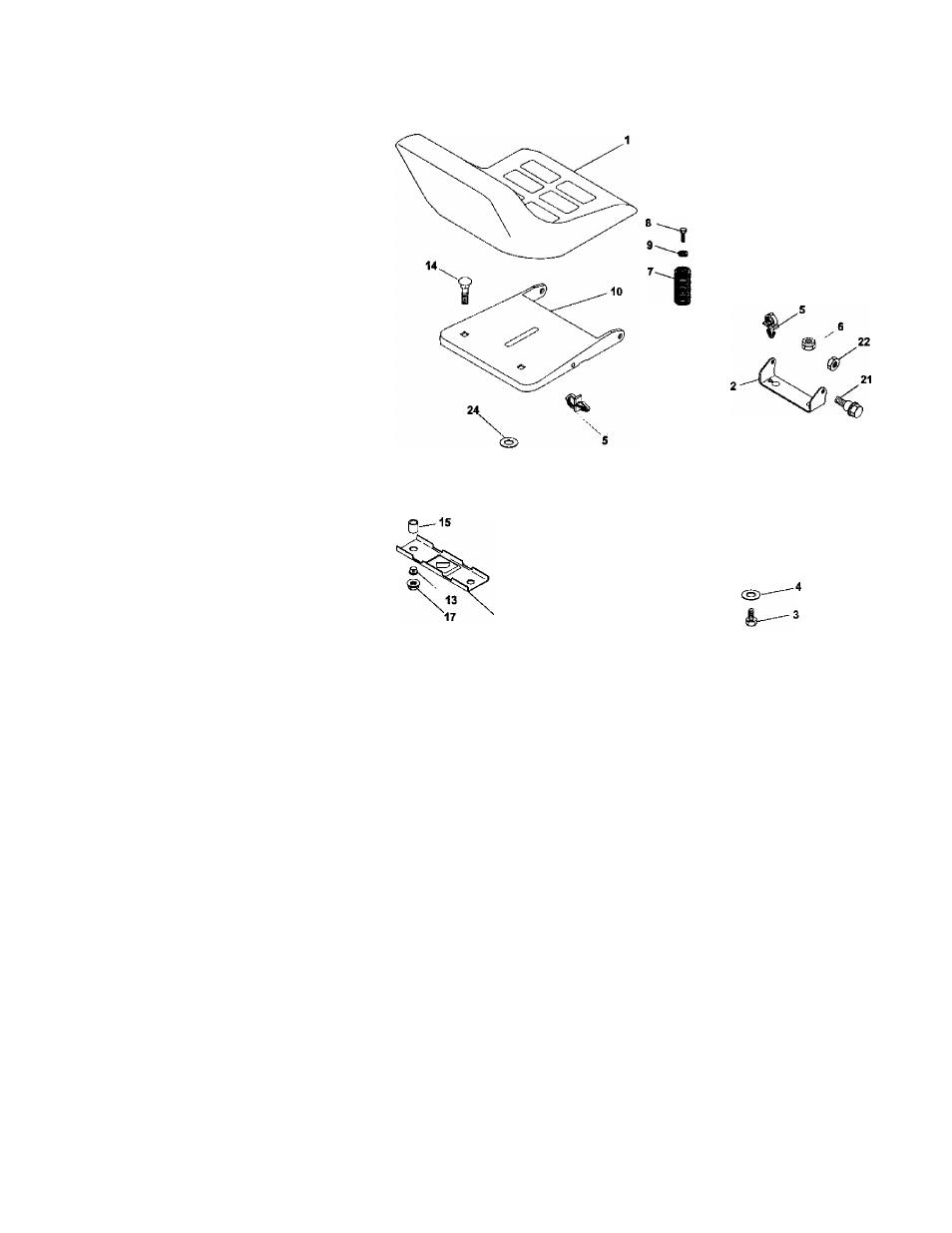

SEAT ASSEMBLY
TRACTOR- - MODEL NUMBER917.272054
16
25
11
KEY PART
NO. NO.
DESCRIPTION
KEY
NO.
PART
NO. DESCRIPTION
1 140123 Seat 13 121248X Bushing Snap Bik Nyl 50 Id
2 140551 Bracket Pnt Pivot Seat (bik ) 14 72050412 Bolt Rdhd Sht Nk 1/4-20x1-1/2
3 71110616 Bolt Fin Hex 3/8-16unc X 1 15 134300 Spacer Split 28 X 96 Zinc
4 19131610 Washer 13/32 X 3/4 X 10 Ga 16 121250X Spring Cprsn 1 27 Bik Pnt
5 145006 Clip Push In Hinged 17 123976X Nut Lock 1/4 Lge Fig Gr 5 Zinc
6 STDS41437 Nut Hex Lock w/lns 3/8-16 Unc 21 171852 Bolt Shoulder 5/16-18 LPnc-2A
7 124181X Spring Seat Cprsn 2 250 BIk Zl 22 STD541431 Nut Hex Lock w/lns S/16-18
8 17000616 Screw 3/8-16 XI 24 19171912 Washer 17/32 X 1-3/16X12Ga.
9 19131614 Washer 13/32X1X14 Ga 25 127018X Bolt Shoulder 5/16-18X62
10
11 174894
166369 Pan Pnt Seat (bik)
Knob Seat AdJ Wingnut
NOTE: All comoonent dimensions olven in U.S. inches
12 121246X Bracket Pnt Mounting Switch 1 inch - 25,4 mm
