Craftsman 917.257360 - Manual (Page 50)

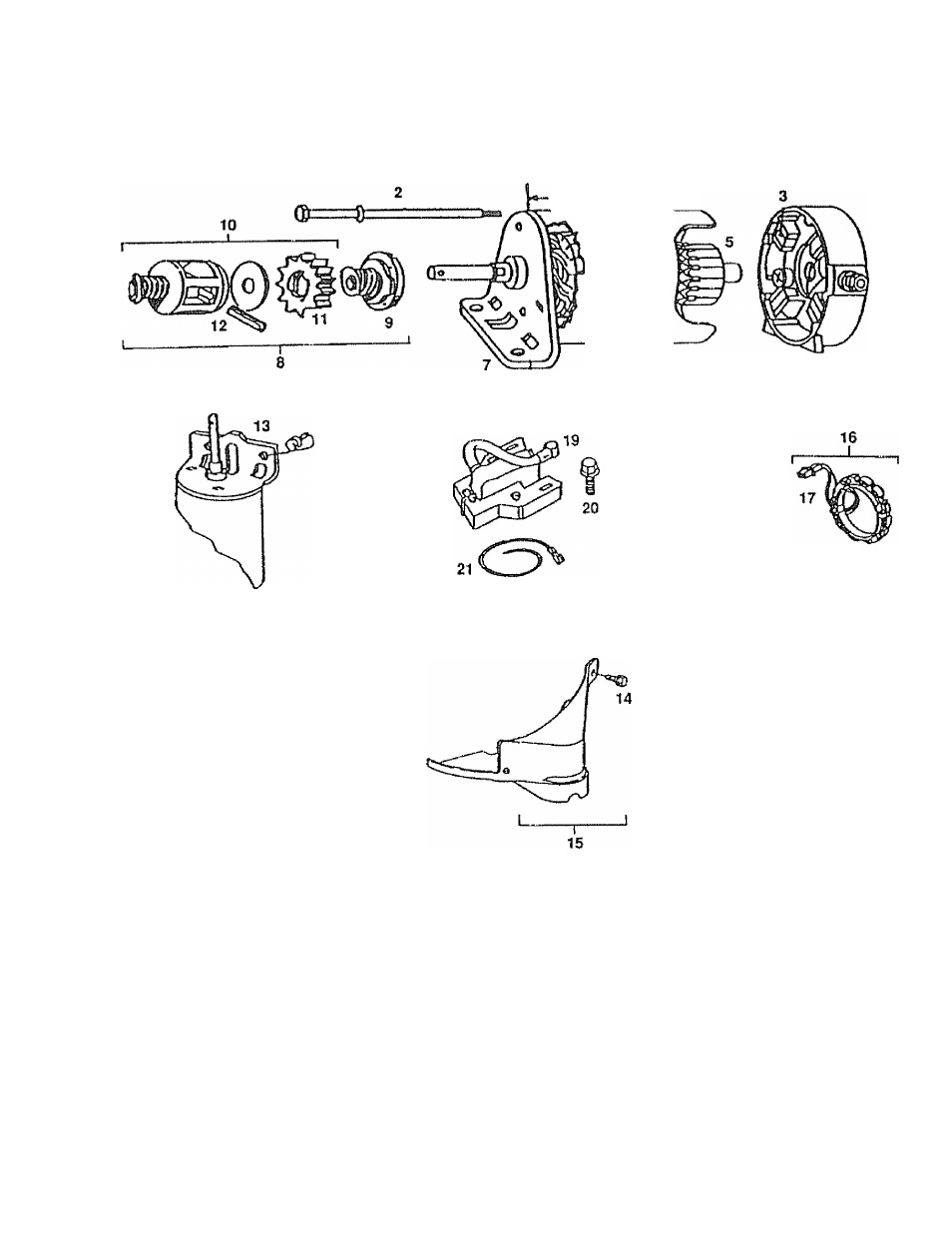

REPAIR PARTS
12 HP 38” RIDING LAWN TRACTOR - - MODEL NUMBER 917.257360
BRIGGS & STRATTON ENGINE - MODEL NUMBER 281707, TYPE 0412-01
4
Mousing tenglh—^
- 1
22
—L
18
23 LABEL KIT
24 GASKET SET
KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 394805 Motor and Drive Assembly 12V, 4- 16 393474 Stator, Alternator (Dual Circuit)
3/8" Housing Length 17 393456 Diode and Connector Assembly
2 94003 Thru Bolt Assembly (Dual Circuit)
3 395538 Brush Assembly 18 393362 Alternator Harness Assembly (Dus
4 395537 * End Cap Assembly Commutator Circuit)
5 390837 Armature Assembly 19 221798 Terminal, ignition
6 393825 Housing Assembly 20 93381 Screw, Armature Mounting Sem
7 394857 Drive End Cap Assembly 21 398808 Wire, Ground
8 490421 Drive Assembly 22 492341 Armature, Magneto
9 398003 Clutch Assembly 23 491252 Decal, Label Kit
10 490476 Retainer and Pin 24 490525 Gasket Set
11 280104 Gear
12 94288 Roll Pin * Includes Brush Set
13 93535 Screw, Sem
14 93984 Screw, Sem NOTE; All component dimensions given in U.S. inches
15 490324 Cover, Starter (Includes Mounting 1 inch = 25,4 mm
Screws)
