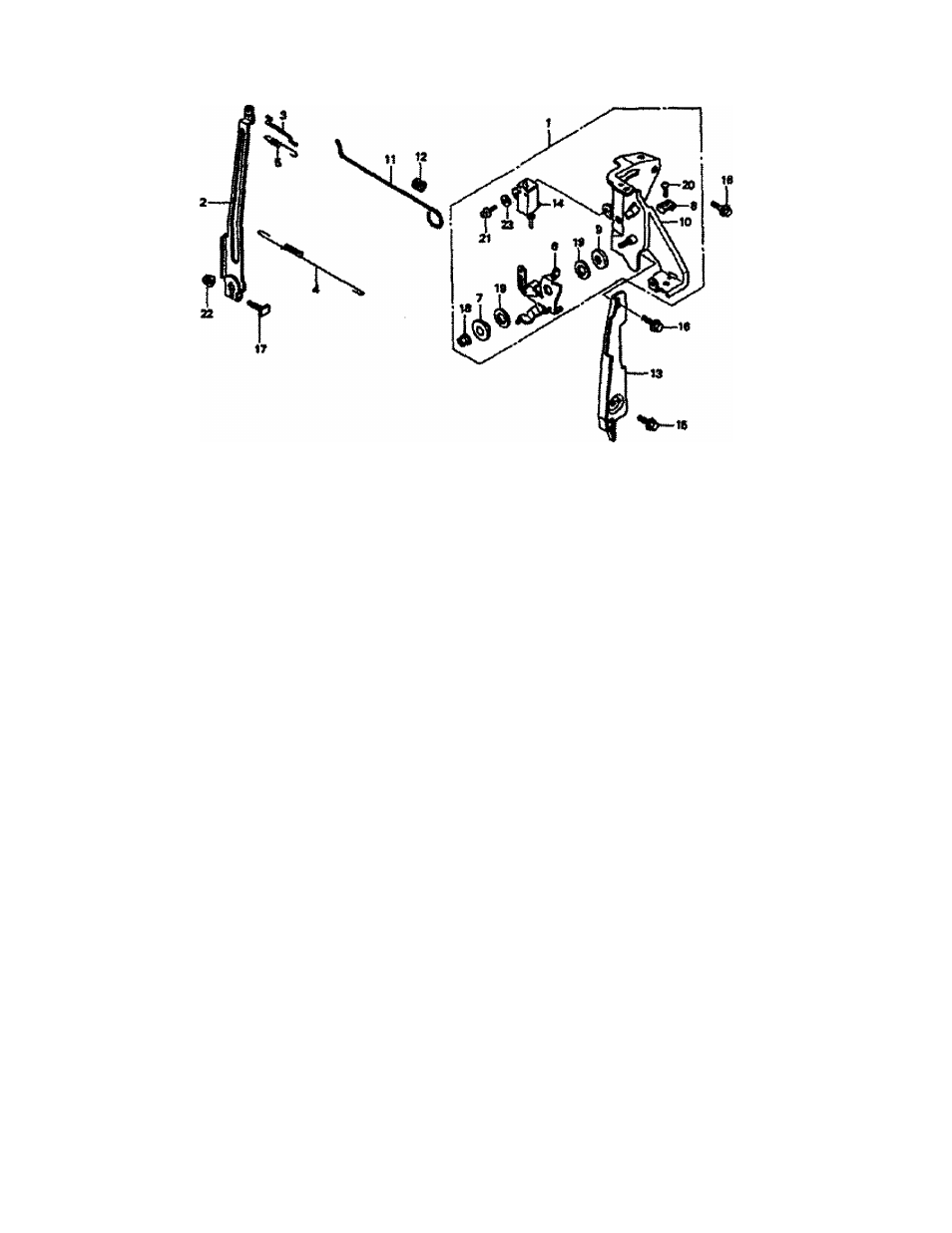

CONTROL (2)
Ref No.
Descriotion
OtjL
Part No.
1
Control Assy.
1
16500-ZL8-800
2
Arm, Governor
1
16551-ZL8-000
3
Rod, Governor
1
16555-ZL8-000
4
Spring, Governor
1
16561-ZL8-000
5
Spring, Throttle Return
1
16562-ZL8-000
6
Lever, Control
1
16571-ZL8-800
7
Washer, Control Lever
1
16575-ZL8-800
8
Holder, Cable
1
16576-891-000
9
Spacer, Control Lever
1
16578-ZL8-800
10
Base Comp., Control
1
16580-ZL8-000
11
Rod, Choke Control
1
16611-ZL8-000
12
Grommet, Choke Rod
1
16613-893-000
13
Plate, Side
1
19612-ZL8-000
14
Switch Assy., Engine Stop (N.O)
1
35120-ZL8-003
15
Bolt, Flange (6x12)
1
90013-883-000
16
Bolt, Flange (6x14)
2
90014-952-000
17
Bolt, Governor Arm
1
90015-ZE5-010
18
Nut, Self-lock (6MM)
1
90114-SAO-000
19
Washer (12.5MM)
■ 2
90452-KG8-000
20
Screw, Pan (5x16)
1
93500-05016-OA
21
Screw-Washer (4x12)
1
93892-04012-00
22
Nut, Flange (6MM)
1
94050-06000
23
Washer, Plain (4MM)
1
94103-04000
