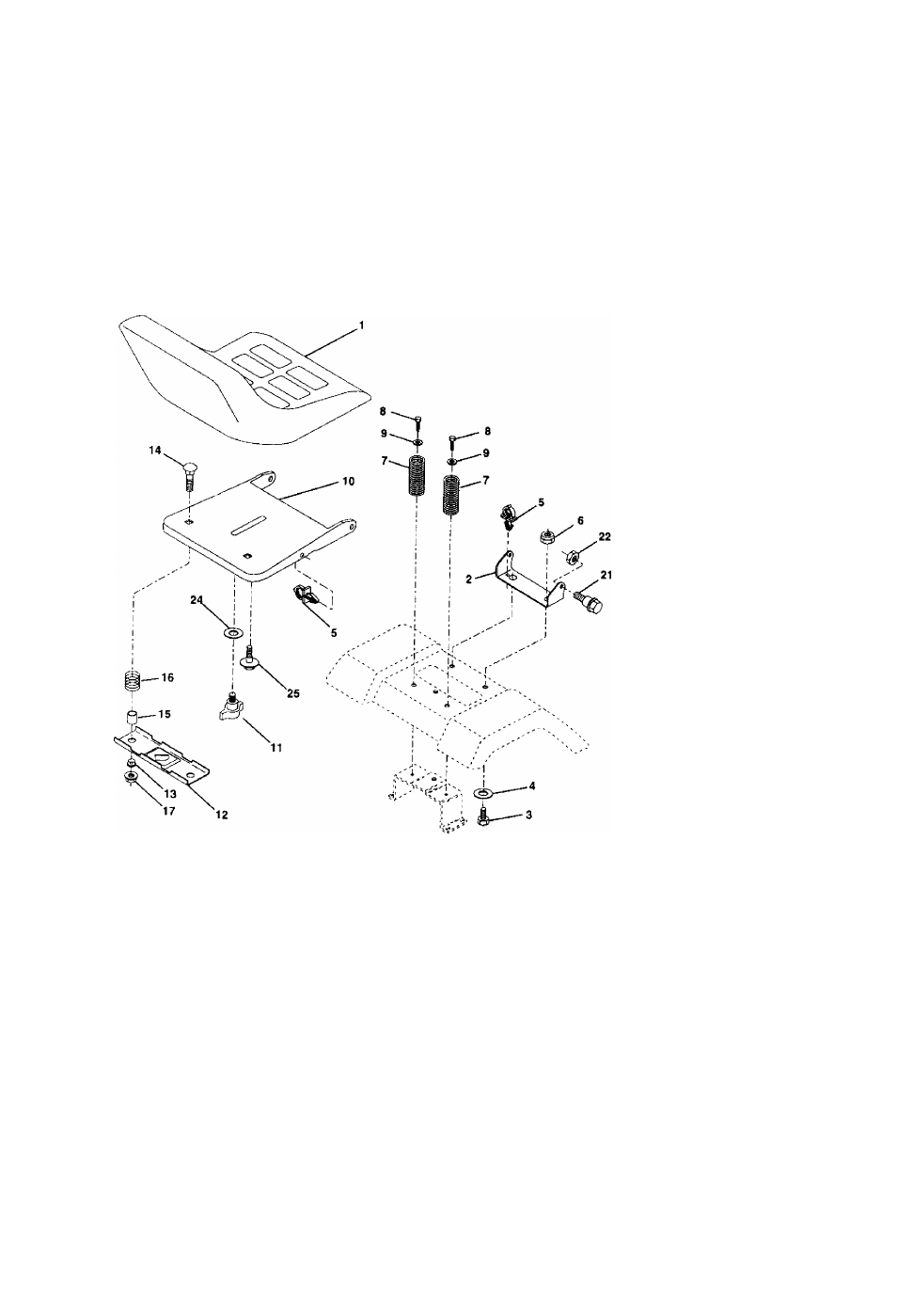

SEAT ASSEMBLY
TRACTOR - - MODEL NUMBER 917.270962
KEY PART
NO. NO.
1 140123
2 140551
3 71110616
4 19131610
5 145006
6 STD541437
7 124181X
8 17000616
9 19131614
10 155925
11 166369
DESCRtPTION
Seal 3450 BIk/bIk Craftsman
Bracket Pnt Pivot Seat (bik )
Bolt Fin Hex 3/8-16unc X 1
Washer 13/32 X 3/4 X 10 Ga
Clip Push tn Hinged
Nut Hex Lock w/lns 3/8-16
Unc
Spring Seat Cprsn 2 250 BIk 2i
Screw 3/8-16 X 1.5 SMGML
Washer 13/32 X 1 X 14 Ga
Pan Pnt Seal (bik)
Knob Seal
KEY PART
NO. NO.
12
13
14
15
16
17
21
22
24
25
121246X
121248X
72050412
134300
121250X
123976X
171852
STD541431
19171912
127018X
DESCRIPTION
Bracket Pnt Mounting Switch
Bushing Snap Bik Nyt 50 Id
Bolt Rdhd Sht Nk 1/4-20x1-1/2
Spacer Split 28 X 96 Zinc
Spring Cprsn 1 27 Bik Pnt
Nut Lock 1/4 Lge Fig Gr 5 Zinc
Bolt Shoulder 5/16-18 Unc-2A
Nut Hex Lock w/lns 5/16-18
Washer 17/32 X 1-3/16 X 12
Ga.
Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
