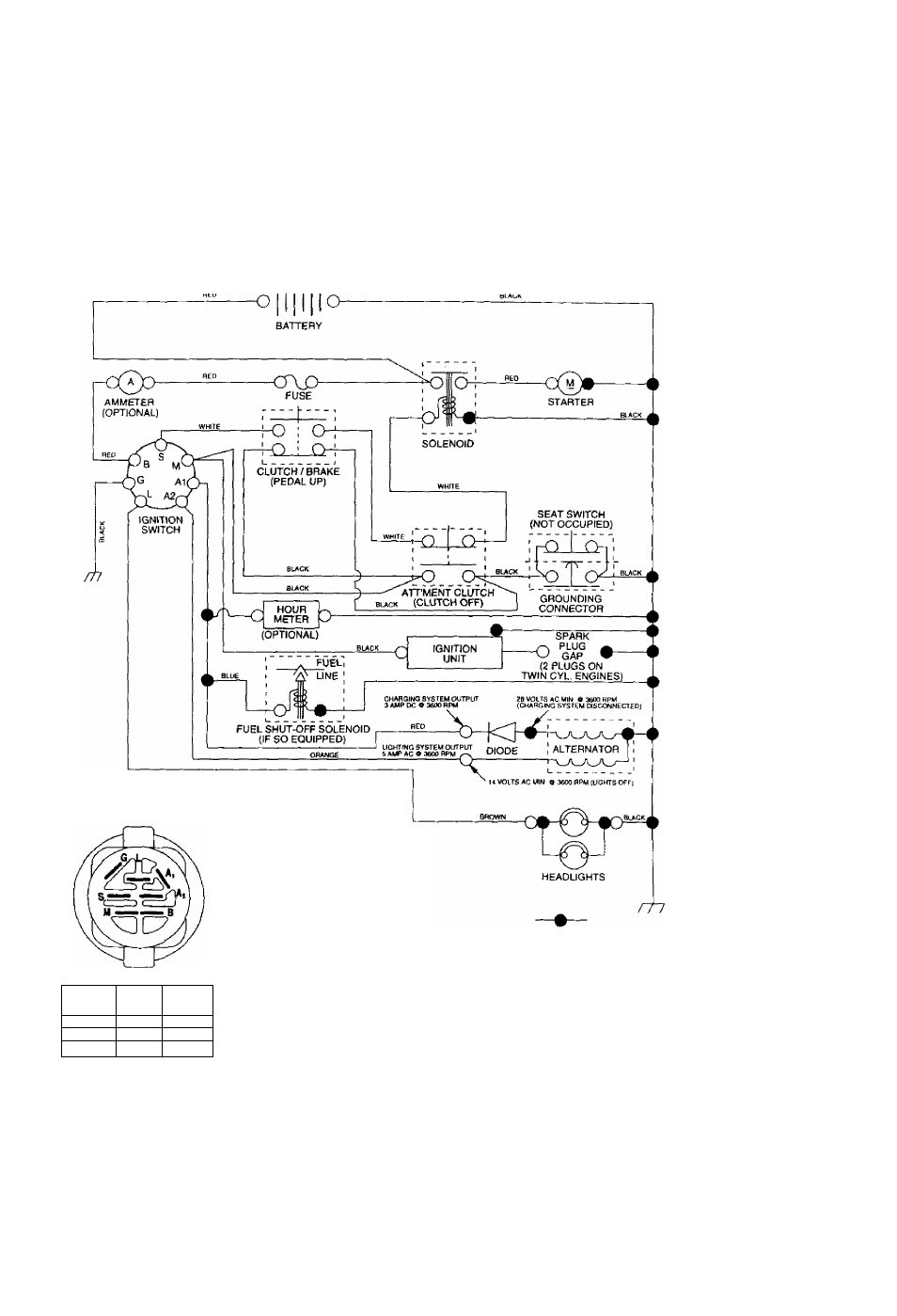

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.270962

IGNITJON SWtTCH

NOTE

YOUR TRACTOR tS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE

BATTERY. BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.

POSITION CIRCUIT "MAKE"

OFF

MtG+A1

none

RUWLIGKT

B+A1

A2+U

RUN

BtAI

NONE

STAFIT

+ S + A1 NONE

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
