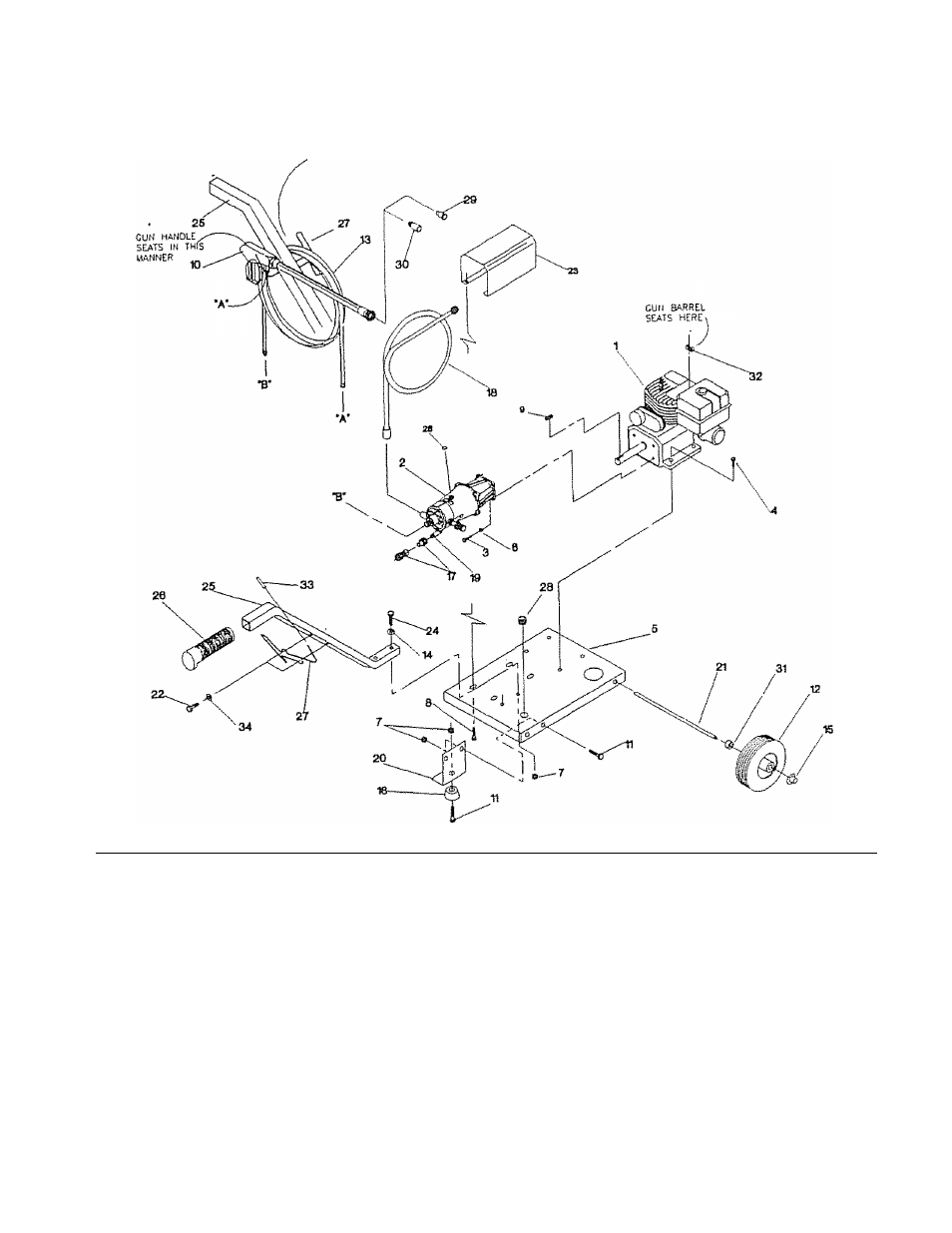

CRAFTSMAN 1400 PSI HIGH PRESSURE WASHER 580.741700 REPAIR PARTS
COILED HOSE IS affixed 10
BRACKET iM THIS manner
ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION
1 91122 3 H.P. Tecumseh Engine (1 REQ,) 18 89800 Injector Tube and Filter (1 REQ.)
2 87627 2 GPM Pump (1 REQ ) 19 90065 Plastic Garden Hose Neck (1 REQ.)
3 22147 5/16"-24
X r
Capscrew (4 REQ,) 20 91092 Support Leg (2 REQ)
4 39414 MS
X
35mm Capscrew (4 REQ.) 21 91096 Zinc Axle (1 REQ)
5 91091 Mounting Plate (1 REQ) 22 86292 #10 Seif-drilling Screw (3 REQ.)
6 22129 MS Lock Washer (4 REQ.) 23 88618 Pump Shroud (1 REQ.)
7 52858 M8-1.25 Flange Nut (12 REQ.) 24 57821 M8-1.25
X
40m Capscrew (2 REQ)
8 70116 M5-0,8x12mm Screw 25 91093 Guide Handle (1 REQ)
with lockwasher (4 REQ.) 26 77584 Handle Grip (1 REQ)
9 89314 3/16" sq,
X
1-7/8" Key (1 REQ) 27 92029 Gun and Hose Holder (1 REQ.)
10 91104 Spray Gun Assembly (1 REQ.) 28 92235 Nozzie Grommet (1 REQ)
11 39253 M8-1.25
X
20mm Capscrew (6 REQ,)29 91106 Turbo Head (1 REQ.)
12 91094 Wheel (2 REQ ) 30 91107 Hi-Lo Adjustable Head (1 REQ)
13 91629 Hose Assembly (1 REQ.) 31 92272 Wheel Spacer (2 REQ)
14 50190 M8 Flat Washers (2 REQ ) 32 65852 Spring Clip (1 REQ)
15 75402 1/2" Push Nut (2 REQ.) 33 92067 Vinyl Cap (1 REQ.)
16 87841 Shock Mount (2 REQ) 34 22473 M6 Flat Washer
(2
REQ )
17 91129 Hose Quick Disconnect (1 REQ.) — 88601 Owner’s Manual (1 REQ)[not shown]
15
Drawing No. 88602
