ENGINE PARTS

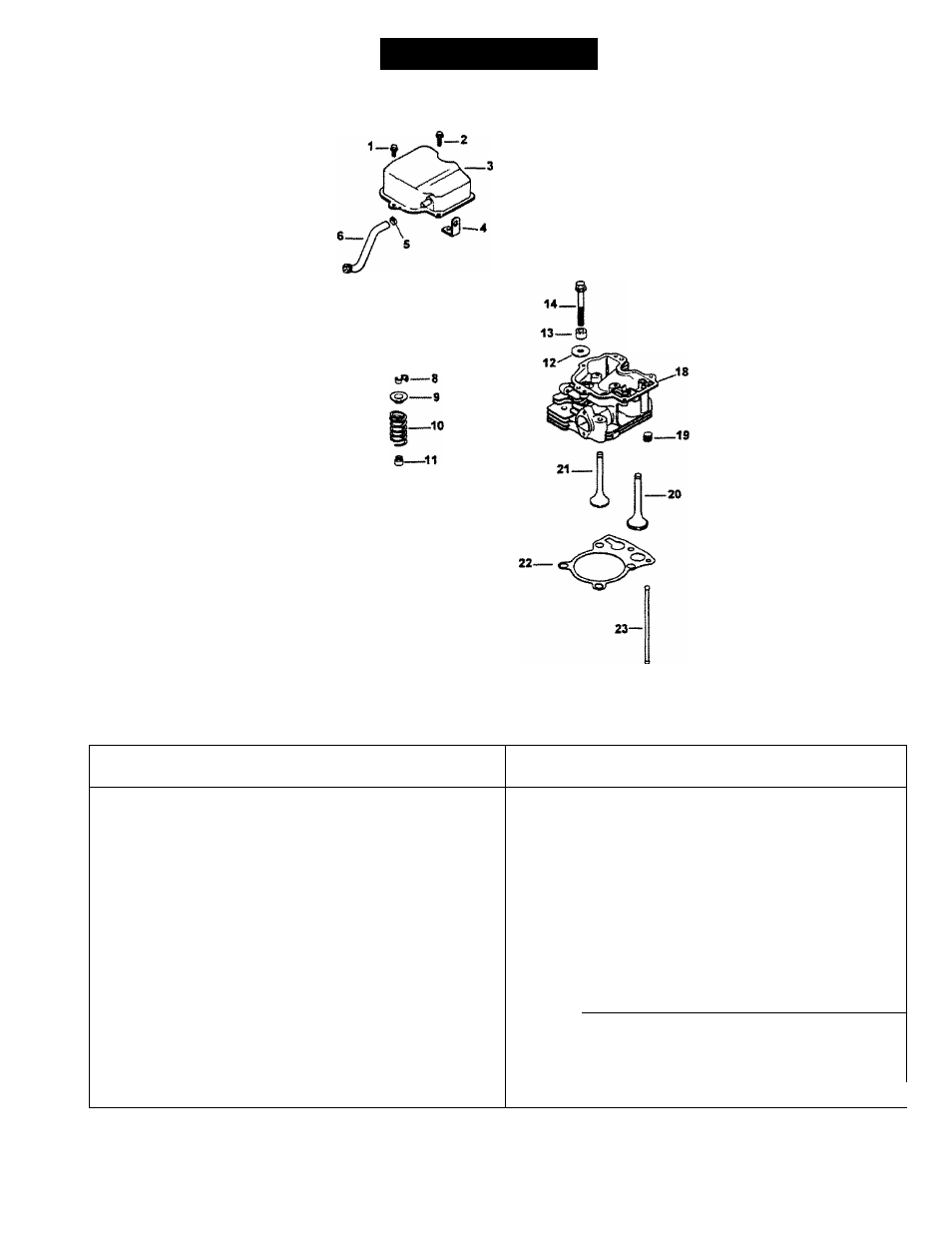

CRAFTSMAN 3000 PSI HIGH PRESSURE WASHER 919.763500 ENGINE NUMBER CH13T -22521
27.
,#„26
Ss ,—25
8— feO
9—
10
I —15
§!~-16
^_____ 17
24
REF.
NO.
PART
NO. DESCRIPTION
REF.
NO.
PART
NO, DESCRIPTION
1 M-0645020 Screw, hex. flange M6xi.0x20 (4) 17 25 186 01 Aim, rocker (2)
2 M-0645025 Screw, hex. flange M6xi.Ox25 18 12 318 19 Head, cylinder
3 12 096 07 Cover, valve w/nipple 19 X-75-23 Plug, alien hd. 1/811 pipe
4 12 445 05 Strap, lifting (PTO side) 20 12 017 01 Valve, intake (Std.)
5 X-426-9 Clamp, hose 21 12 016 01 Valve, exhaust (Std.)
6 12 326 09 Hose, breather 22 12 041 06 Gasket, cylinder head
7 12 755 81 Kit, cylinder head (includes 8-23, 12 041 23 12 411 01 Rod, push (2)
01 gasket (2), 12 041 02 gasket, and12 24 12 351 02 Lifter, valve (2)
041 03 gasket) 25 12 402 02 Reed, breather
8 12 755 03 Kit, retainer (2) 26 M-0545010 Screw, hex, flange M5x0.8xl0
9 12 173 01 Cap, valve spring (2) 27 12 018 03 Retainer, breather reed
10 12 089 01 Spring, valve (2)
11 24 032 05 Seal, valve stem (2) NOT ILLUSTRATED
12 12 468 05 Washer, plain 13/32 12 041 01 Gasket, carburetor (2)
13 12 112 13 Spacer, head bolt exhaust port 12 041 02 Gasket, air fitter
14 12 086 16 Screw, hex. flange MlOxt.SxSt (5) 12 041 03 Casket, exhaust manifold
15 M-0640034 Screw, hex. flange M6xl.Ox34 (2) 12 017 02 Valve, intake (.25) _
16 12 599 03 Pivot, rocker arm (2) 12 016 02 Valve, exhaust (.25)
