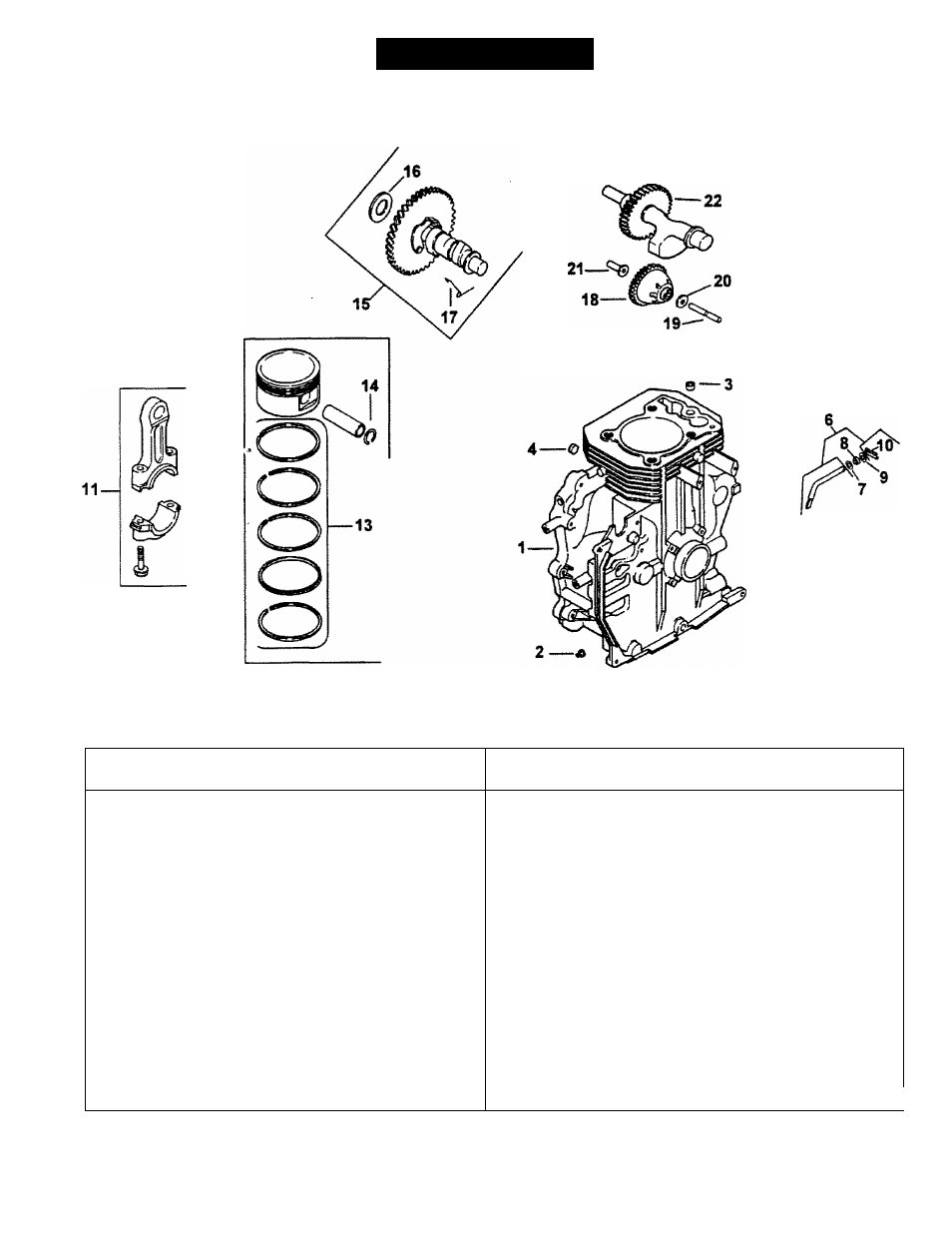

ENGINE PARTS
CRAFTSMAN 3000 PSI HIGH PRESSURE WASHER 919.763500 ENGINE NUMBER CH13T -22521
12
-
REF. PART
NO. NO. DESCRIPTION
REF. PART
NO. NO. DESCRIPTION
1 12 522 06 Crankcase (Use: Short Block) 14 12 018 02 Retainer, piston pin (2)
2 X-75-10 Plug, solid sq. hd. 3/811 N.P.T.R (2) 15 12 755 49 Kit, camshaft (Includes 16,17)
3 12 280 17 Dowel locating (4) 16 12 422 08 Shim, camshaft (A.R.)
4 52 139 09 Plug, cup Shim, camshaft (A.R.)
5 12 032 03 Seal, crankshaft Shim, camshaft Shim, camshaft (A.R.)
6 12 755 64 Kit, governor cross shaft (Includes 10) Shim, camshaft (A.R.)
7 M-0631015 Washer, plain 6 mm Shim, camshaft (A.R.)
8 12 032 01 Seal, governor cross Shim, camshaft (A.R.)
9 X-25-102 Washer, plain 1/4" 17 12 089 31 Spring, actuating
10 12 154 05 Clip, hitch pin 18 1204305 Gear, governor
11 12 067 05 Connecting Rod (Std.) 19 1214402 Shaft, governor gear
12 067 06 Connecting Rod (.25) 20 M-0631005 Washer, plain 6 mm
12 12 874 01 Piston w/Ring Set (Std.) 21 1238001 Pin, governor regulating
12 874 02 Piston w/Ring Set (.25) 22 1214426 Shaft, balance
12 874 03 Piston w/Ring Set (.50)
13 12 108 01 Ring Set (Std.)
12 108 02 Ring Set (.25)
12 108 03 Ring Set (.50)
