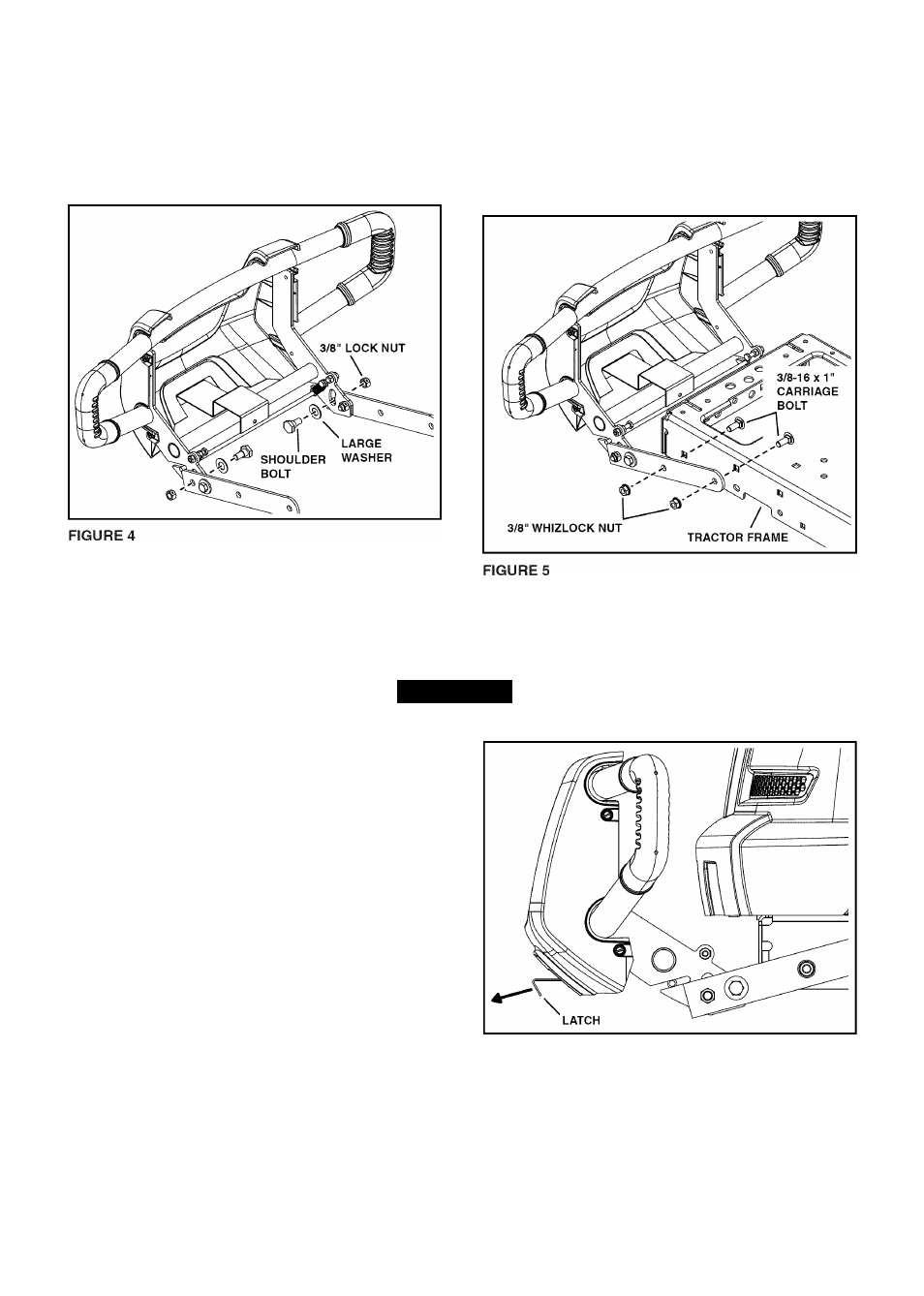

STEP 4:

(SEE FIGURE 4)

• Assemble a shoulder bolt, large washer and 3/8" lock

nut to the frame brace and slotted hole on each side
of the bumper.

STEP 5:

(SEE FIGURE 5)

• Fasten the frame braces to the tractor frame using

four 3/8-16 X 1" carriage bolts and 3/8" whiziock nuts.

NOTE: Only tractor frame shown for clarity.

OPERATIO

TILT BUMPER DOWN BEFORE RAISING
TRACTOR HOOD:

(SEE FIGURE 6)

•

While pushing In lightly on top of bumper, pull latch

under front of bumper.

•

Keep latch pulled out and pull down on bumper.

LOCK BUMPER INTO UP POSITION:

(SEE

FIGURE 6)

•

• Push bumper up Into position. Latch will lock bumper

Into place.

FIGURES

Call 1 -866-576-8388 for missing parts or assembly help
DO NOT RETURN TO STORE
