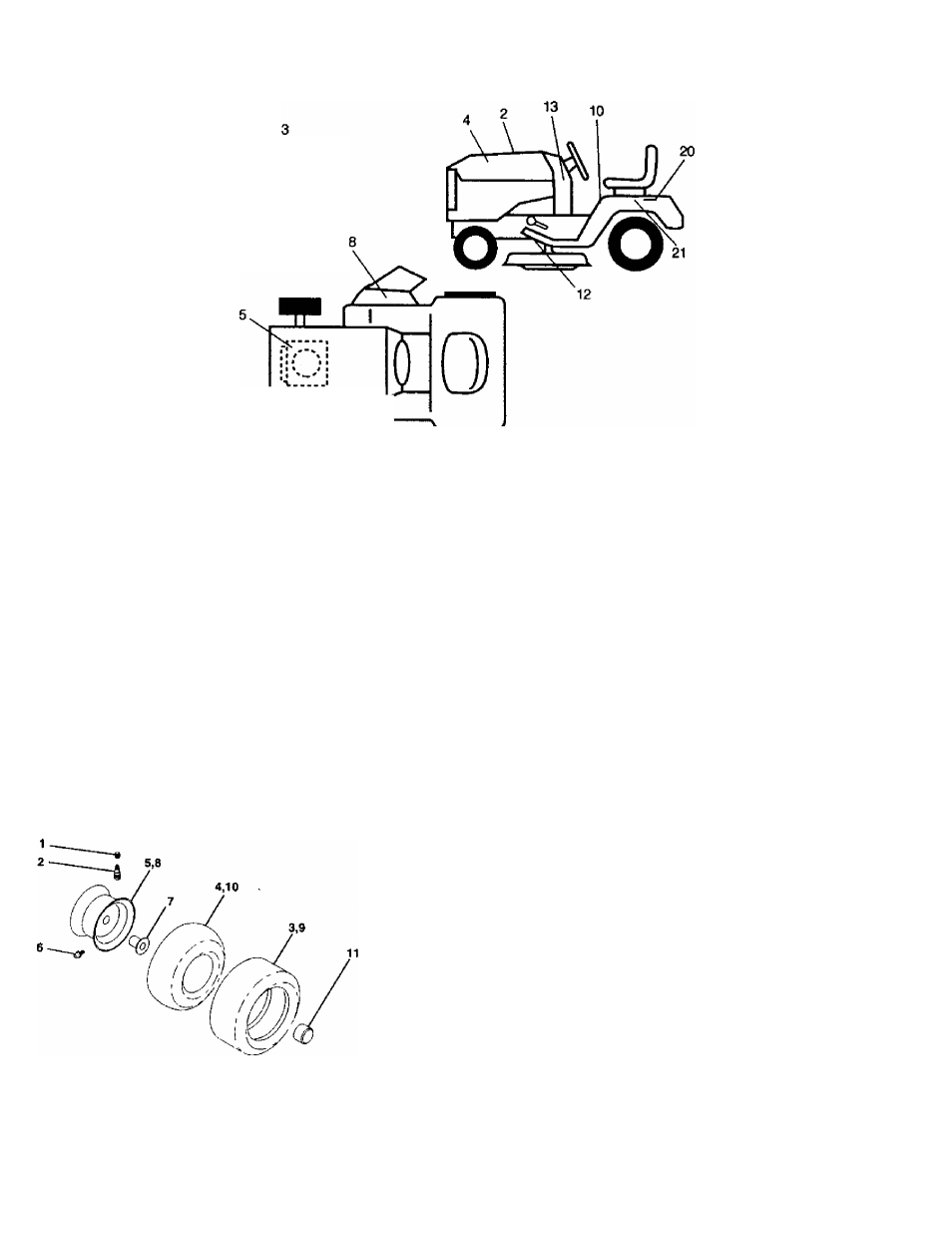

TRACTOR - - MODEL NUMBER 917.270732
DECALS
13
6
Ш
14
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
156368
Decal, Open Instr.
13
163254
Decal. Dash Panel
2
171760
Decal, Replacement
14
160396
Decal, V-Belt Schematic
3
171696
Decal, Hood, R.H.
20
149516
Decal Battery Dngr/Psn Eng
4
171697
Decal, Hood, LH.
21
163207
Decal. Fender Sd. Wht
5
165406
Decal, HP Engine
- -
138311
Decal, Lift Handle
6
133644
Decal, Customer Maintenance
- -
165800X428 Pad Footrest LHSTLT
8
166887
Decal, Deck Mower EZ
- -
165799X428 Pad Footrest RH STLT
9
163204
Decal, Fender, Craftsman
- -
174876
Owner's Manual, English
10
156439
Decal, Fender Danger
- -
174877
Owner's Manual, Spanish
12
146046
Decal, V-Belt Drive Schematic
WHEELS & TIRES
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
59192
65139
106222X
59904
106732X427
278H
9040H
106108X427
122082X
7152J
104757X
144334
DESCRIPTION
Cap Value Tire
Stem Value
Tire F Ts 15 X
6 0 - 6 Service
Tube Inner Front #35060
Rim Asm
6"front White Service
Fitting Grease
Bearing Flange
Rim Asm
8" rear White Service
Tire R Ts 20 X 10-8 Service
Tube Rear 9 5X8 Sen/ice
Cap Axle BIk 1 50 X 1 00
Sealant. Tire (10 oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
