Getting Started
Step 1: Hookup Connecting an antenna/cable TV
system without a VCR
If your cable company requires you to connect a cable
box, make the cormection as follows:
Cable or antenna
Cable
(Rear of TV)
VHF/UHF
For cable box control (Cable Mouse) users
{KV’27V1SI32VlSi32V1€only)
Refer to the supplied Cable Mouse manual on how
to hook up your TV,
Although you can use either an indoor antenna or
outdoor antenna with your TV, we recommend you to
connect an outdoor antenna or a cable TV system to get
better picture quality.
How to connect different types of
cables

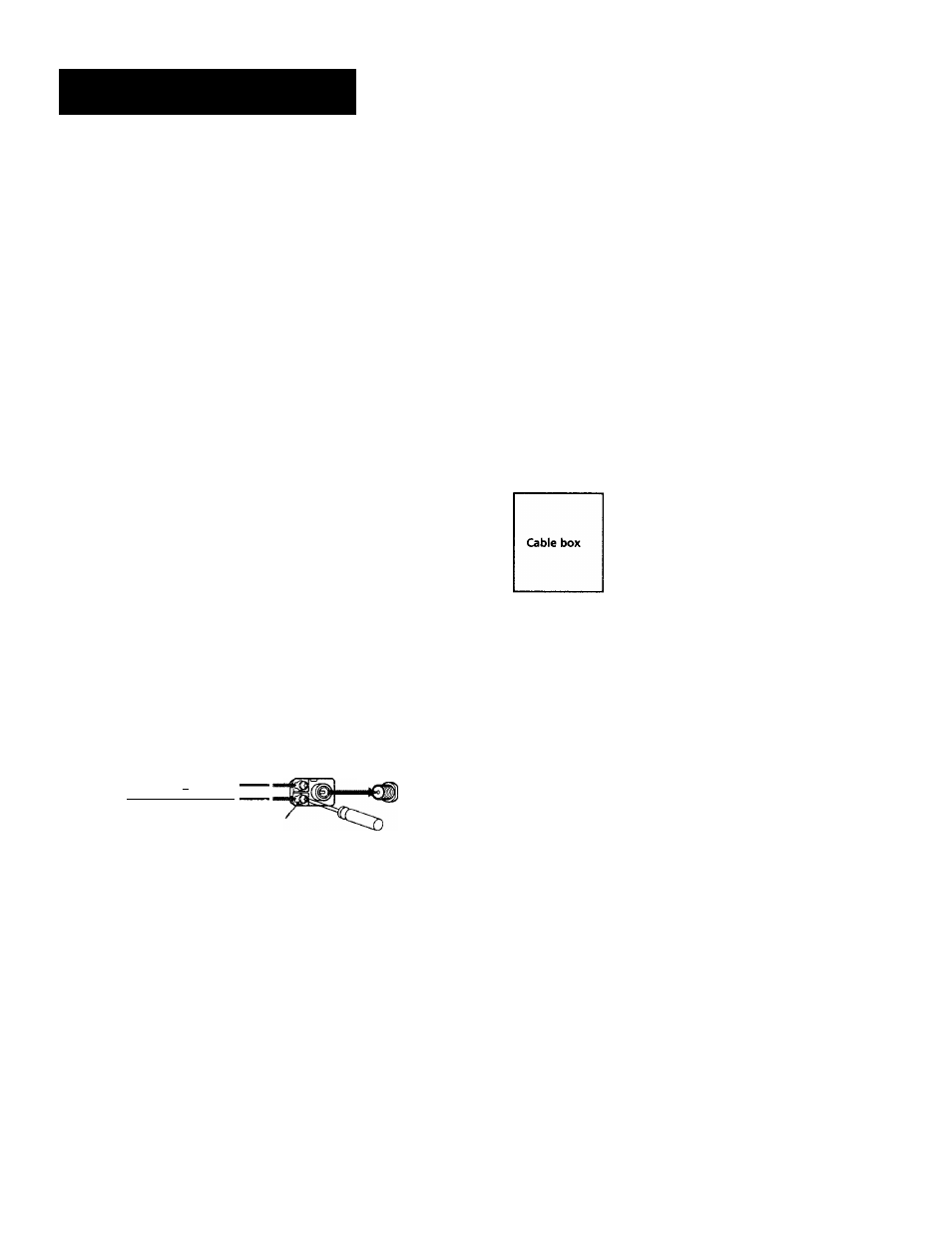

The illustrations below show the examples of
connecting cable to the TV directly.
. VHF only
or
• VHF/UHF
or
• Cable
75-ohm coaxial cable
(Rear of TV)
VHF/UHF
B
• VHF only 300-ohm twin lead cable
or " =r
• UHF only ----------- ■—------C
or
(Rear of TV)
VHF/UHF
> VHF/UHF
Antenna connector
75-ohm coaxial cable
• VHF
and
. UHF
(Rear of TV)
VHF/UHF
EAC-66 U/V mixer
(not supplied)
300-ohm twin lead cable
Notes
• Most VHF/UHF combination antennas have a signal splitter.
Remove the splitter before attaching the appropriate connector.
• If you use the U/V mixer, snow and noise may appear in the
picture when viewing cable TV channels over 37.
Cable box (Rear of TV)
VHF/UHF
Cable
IN OUT
Cable box
Cable box and cable {KV-32V15l32V16l34V1SConl^
(Rear of TV)
AUX
75-ohm coaxial cable
(not supplied)
CATV cable
TO
CONVERTER
VHF/UHF
Pay cable TV systems use scrambled or encoded signals
requiring the cable box* in addition to the normal cable
connection.
* The cable box will be supplied by the cable company.
Note
• You cannot watch the signal through AUX connector as a
window picture.
Cable and antenna (KV-32V15l32V16/34V1SConlyi
(Rear of TV)
CATV cable
AUX
TO
CONVERTER
Antenna cable
VHF/UHF
Note
• Do not connect anything to the TO CONVERTER connector in
this case.
