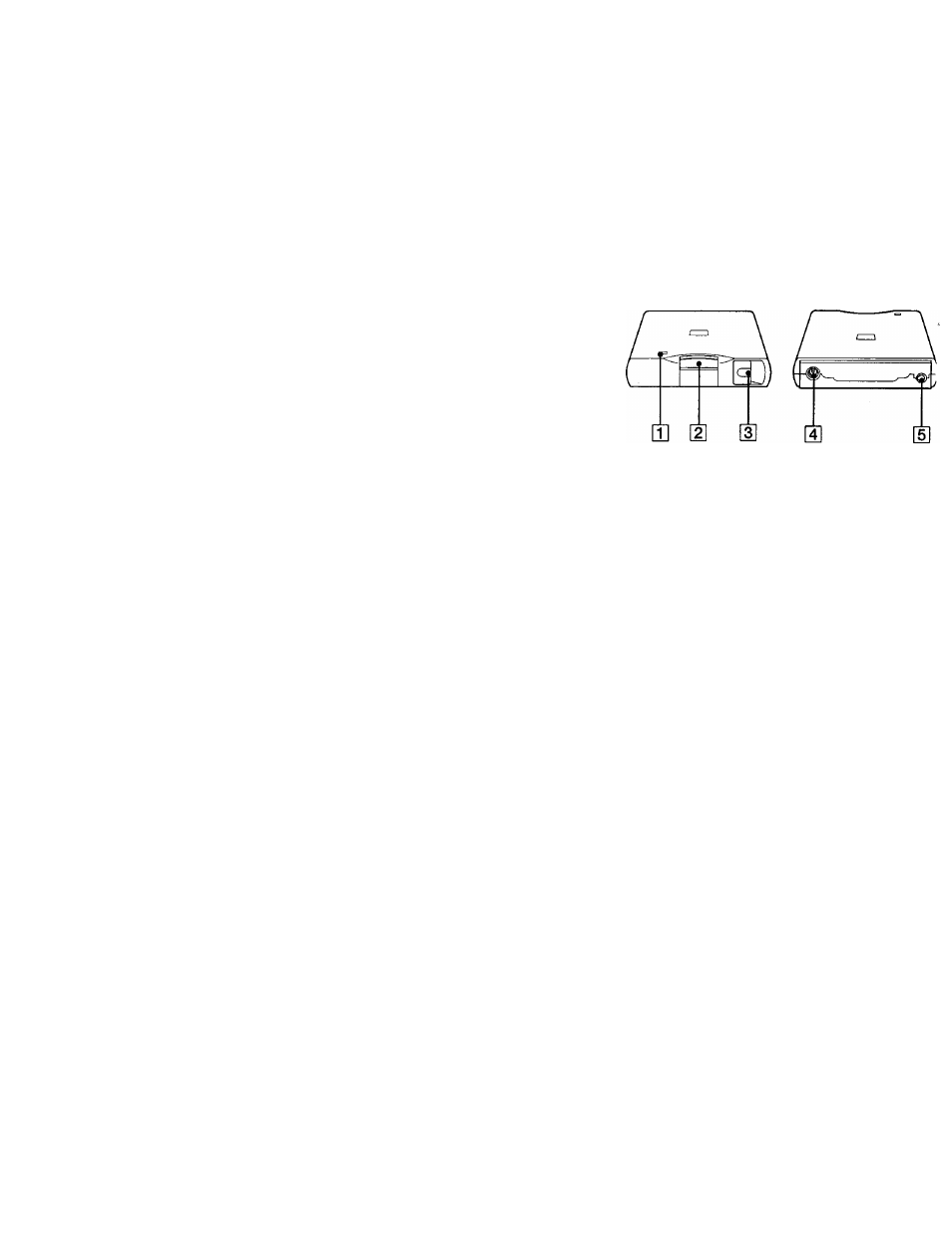

Identifying the parts
Front
Rear
[T] Processing lamp
Indicates the MSAC-SRl operating status. The
lamp lights when writing or reading the
"Memory Stick" data, or when transferring date
between the "Memory Stick" and PC.
[H "Memory Stick" slot
Insert the "Memory Stick".
Eject button
Press to remove the "Memory Stick".
S] DC jack
Connect the supplied AC power adaptor.
[U DIGITAL IN/OUT jack
Connect to the PC using the supplied serial
cable.
