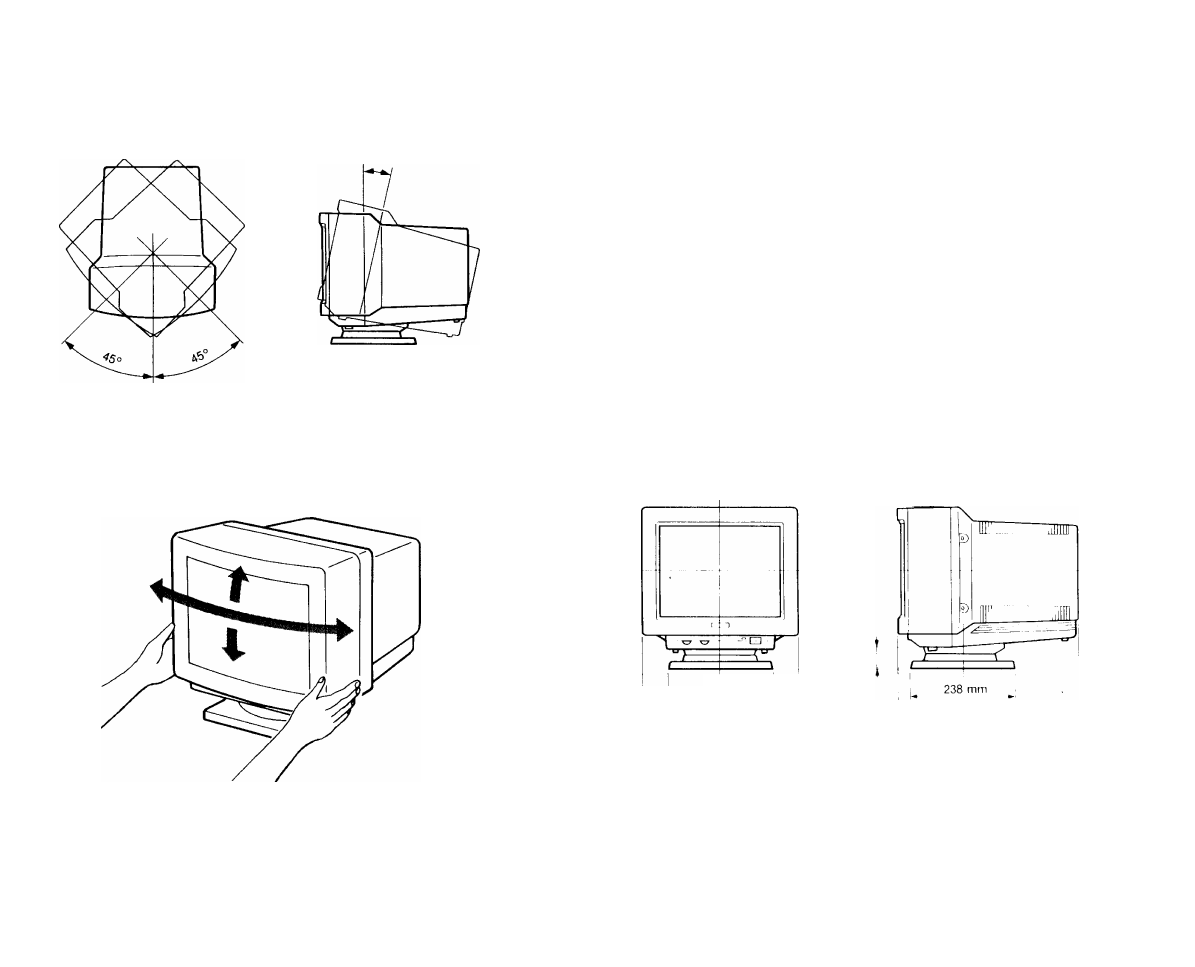

Use of the Tilt-Swivel
With the tilt-swivel, this unit can be adjusted to be viewed at your
desired angle within 90° horizontally and 13° vertically.
13°
To turn the unit horizontally, hold it at its bottom with your both hands
as illustrated below.
8
Specifications
Picture tube
Viewable Pixels
Scanning frequency
Input connector
Video input signal
Sync input
Power requirements
Dimensions
Super Fine Pitch Trinitron color tube
13-inch picture tube measured diagonally
90 degree deflectiori
Anti-glaring dark screen
Useful screen 274mm x 207mm
Phosphor P22
Phosphor pitch 0.26mm
1024 X 768
Vertical sync signal frequency;
50 - 87 Hz
Horizontal sync signal frequency:
28 - 50 kHz
RGB input (D-sub 9-pin) (Analog)
Analog RGB positive
0.714 Vp-p/75Q terminated
TTL level. Polarity free.
Composite sync is acceptable at Pin # 8
Sync on green is acceptable.
120V AC, 50/60 Hz
355(H) X 348(W) X 411(D) mm
(14 X
133/4 X 16V8 Inches)
E
E
m
m
CO
E
E
in
240 mm
348 mm 411 mm
Weight 13.1 kg (29.1 lb)
Including the tilt-swivel
Supplied accessory AC power cord (1)
Optional accessory Monitor cable (9-pin "—^ 15-pin)
SMF-523
Design and specification subject to change without notice
