AUTO SIZE switch
Depending on the microcomputer connected to the display, set
this switch to the appropriate position.
LOCK: For the IBM PS/2 microcomputer using the VGA mode.
When this switch is set to LOCK, the timing is automat
ically adjusted to the VGA mode, and the H SIZE, H SHIFT,
V SIZE and V CENT controls will have no effect.
ADJ:
For other microcomputers having analog RGB output.
When this switch is set to ADJ, adjust the display with the
H SIZE, H SHIFT, V SIZE and V CENT controls.
H SIZE (horizontal size) control
Turn this control to adjust the horizontal size of the display.
8
H SHIFT (horizontal shift) control
Turn this control to adjust the center of the display horizontally.
V SIZE (vertical size) control
Turn this control to adjust the vertical size of the display.
loi V CENT (vertical center) control
Turn this control to adjust the center of the display vertically
6

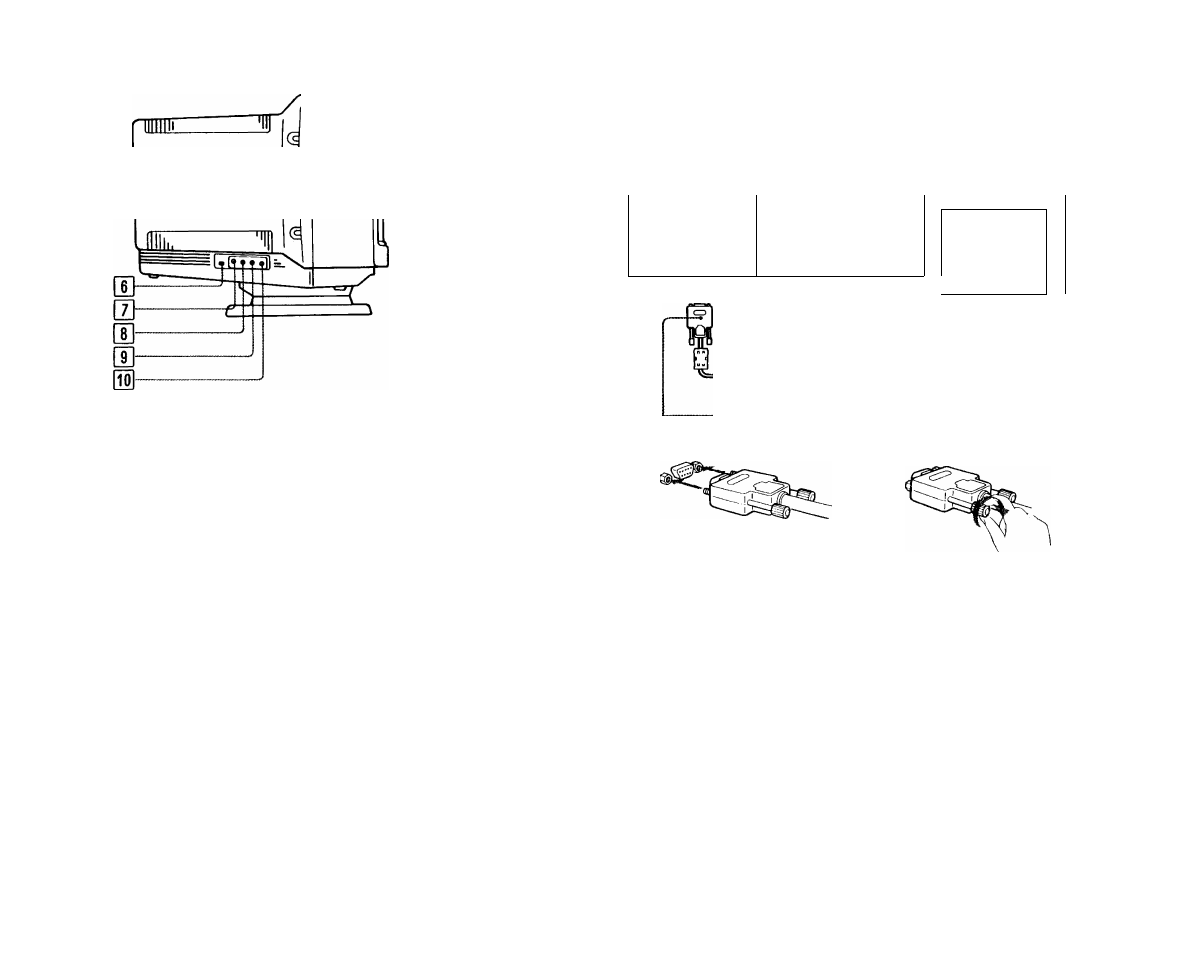

Connections
Connect the power cord and the optional SMF-523 color monitor cable
with a 9-pin D-sub connector.
Be sure to turn the power of the unit off before making the connection.
Rear of the CPD-1304
\
/
€
Microcomputer
AC power
to a cord (supplied)
o
^to RGB IN
♦ to RGB OUT
__ ^
Three-row D-sub 15-pin (male)
n n
U Id
Optional color monitor cable (SMF-523)
1
Align the plug with the receptacle.
2
Plug in and tighten the
screws by a hand.
To disconnect the plug, loosen the screws.
