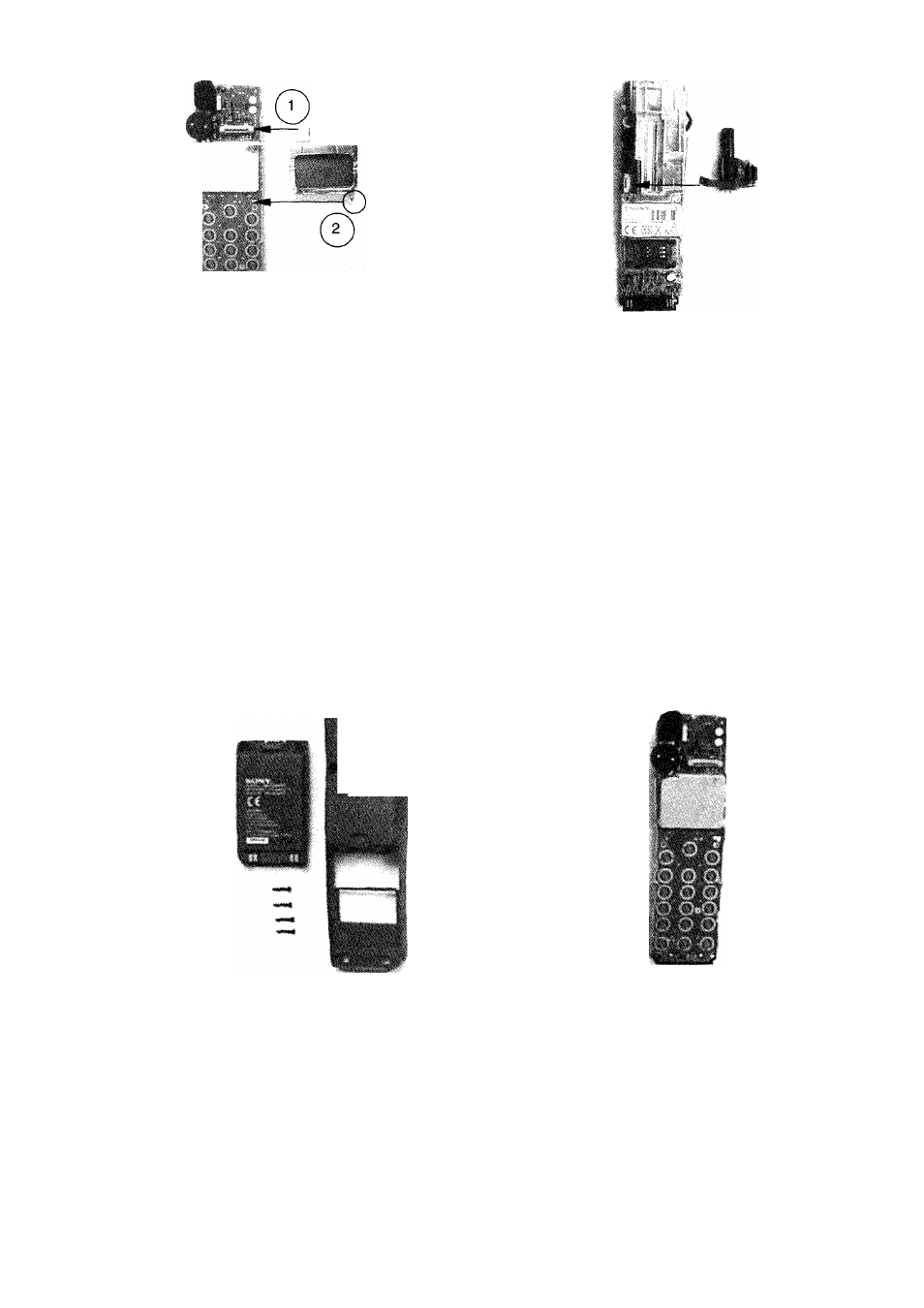

The LCD unit can be lifted out in
the way as follows:
1. disconnect the flex cable
2. unsolder the cushion
3. release the LCD assembly
clips from the main board.
The Vibra Alert unit consisting of
the Vibra motor, Capacitor and
the flex cable, is attached to the
shield case. It is removed by
disconnecting from the 9pin
connector.
IMPORTANT; Do not detach the shield case from the main board
I
i^H
w$.
:1
i.
IB'
O
"X- i
■ ..-.o-'' ’• A. •’
Parts on the main board specified in the parts list can now be reached.
Re-assembly procedure :
To re-assemble the unit, apply the reverse order of the above mention disassembly procedure.
