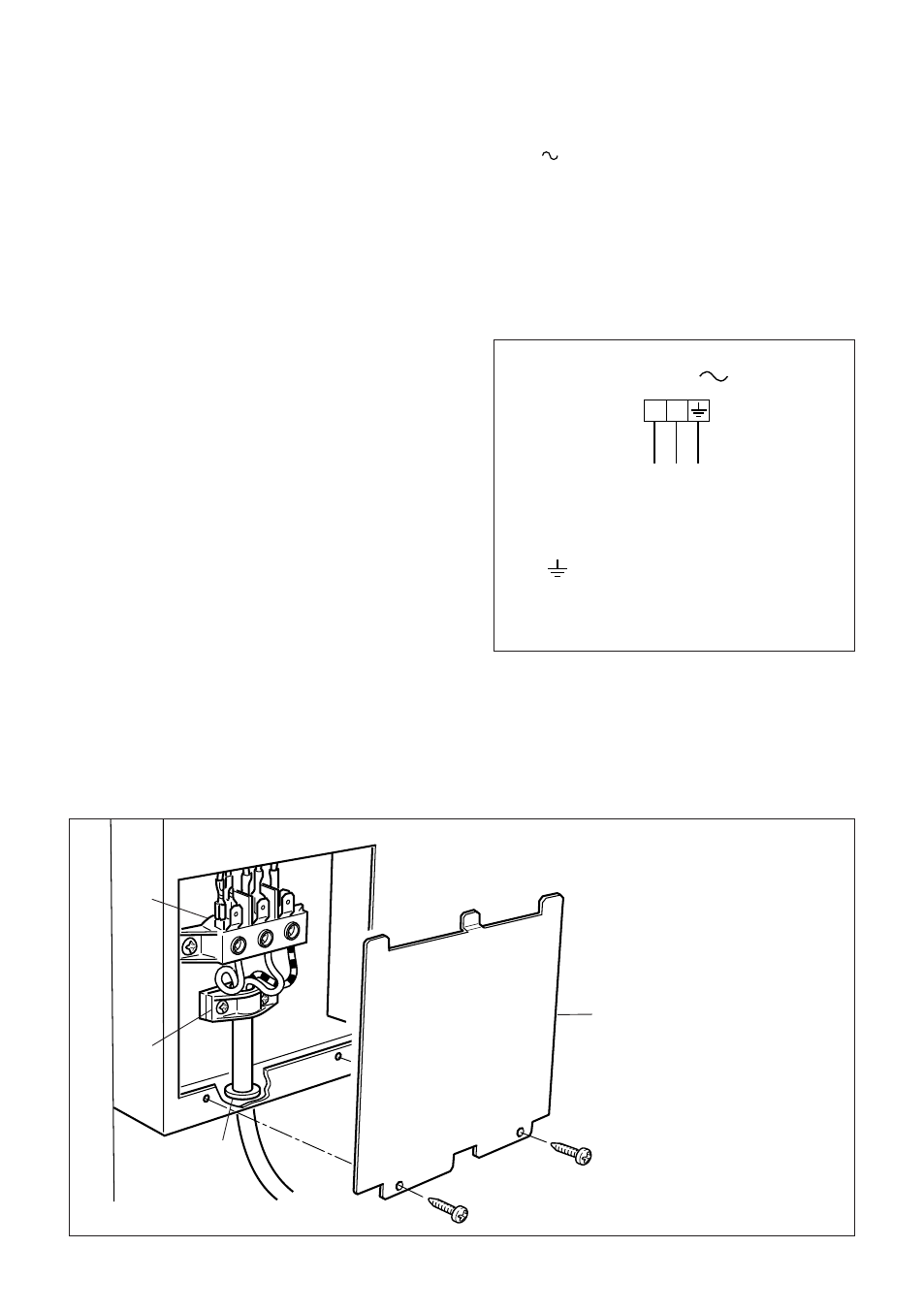

Electrical feeder cable
connection
To connect the feeder cable to the
cooker it is necessary to:
– Remove the 2 screws that hold shield
A behind the cooker.
– Open completely the cable clamp D.
– Insert the feeder cable into the cable
save P. The supply cable must be of a
suitable size for the current require-
ments of the appliance; see the
section “Feeder cable section”.
– Connect the phase and earth cables
to terminal B according to figures 45
and 46.
– Pull the feeder cable and block it with
the cable clamp D.
– Re-mount shield A.
N.B. The earth conductor must be
left about 3 cm longer than the
others.
Fig. 45
Feeder cable section
type H05RRF
230 V 3 x 2,5 mm 2 (**)
(**) – Connection with wall box connection.
P
D
B
A
230 V
PE N L
1
(L
2
)
Fig. 46
PE Earth
N Neutral
L Live
