Replacing the inner pane of
glass
To replace the inner pane of the door
operate as follows:
• Check that the four rubber pads are
in place (D in Fig. 31).
• Check that you are holding the pane
the correct way. You should be able to
read the wording on it as it faces you.

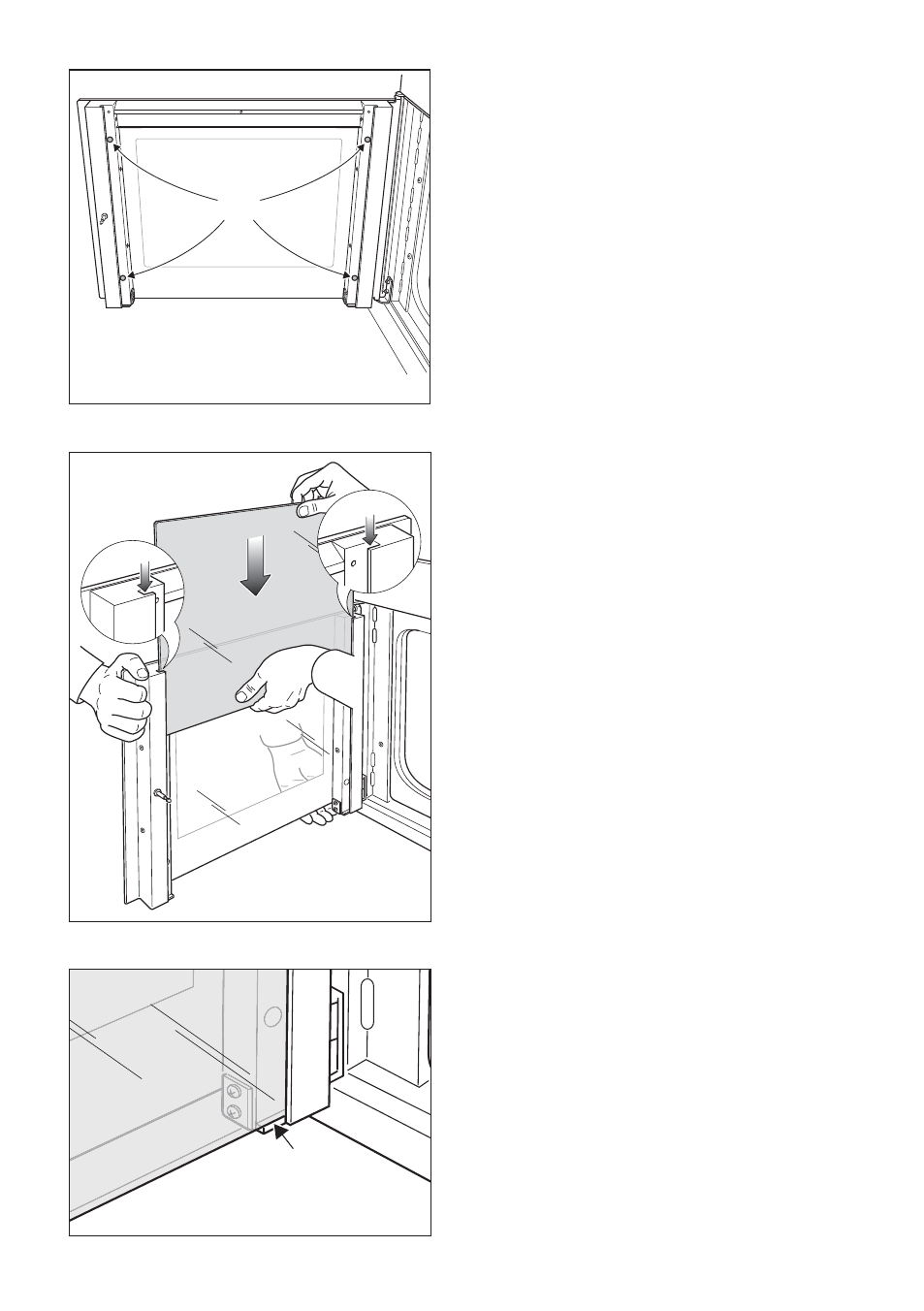

• Whilst one person holds the door still,
a second person should insert the
inner pane in the left E and right F
side guides (fig. 32) and gently let it
slide up to the retainers H (fig. 33).
Forcible replacement of the door glass
may lead to damage of the door
hinges.
