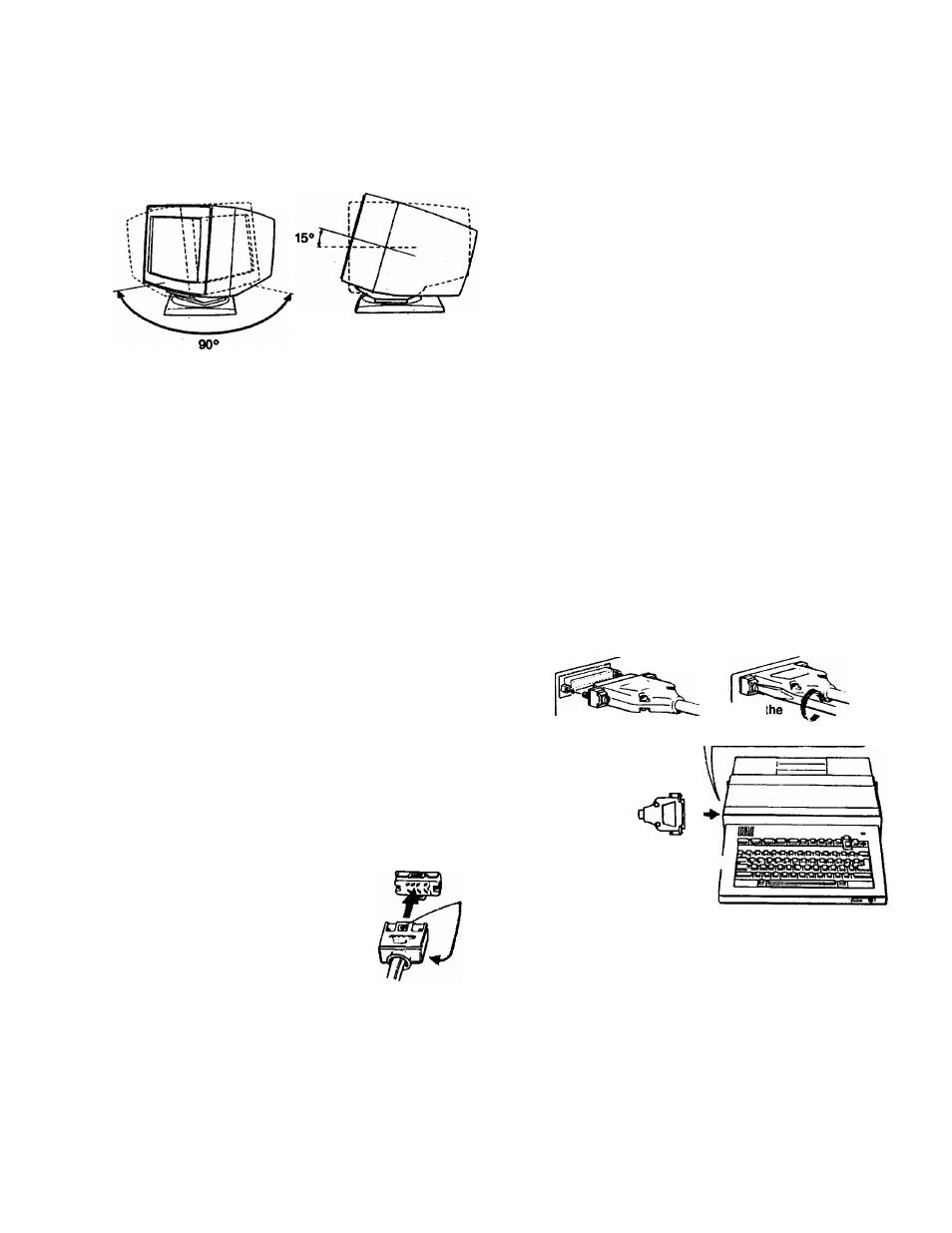

USE OF A DISPLAY STAND

With the optional Sony SU-531 display stand, this unit
can be adjusted to be viewed at your desired angle
within 90® horizontally and 15® vertically.

For details, read the instructions of the display stand.

CONNECTIONS

Be sure to turn the power of the unit off before making
any connections.

CONNECTION WITH THE SONY SMC-70 or SMC-
70G MICROCOMPUTER

Rear of CPD-1201/9000

Set to

"ANALOG”.

Open panel.

to AC
power lnput|[
connector

to wall outlet

AC power cord

(supplied)

O Align the plug

with the receptacle.

OFix the inserted plug

with the screws.

Loosen 1
screws when

pulling the plug out.

SMF-502
color monitor cable
(optional)

J-

to RGB IN

Align and Insert until the plug clicks.

To disconnect the plug,
press the projections
on both sides and pull.

to RGB

MULTI OUT

(25-pin)
