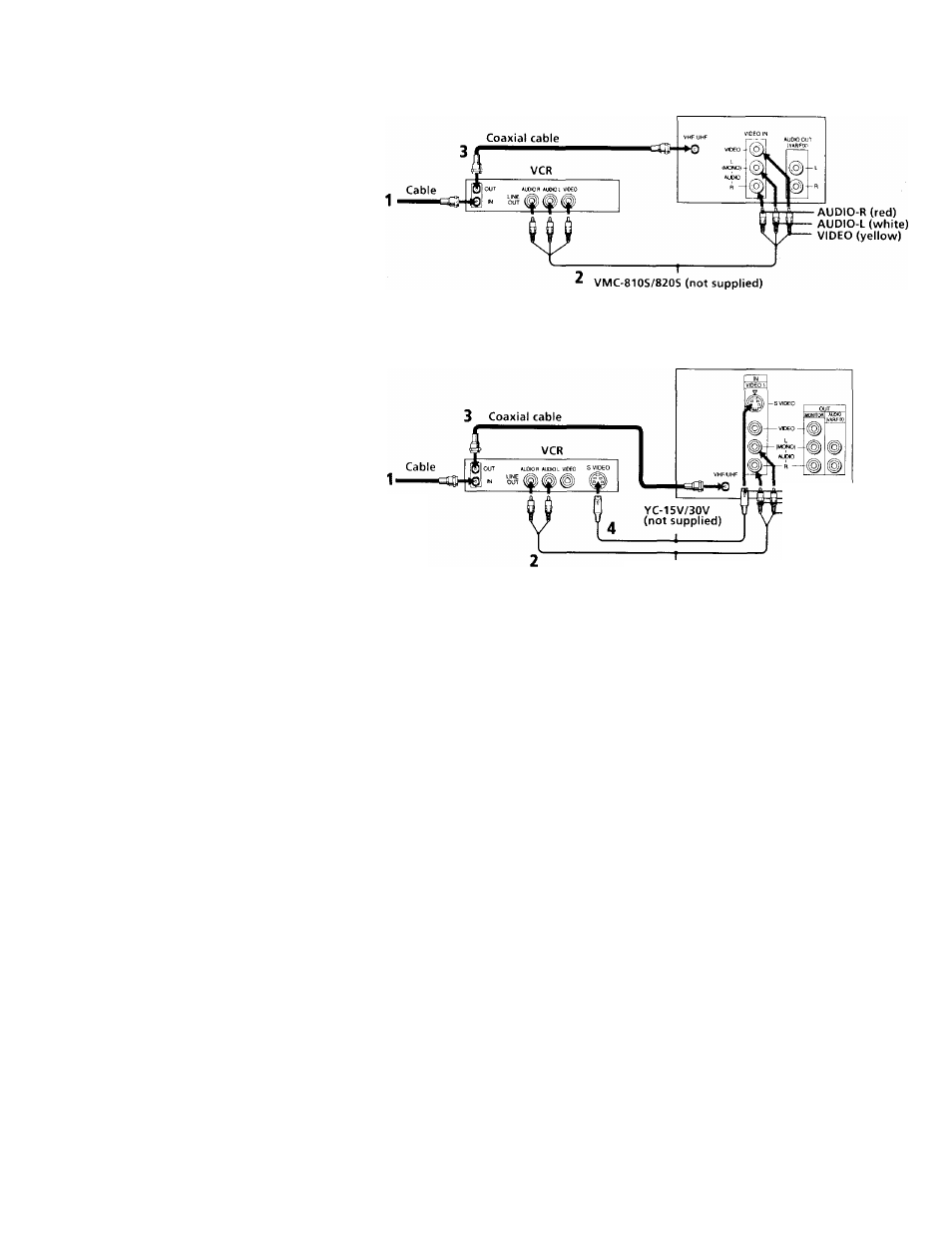

Connecting an antennci/cable TV
system with a VCR
1
Attach the coaxial connector from your
cable or antenna to IN on your VCR.
2
Using AUDIO/VIDEO connectors,
connect AUDIO and VIDEO OUT on your
VCR to AUDIO and VIDEO IN on your TV
(Yellow-VIDEO, White-AUDIO Left, Red-
AUDIO Right).*
3
Using a coaxial connector, connect OUT on
your VCR to VHF/UHF on your TV.
Connecting to an S Video equipped
VCR (for optimum picture quality)
• KV-27V22, 29V22M only
1
Attach the coaxial connector from your
cable or antenna to IN on your VCR.
2
Using AUDIO connectors, connect AUDIO
OUT on your VCR to AUDIO IN on your
TV (White-AUDIO Left, Red-AUDIO Right).*
3
Using a coaxial connector, connect OUT on
your VCR to VHF/UHF on your TV.
4
Using an S VIDEO connector, connect
S VIDEO on your VCR to S VIDEO on
your TV.
• If you are connecting a monaural VCR, connect orJy
the single audio output to the left input on your TVi
Note on DVD Connection:
• For the best picture quality, connect the DVD player directly to the TV.
Refer to your DVD manual for detailed connection information.
Disconnect all power sources before making any connections.
(Rear of TV)
(Rear of TV)
S VIDEO
AUDIO-R (red)
AUDIO-L (white)
RK-74A (not supplied)
