Vermont Castings Madison

30001453

Specifications

Madison, Model 1655 Series

Range of Heat Output ............... 11,300 - 39,700 BTU’s
Maximum heat output ..........................39,700 Btu’s/hr.

1

Area heated ......................................Up to 1600 sq. ft.

2,

EPA emissions ratings, g/h, non-catalytic ...............3.3

3

Fuel size/type ....................................18” (457mm) logs
Loading ...................................................... Front & Side
Chimney connector ..................... 6” (152mm) diameter
Chimney flue size ........................6” (152mm) minimum
Flue exit position ........................................ Top or Rear
Primary air ... Manually set, thermostatically maintained
Ash handling system ..................... Removable ash pan
Glass panel ........................ High-temperature Infra-red
Weight ............................................................... 420lbs.
Width (Left leg - Right leg) ........................ 29” (737mm)
Depth (Front Plate - Flue Collar) .............. 25” (635mm)
Height .......................................................28” (711mm)

1

This value can vary depending on how the stove is op-

erated, the type and moisture content of the fuel used,
as well as the design, construction and climatic location
of your home. Figures shown are based on maximum
fuel consumption obtained under laboratory conditions
and on average efficiencies.

2

These values are based on operation in building code-

conforming homes under typical winter climate condi-
tions in New England. If your home is of nonstandard
construction (e.g., unusually well insulated, not insu-
lated, built under ground, etc.) or if you live in a more
severe or more temperate climate, these figures may
not apply. Since so many variables affect performance,
consult your Vermont Castings authorized dealer to
determine realistic expectations for your home.

3

Under specific conditions used during EPA emissions

testing.

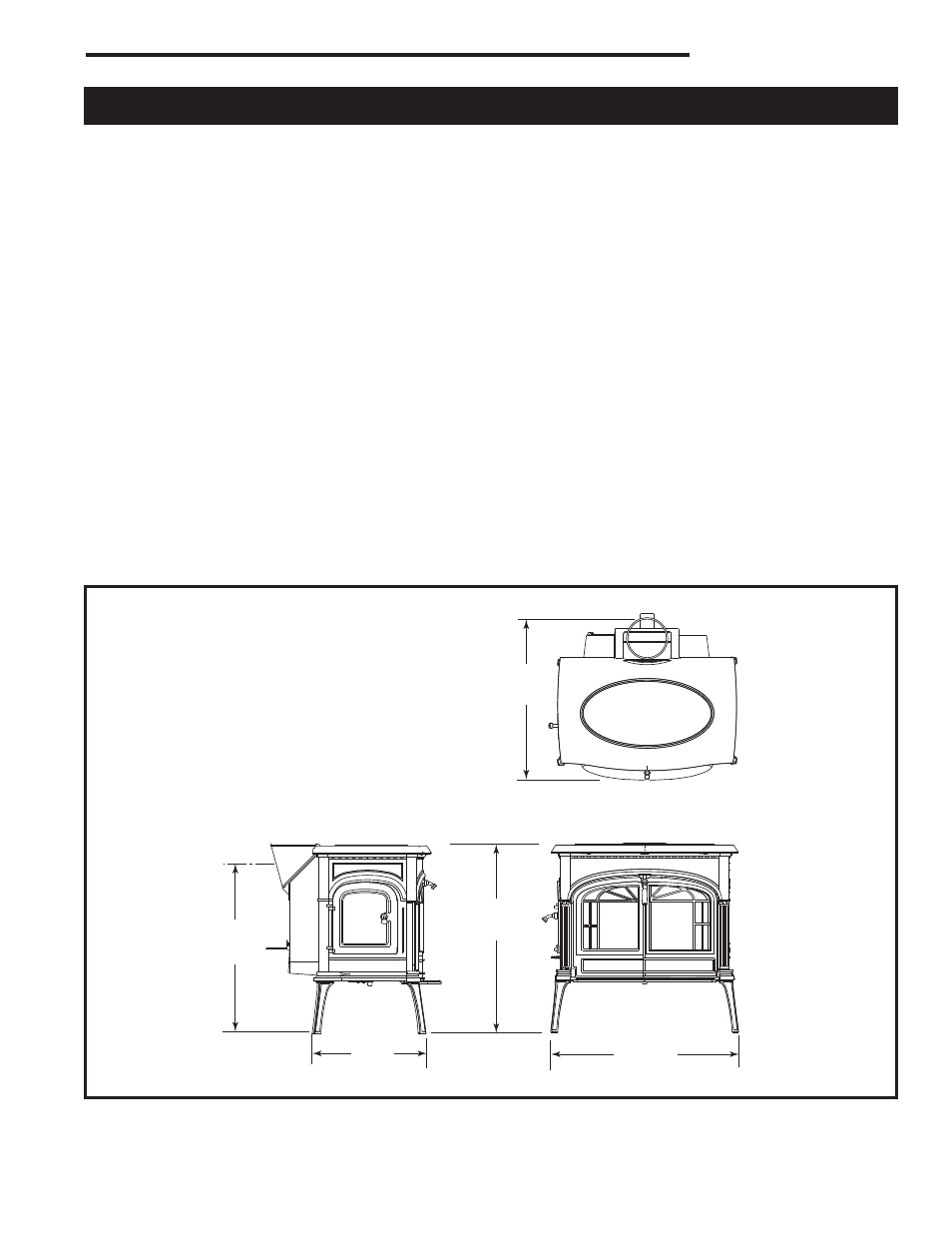

Fig. 1 Madison 1655 dimensions.

Drawings not to scale.

1128

29”

(740mm)

28”

(710mm)

24���”

(630mm)

18”

(470mm)

25"

(635mm)

1128
Madison
dimensions
11/00
