24
Vermont Castings Madison
30001453
45
44
39
37
36
32
28
27
23
15
4
1
35
8
6 2
12
26
42
30
31
20
19
11
22
3
13
9
21
40
29 17 38
14
7
5
18
10
33
1453
Madison 1655
parts
6/01
16
43
34
24
25
41
46
47
1453
CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products
at any time, without notice.

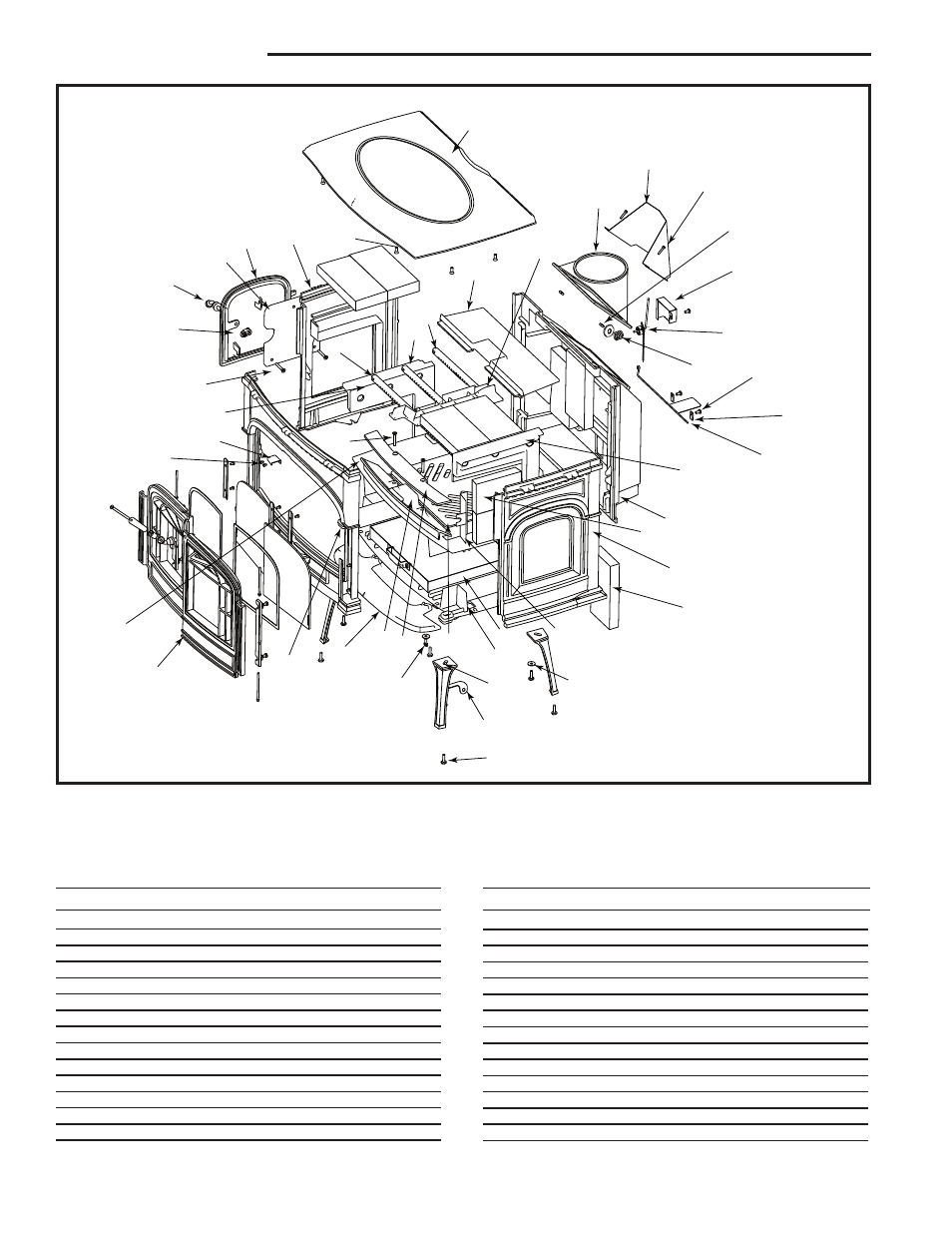

Madison Woodburning Stove
Model 1655, 1656, 1657, 1658, 1659
Item Description Part Number Item Description Part Number
1. Bottom, Outer 30000795
2. End, Left See Chart Pg. 26
3. Back 30000798
4. Secondary Manifold, Left 30000802
5. Front See Chart Pg. 26
6. Load Door See Chart Pg. 26
7. Ashlip See Chart Pg. 26
8. Door End Inner Shield 30000812
9. Firebrick (4) 1601103
10. Bottom, Inner 30000799
11. Primary Air Flap 30000778
12. Fireback 30000813
13. End, Right See Chart Pg. 26
14. Primary Air Manifold 30001491
15. Top See Chart Pg. 26
16. Exhaust Flue See Chart Pg. 26
17. Leg See Chart Pg. 26
18. Door Assy. See Page 25
19. Damper Tab 1601488
20. Pan Hd, PH 1/4-20 x 3/8” 1200993
21. Grate 30001445
22. Secondary Manifold, Right 30000801
23. Brick Support 30000804
24. Secondary Air Tube (Rear) 30001493
25. Secondary Air Tube (Middle) 30001494
26. Secondary Air Tube (Front) 30001495
27. Friction Spring 1201846
28. Leveller Blt, Hx Hd 1/4-20 x 1” Z 1201745
