10

Vermont Castings Madison

30001453

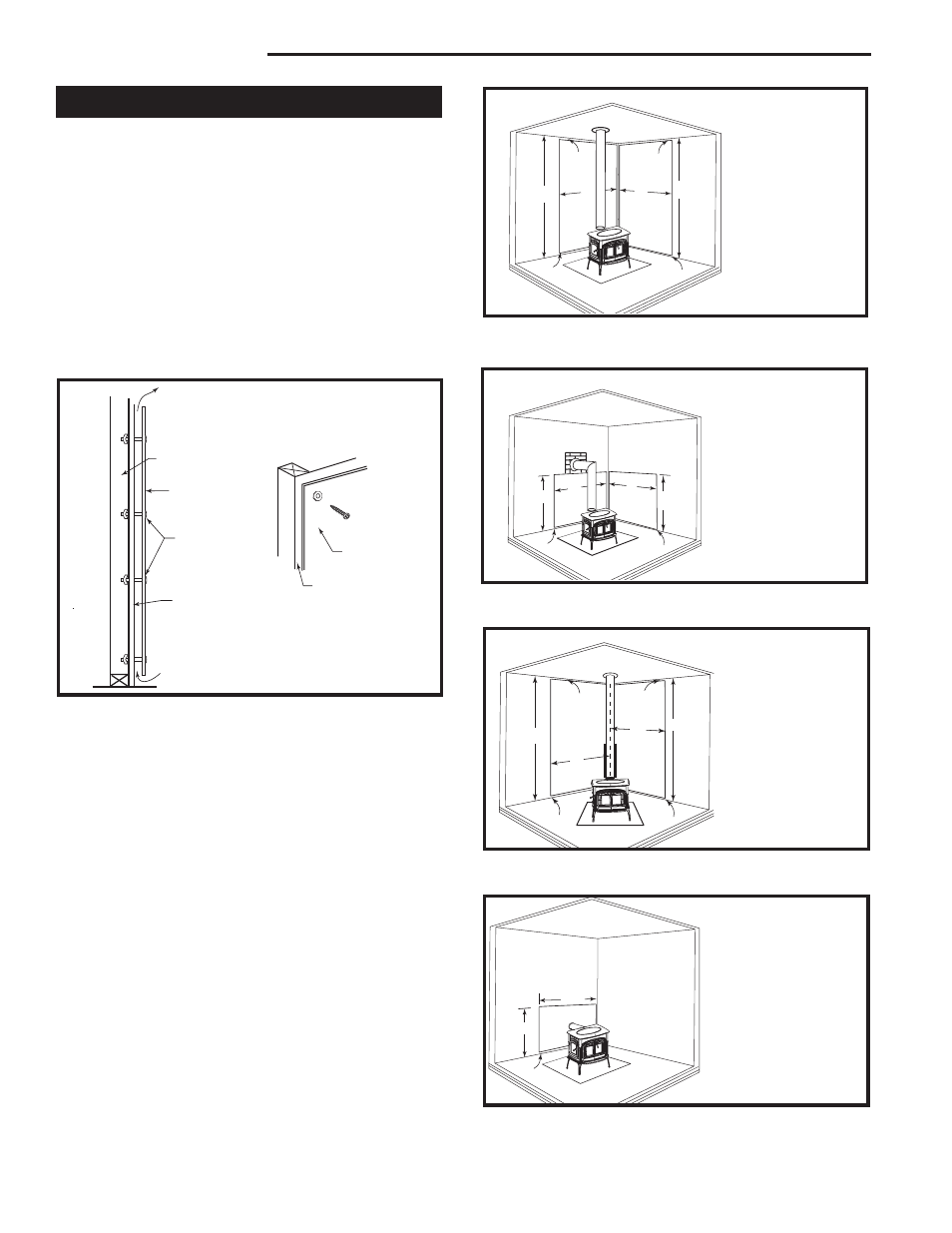

Wall Shields

Wall shields should be constructed of 24 gauge or
heavier sheet metal, or another noncombustible mate-
rial such as 1/2” (13mm) insulation board (Fig. 14) or
common brick “laid on flat,” with the 3¹⁄₂" (89mm) side
down.
Shields must be spaced out from the combustible sur-
face 1" (25mm) on noncombustible spacers. The spac-
ers should not be directly behind the stove or chimney
connector.
Air must be able to flow between the wall and the
shield. At least 50% of the bottom 1" (25mm) of the
shield should be open and the shield must be open at
the top.

The following examples of wall shield construction illus-

trate common designs used to safely achieve reduced

clearances to combustible wall materials.
Parallel installation, vertical chimney connector,

two wall shields. Fig. 15: Reduced clearances for

both rear and side walls. Wall shields may meet at

corner if desired. Shielding for connector is centered

behind connector.
Parallel installation with rear wall pass-through, two

wall shields. Fig. 16: Reduced clearances for both

rear and side walls. Wall shields may meet at corner if

desired. Shielding for connector is centered behind con-

nector. Wall pass-through must comply with codes.
Corner installation, vertical chimney connector, two

wall shields. Fig. 17: Reduced side clearances. Wall

shields MUST meet at corner.
Parallel installation with rear exit, rear wall pass-

through, rear wall shield. Fig. 18: Reduced clear-

ances for rear wall. Shielding for connector is centered

behind connector. Wall pass-through must comply with

codes.

Fig. 15 Parallel installation, vertical chimney connector, two
wall shields.

C

C

C

B

A

B

ST550

Madison

wall shield

11/00

A

C

ST550

A = 48” (1219 mm)

B = Max. - C

C = 1” (25 mm)

Fig. 16 Parallel installation with rear wall pass-through, two
wall shields.

A

B

C

B

A

C

ST551

Madison

Wall shield

BB

11/00

ST551

A = 48” (1219 mm)

B = 48” (1219 mm)

C = 1” (25 mm)

Fig. 17 Corner installation, vertical chimney connector, two
wall shields.

B

B

C

C

A

A

ST552

Madison

Wall shield

cc

11/00

C

C

ST552

A = 48” (1219 mm)

B = Max. - C

C = 1” (25 mm)

C

A

B

ST564Madison

wall shield

11/00

A = 48” (1219 mm)

B = 48” (1219 mm)

C = 1” (25 mm)

ST564

Fig. 18 Parallel installation, rear wall pass through, rear wall

shield.

ST248a

wall shield construction

12/14/99 djt

Fig. 14 Approved Wall shield construction

Air flow

Wall shield

Air flow

Stud wall
framing

Noncombustible
spacers and
fasteners

Drywall

Metal Spacer

Shield

ST248a
