SETTING UP THE GROUND SPEED
CONTROL LEVERS
1. Loosen (do not remove) the hardware securing the
ground speed control levers to the lever bases (see
Figure 3).
2. Raise the levers, aligning the upper hole in each lever
with the upper slotted hole in the lever base.
5/16-18
x 1-3/4
5/16-18
15-17 ft-lbs
20-23 Nm

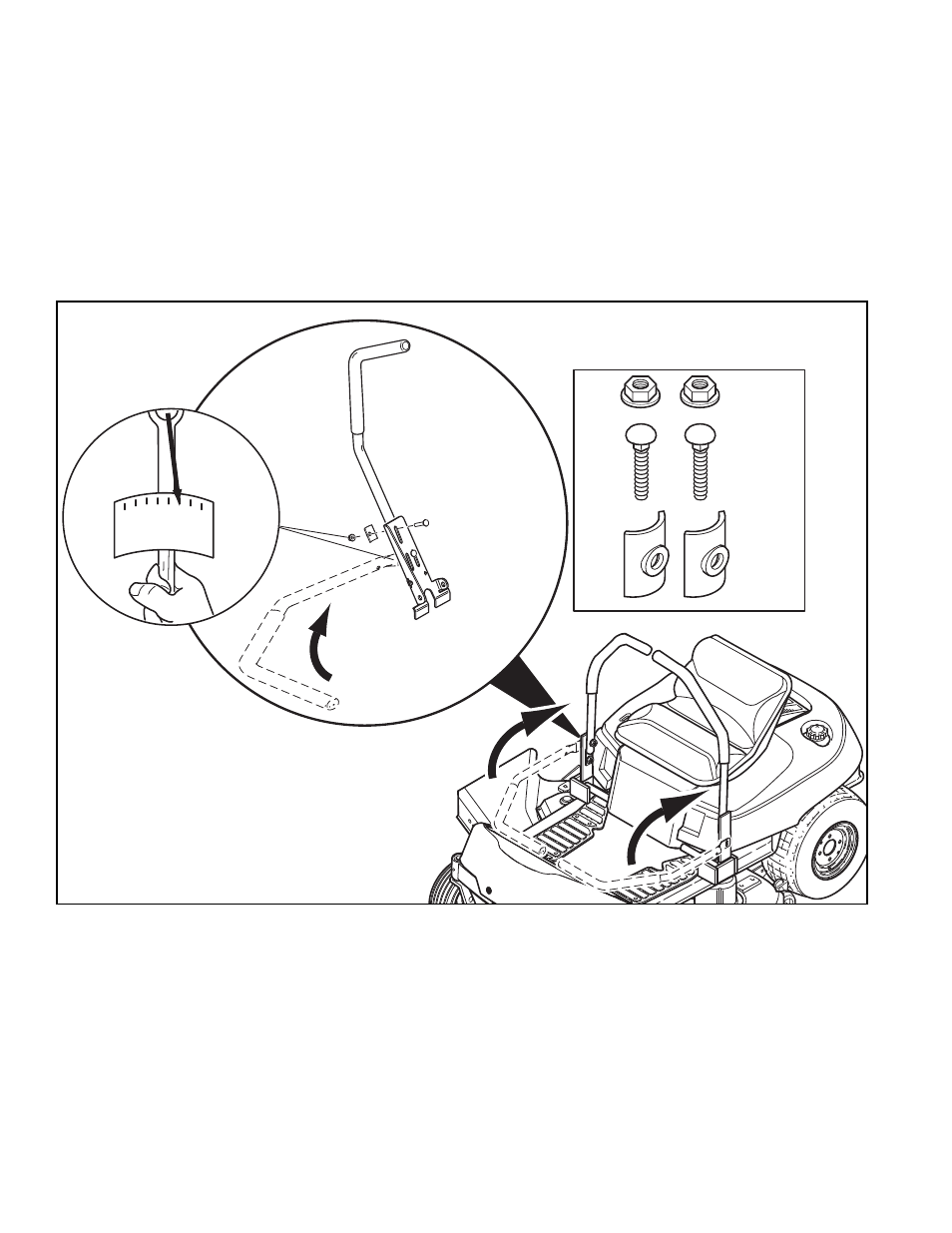

Figure 3. Setting Up the Ground Speed Control Levers
3. Install the hardware as shown in Figure 3. Tighten to
15-17 ft-lbs (20-23 Nm).
NOTE: Ground speed control levers must be adjusted
prior to use. Refer to the “Ground Speed Control
Adjustment” section.
12
