RS-16, RS-16 DC

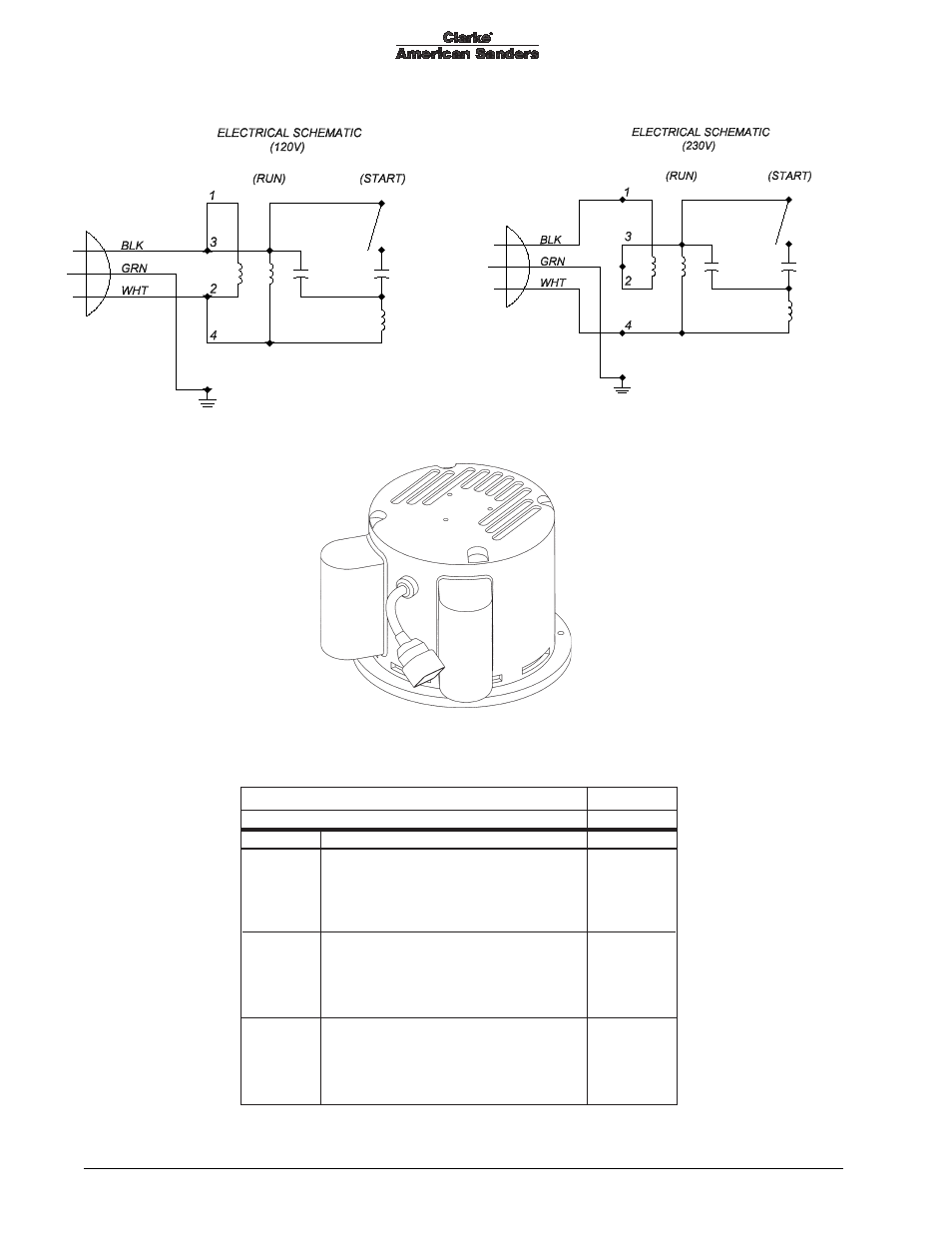

Motor Assembly Drawing, Parts List and Schematics 1/06
VOLTS / Hz
120 / 60
MOTOR PART NUMBER
40763A
Part No.
Description
Qty
53193A
Rotor, 1.5HP, 60Hz
1
40694A
Capacitor, Start
1
53191A
Capacitor, Run
1
53189A
Stator, 1.5HP, 60Hz
1
53360A
Cover, Capacitor
2
40699A
Cover, Wiring
2
53190A
Switch, Start
2
53195A
Centrifugal 4-Pole 60Hz
2
70787A
Label, Connection
2
85303A
Screw, 8-32 x 3/8
11
902550
Bearing, Ball-6203
1
53848A
Plate, Mounting
1
80141A
Screw, 10-32 x 1
6
911177
Wire Nut - Orange
2
40698A
Endbell
1
RUN
START
-30-
