Vermont Casting Gas Grill - Manual (Page 15)

Burner Control Valve
Valve
Orifice
Burner
Tube
15

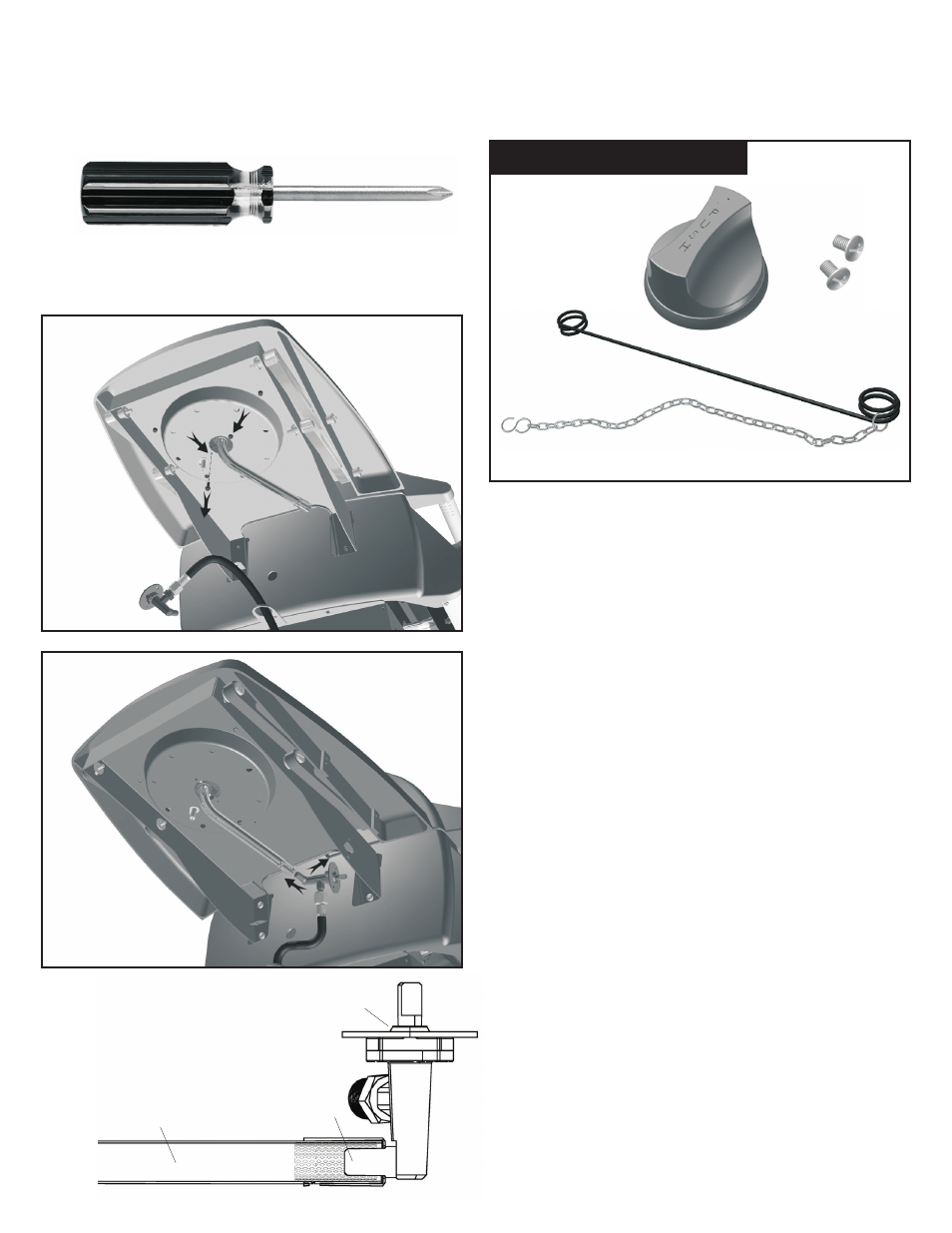

Assembly Step 6 - Mount the Side Burner Knob
Tools Needed:
USE HARDWARE PACK E :
Burner
Control
Knob
Match Holder
and Chain
Phillips head screwdriver
1.
2.
3.
4.
5.
Working underneath the Side Burner
Assembly, locate and remove the two bolts
that are holding the brass burner to the side
table. This will allow the burner tube to
hang and move freely.
Locate the burner control valve attached to
the end of the gas hose hanging from the
side of the Grill Head Assembly.
Insert the orifice of the control valve into the
end of the burner tube.
Route the control valve stem through the
mounting hole in the side table.
Re-insert and securely tighten the burner
mounting bolts that were removed in step 1
above.
M4x0.7x8mm
Bolt (1)
M5x0.7x8mm
Bolt (1)
IMPORTANT: The valve orifice must be
seated inside the burner tube for safe
operation. An improperly seated valve-to-
burner tube connection may result in an
external fire causing property damage or
serious personal injury.
