Vermont Casting Gas Grill - Manual (Page 11)

3.
4.
11

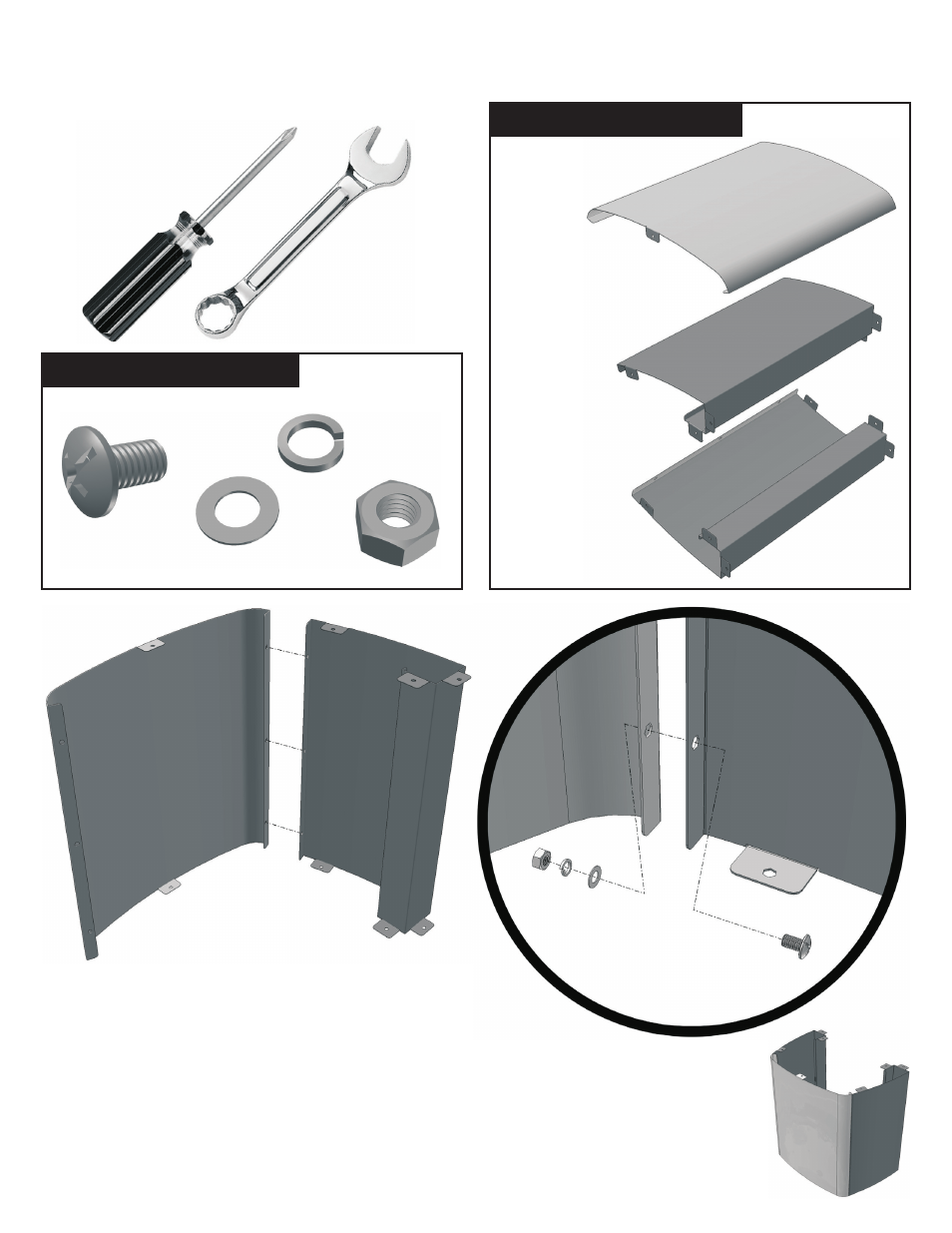

Assembly Step 2 - Assemble the Pillar Panels
Firmly tighten the nuts and
bolts.
Repeat steps 1 through 3
for the second Side Pillar
Panel.
Tools Needed:
USE HARDWARE PACK A :
10mm
wrench
LOCATE THESE PARTS:
Side Pillar
Panel (2)
Front Pillar
Panel (1)
M6x1x10mm
Bolt (6)
Phillips head
screwdriver
Flat
Washer (6)
Lock
Washer (6)
M6x1
Nut (6)
1.
2.
Align one edge of the Front Pillar Panel
with the corresponding edge of one Side
Pillar Panel as shown.
For each mounting hole, insert a bolt and
thread on a washer, lock washer, and nut
as shown.
NOTE: For easier assembly, first loosely
insert ALL of the nuts and bolts before
tightening them.
Assembled Pillar:
