Instruction Manual – D-160 Disperser&Homogenizer 7/ 9
1= 8,000 rpm 2= 12,000 rpm 3= 15,000 rpm
4= 18,000 rpm 5= 22,000 rpm 6= 30,000 rpm
______________________________________________________________________

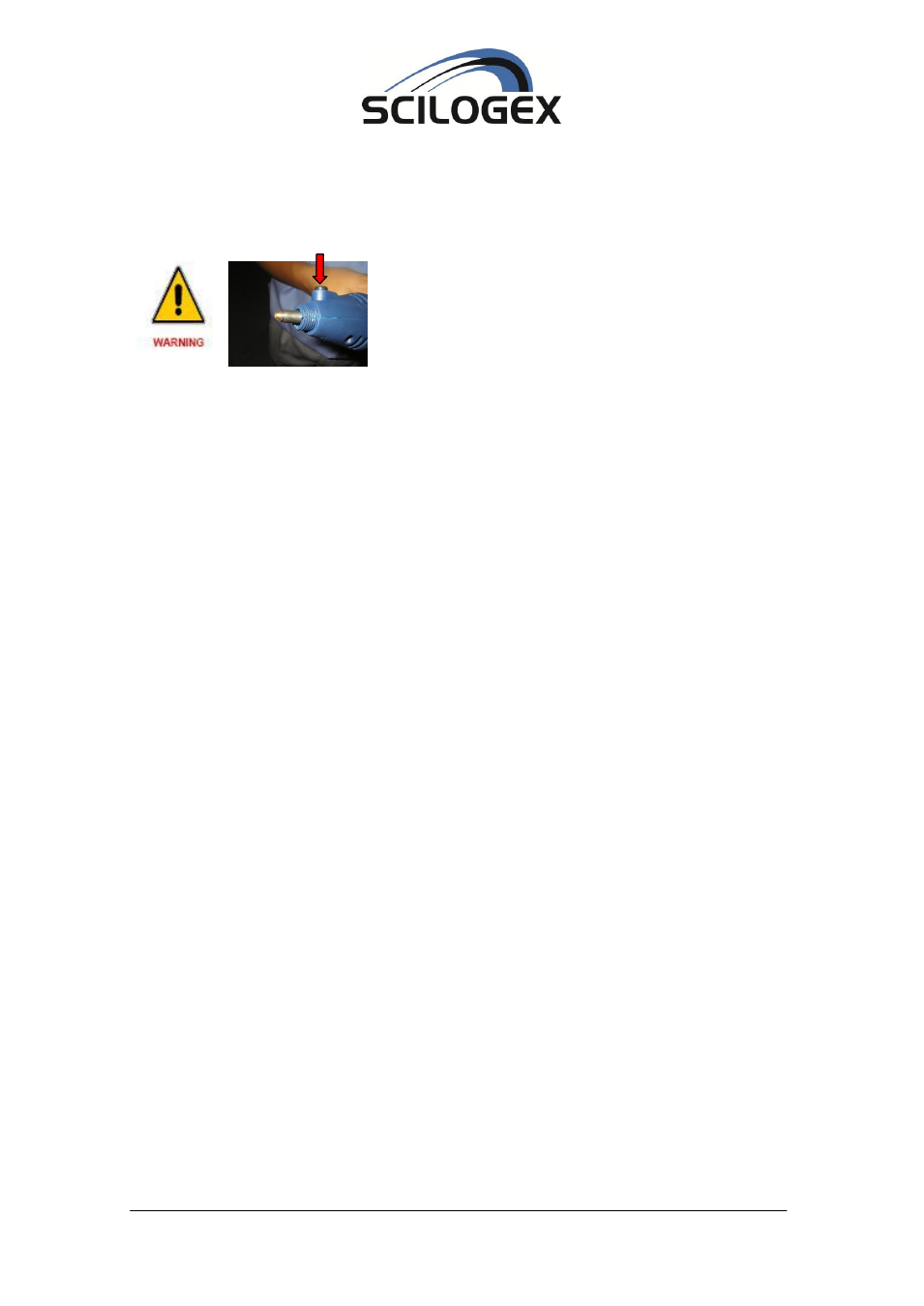

For an emergency stop, press the large button on the
drive.
______________________________________________________________________
Maintenance of Motor
The motor does not need any maintenance and there are no parts inside which can be
repaired by the user. The only parts which are excluded from this are the carbon brushes.
Please contact or your authorized supplier for replacement and use original spare parts
only. The carbon brushes can be replaced after disconnecting the power supply!
Stand
The D-160 homogenizer is designed as a hand held homogenizer. However, it can also
be delivered with a small H-400 stand for more comfortable usage and storage of the
unit.
Assembly of H-400 stand
This H stand consisting of a base, a rod and a holding clamp for the D 130 homogenizer.
Screw the rods to the aluminum bottom piece to fix the “H” on the bottom. Screw the
two shorter pieces at the back (50mm) and the longer pieces at the front of the base to
get the “H”. Then attach the rod onto the middle piece. The rod consists of two different
parts which need to be connected to safe space during shipment. The fix the aluminum
clamp onto the desired height and insert the motor. Tighten the screw lightly.
Specifications and Technical Data
Voltage 230V 50/60Hz, 110V 50/60Hz
Power input/output 160/110 Watt
Rotor speed between 6.3 to 14 m/sec
Weight 0.6 kg
Sound Pressure Level 54 dB(A)
Speed Setting Infinitely Variable
Permissible Ambient Temperature 5°C - 40°C
