MINIMUM ATTIC INTAKE AREA REQUIRED
Sufficient intake area must be provided in the attic to assure that the fan will not be overloaded and that
it will deliver its rated CFM. This can be accomplished with some type of attic venting such as gable
louvers or under-eave vents. The table below shows the minimum intake area needed for each fan
installed.
MINIMUM ATTIC INTAKE AREA REQUIRED
(All Areas Are In Square Feet)
UNRESTRICTED* WOOD LOUVER* METAL LOUVER*
OPENING REQD. OPENING REQD. OPENING REQD.
3.0 4.0 3.4
*If openings are covered with 1/2” hardware cloth or large mesh expanded metal increase area by 20%.
Double area if fly screen is used.
SPECIFICATIONS
FAN MOTOR @ 120VAC 60 HZ
SIZERPM HP AMPS WATTS
14” 1550 1/35 2.2 200
* HVI Certified at 0.03” Static Pressure

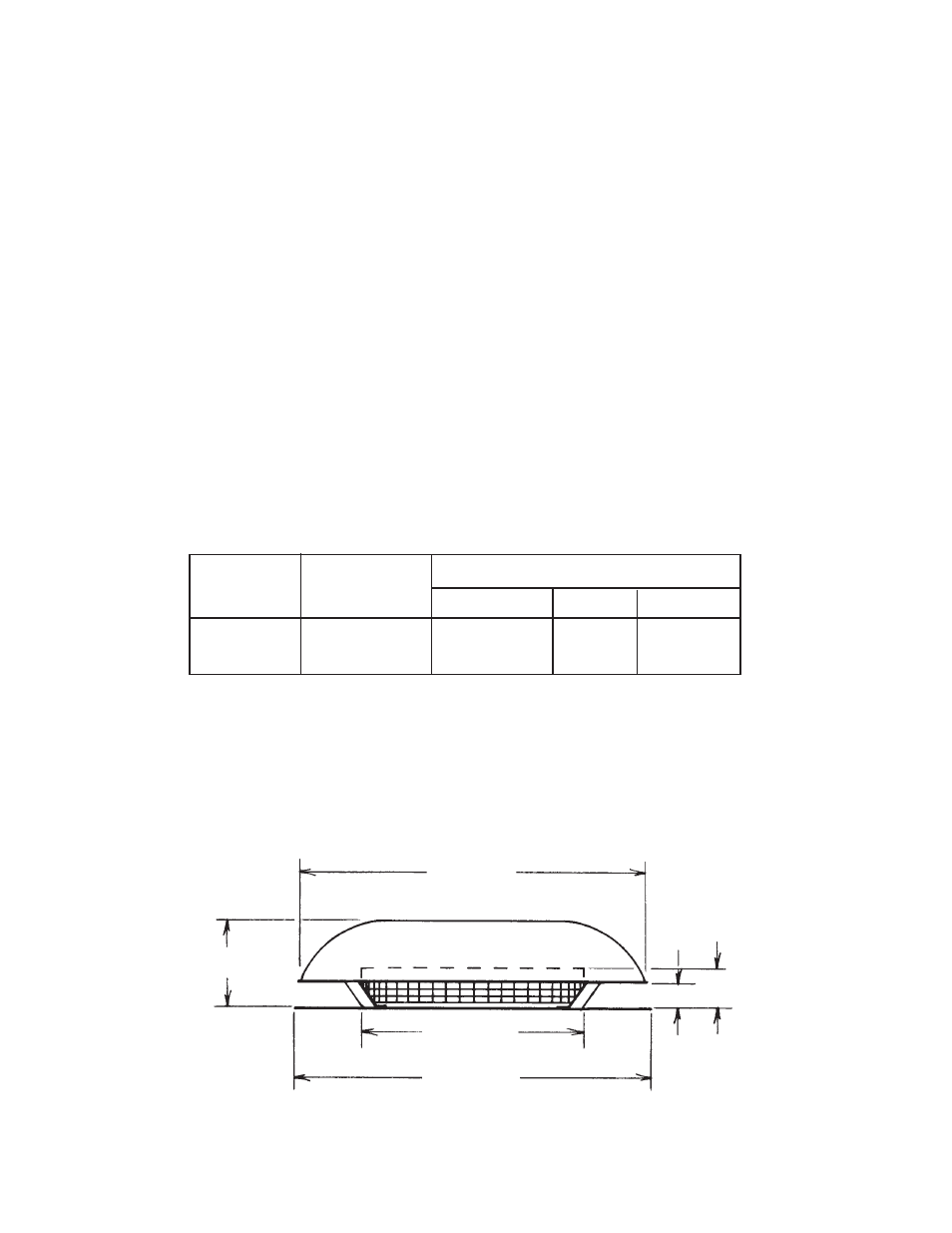

DIMENSIONS
FIG. 4
6 1 ⁄
2
”
2”
14 1 ⁄
2
” DIA.
26”DIA.
23” SQUARE
3” HIGH VENTURI
