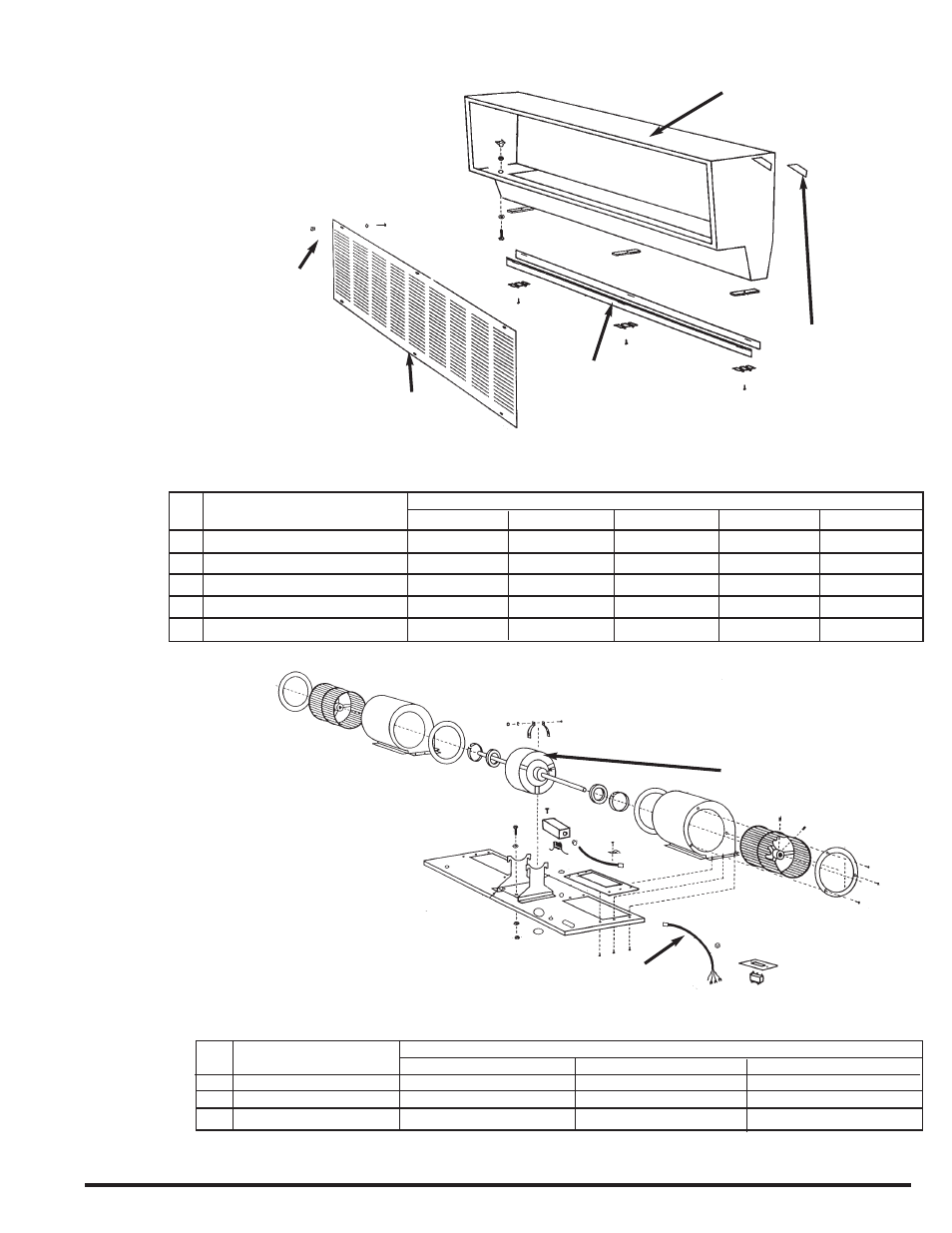

Figure 9 - Replacement Parts Illustration.
Replacement Parts For Air Curtain Cabinets
1.
2
4
5
3
Replacement Parts
For Air Curtain Cabinets
Key Part Numbers for Cabinets (length)
No. Description 36" 38" 42" 48" 60"
1 Cabinet box assembly 1016-0096-000 1016-0096-001 1016-0096-002 1016-0096-003 1016-0096-004
2 Cabinet Intake Grille 1016-0093-000 1016-0093-001 1016-0093-002 1016-0093-003 1016-0093-004
3 Cabinet Intake grill knurled nut AP0002 AP0002 AP0002 AP0002 AP0002
4 Cabinet louver kit ACL36 ACL38 ACL42 ACL48 ACL60
5 Electric box cover 1402-2364-001 1402-2364-001 1402-2364-001 1402-2364-001 1402-2364-001
7
Replacement Parts List For Air Curtain Cabinets
Key Part Numbers for Motor Blower Assemblies
No. Description 1HP 1-1/2HP 3 HP
6 Motor/Blower Assembly ACMB300 ACMB305 ACMB330
7 Cord, female connector ACWS616 ACWS614 ACWS314
8 Motor Assembly ACM3075 ACM3150 ACM3300
Replacement Parts
For Motor Blower Assemblies (6)
Figure 9 - Replacement
Parts Illustration.
8
