QHYCCD QHY8PRO - Manual (Page 4)

5 6
100-240V TO 12V
AC adapter
1
Full Air proof box with
electric heating
silicon gel
2

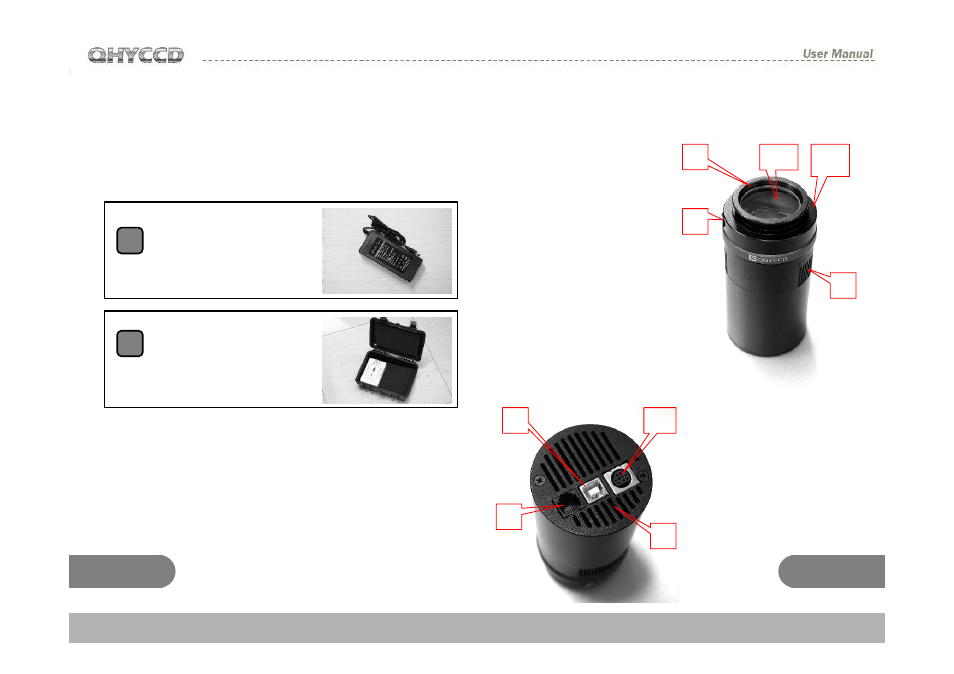

Camera Interface
1：Camera Front Part
2：CCD Chamber Air socket
3：M42/0.75 Inner screw
(Depth:3mm)
4：IR block optic window
5: Heat Sink Exhaust
1
2
3 4
8
7 6
9
6: 9pin power socket
7:USB socket
8:Guiding/Control
signal socket RJ11
9:Heat sink air intake
5
Accessories Sold Separately
(Contact your dealer for pricing and ordering
information)
