BENDING INSTRUCTIONS

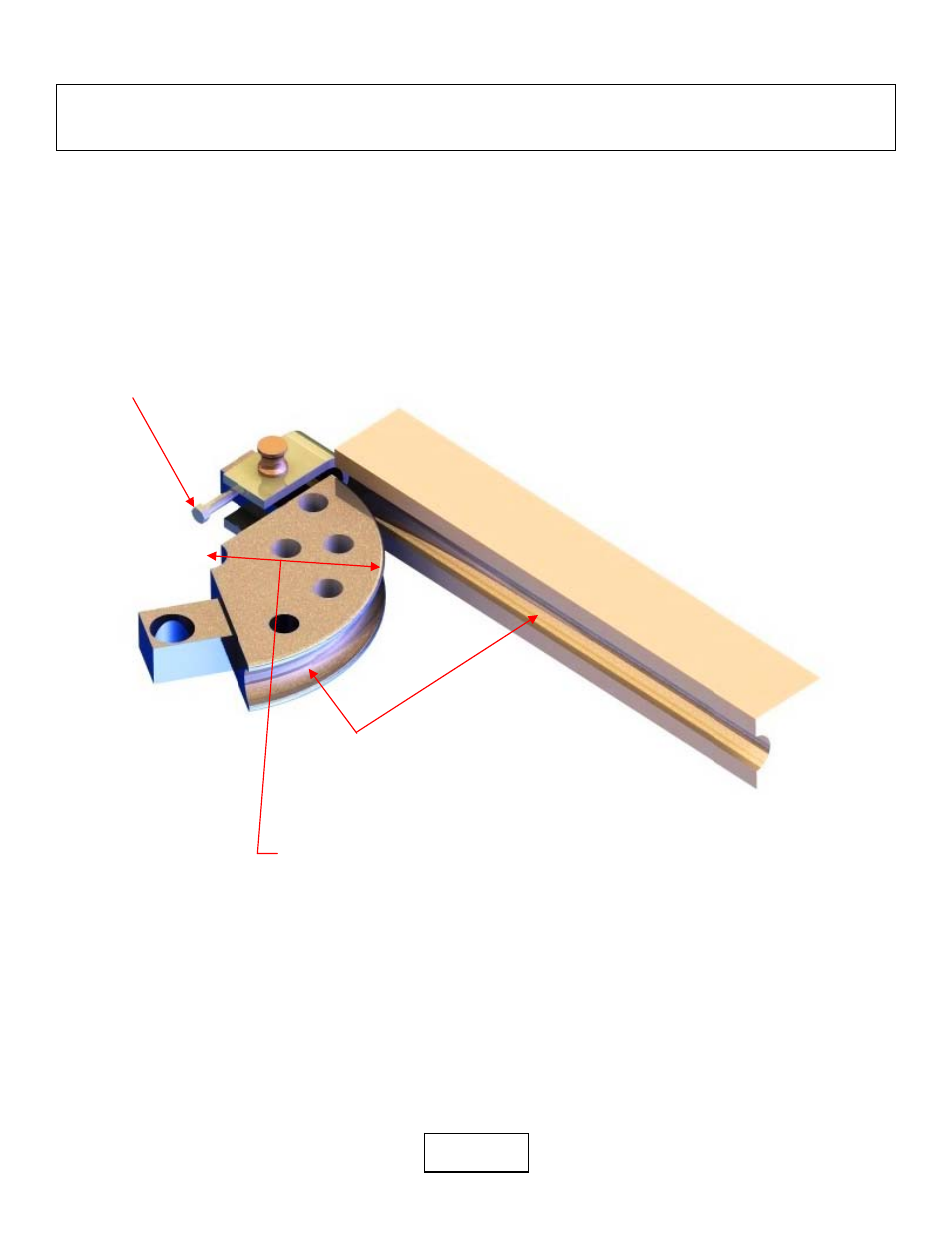

TIGHTEN BOLT SO TUBE
WILL NOT SLIP
NOTE:
TO CALCULATE LENGTH OF TUBING USED IN A BEND,
MULTIPLY RADIUS OF BEND X 6.28 X DEGREE OF BEND,
THEN DIVIDE BY 360.
ABSOLUTELY NO GREASE IN RADIUS.
AT ALL TIMES TUBING, DIE RADIUS, AND
BAR RADIUS MUST BE CLEAN AND GREASE FREE.
TO MEASURE RADIUS:
START AT IMAGINARY CENTER OF CUTOUT, MEASURE TO EDGE OF DIE.
NOTE: ALL ROUND TUBE RADIUS MEASUREMENTS ARE “CENTER LINE RADIUS”
EXAMPLE:
8 INCH RADIUS, 90 DEGREE BEND WOULD BE;
8 x 6.28 x 90/360 = 12.56
