HMP-200 BENDER
ASSEMBLY INSTRUCTIONS
813-986-9000 Pro-Tools

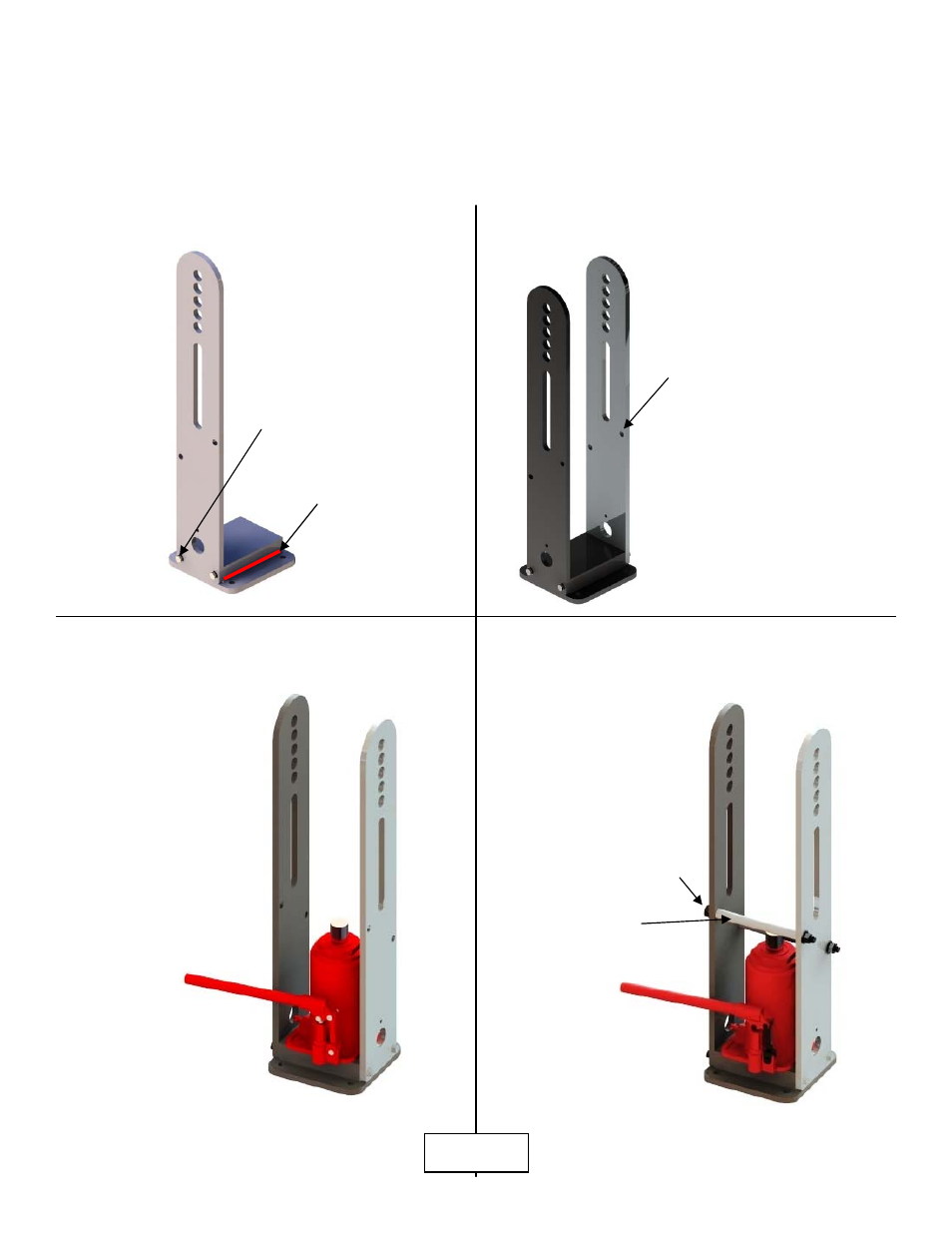

STEP 1 STEP 2
STEP 3 STEP 4
BOLT LEFT SIDE PLATE
TO BASE AS SHOWN WITH
1/2”x20 HEX BOLT & FLAT
WASHER
WELD BASE TO PLATE
ON EACH SIDE
BOLT RIGHT SIDE OF PLATE
TO BASE AS SHOWN WITH
1/2-20 HEX BOLTS * WASHERS
NOTE:
OFFSET HOLE PATTERN
PLACE JACK ASSEMBLY
ON BLOCK, POSITION AS
SHOWN
INSTALL SPACER SLEEVES
AS SHOWN BELOW
1/2 -20 x 7 HEX BOLTS,
NUTS, & FLAT WASHER
SPACER SLEEVE
PAGE 2
