HMP-200 BENDER

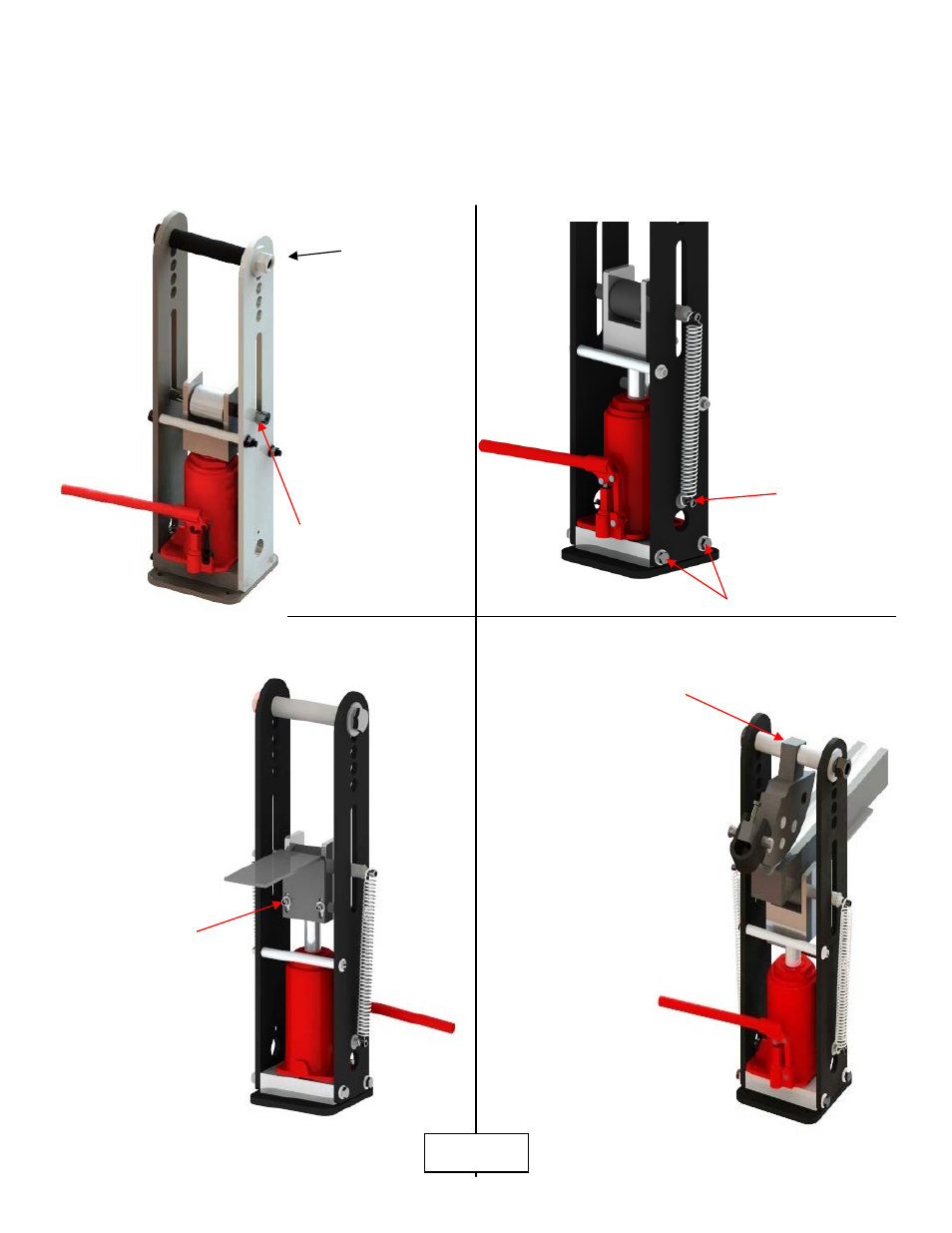

ASEMBLY INSTRUCTIONS
813-986-9000 Pro-Tools
1” BOLT, NUT,
& WASHERS
A. SCREW THREADED
ROD (IN TOP OF JACK)
UP APPROXIMATELY 2 1/4”
B.
PLACE ROLLER
BLOCK ON TOP OF ROD.
C.
INSERT 1” SHAFT
THROUGH SIDE PLATES,
ROLLER, & BLOCK.
D.
INSTALL DIE WRIST
PIN SLEEVE, 1” BOLT, NUT,
& WASHERS.
1” SHAFT
IT WILL BE NECESSARY
TO WORK JACK UP
& DOWN TO MAKE
SURE THE ALIGNMENT
ON THE SIDE PLATES
IS CORRECT. IF
NECESSARY, LOOSEN
BOLTS & ADJUST UNTIL
JACK MOVES UP & DOWN
FREELY.
IMPORTANT:
TIGHTEN SIDE PLATE
BOLTS TIGHT. ALL
OF THE PRESSURE IS
ON THESE BOLTS.
3/8-16 BOLTS
INSTALL BOTH
RETURN SPRINGS
AS SHOWN
BOLT FOLLOW BAR
SUPPORT BRACKET
TO ROLLER BLOCK
AS SHOWN
ADJUST HEIGHT TO
MATCH HEIGHT OF
ROLLER BLOCK
ALL METAL TO METAL
SURFACES MUST BE
GREASED
INSTALL DIE AS SHOWN
PAGE 3
STEP 5
STEP 6
STEP 7
STEP 8
