7

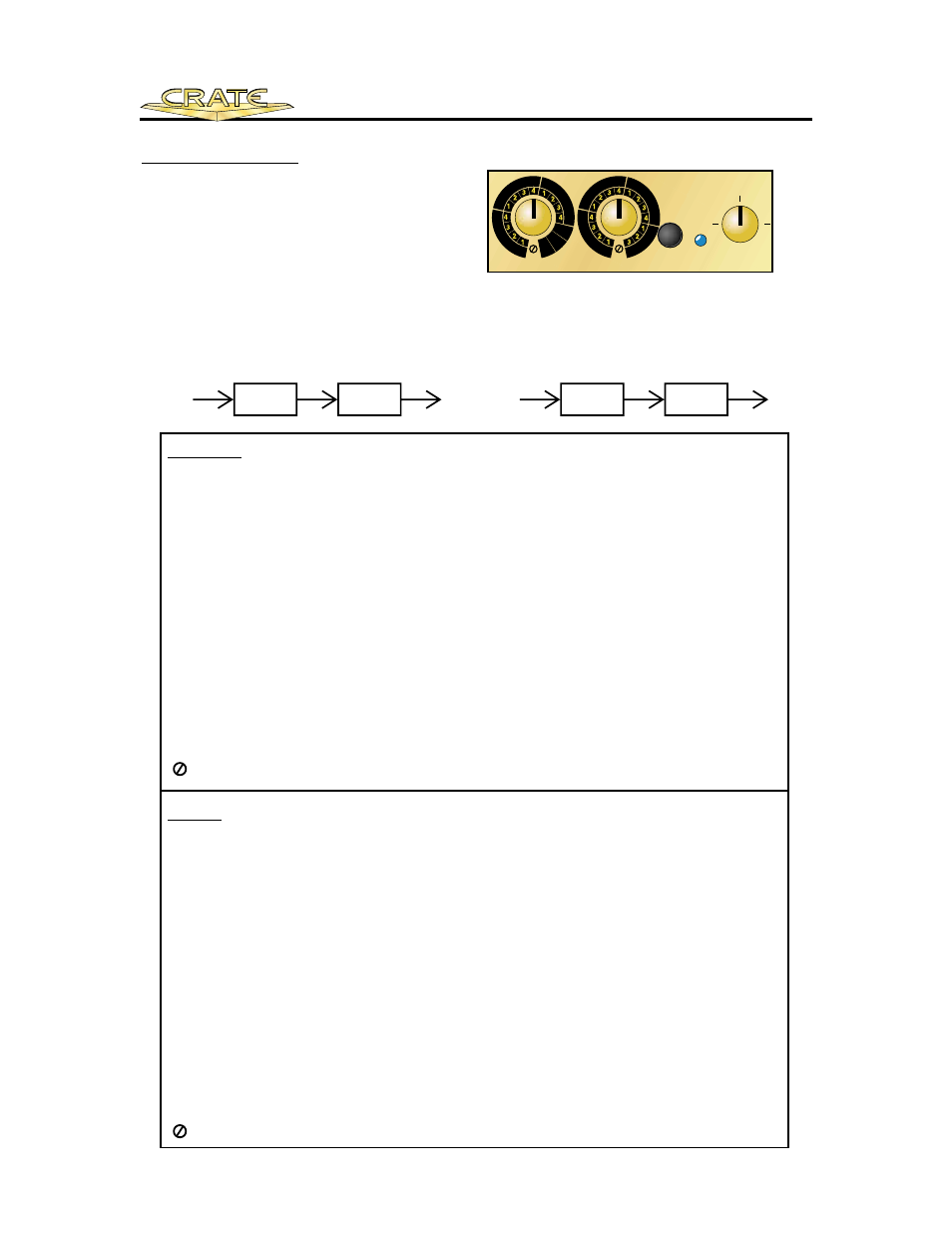

The DSP Section:
The RFX200S features DSP controls
for Effects, Delay and Reverb. Complete
information about the Effects and Delay
controls is given below. The Effects con-
trol selects the “pitch modified” and wah
effects. Many of these effects have their speed controlled by the Save/Tap button. The
Delay control selects the delay or echo effects. All of these effects have their speed con-
trolled by the Save/Tap button. Additional information is provided on pages 5 and 10.
DELAY DELAY DELAY EFFECTS EFFECTS EFFECTS
SAVE / TAP SAVE / TAP SAVE / TAP
REVERB REVERB
OCT OCT-
PHASE PH
AS
E WA
H
W AH
W
AH A
H
C
H
O
R
U
S
F
LA
NG
E PH
A
S
E
R
S
IN
G
LE
EC
HO
PIN
G
PO
N
G
SP
EC
IA
L
EFFECTS:
NAME DESCRIPTION SAVE/TAP BUTTON CONTROLS:
Chorus 1 stereo chorus w/low depth speed: 1 cycle/tap - period: .05 - 1 second
Chorus 2 stereo chorus w/medium low depth speed: 1 cycle/tap - period: .05 - 1 second
Chorus 3 stereo chorus w/medium high depth speed: 1 cycle/tap - period: .05 - 1 second
Chorus 4 stereo chorus w/high depth speed: 1 cycle/tap - period: .05 - 1 second
Flange 1 flanger w/low depth speed: 4 cycles/tap - period: .05 - 1 second
Flange 2 flanger w/medium low depth speed: 4 cycles/tap - period: .05 - 1 second
Flange 3 flanger w/medium high depth speed: 4 cycles/tap - period: .05 - 1 second
Flange 4 flanger w/high depth speed: 4 cycles/tap - period: .05 - 1 second
Phaser 1 phase shift w/low feedback speed: 2 cycles/tap - period: .05 - 1 second
Phaser 2 phase shift w/medium low feedback speed: 2 cycles/tap - period: .05 - 1 second
Phaser 3 phase shift w/medium high feedback speed: 2 cycles/tap - period: .05 - 1 second
Phaser 4 phase shift w/high feedback speed: 2 cycles/tap - period: .05 - 1 second
Oct- adds signal one octave below original n/a
Phase Wah medium phase w/touch sensitive wah n/a
Wah touch sensitive wah wah n/a
bypass (dry signal - no effect) n/a
DELAY:
NAME DESCRIPTION SAVE/TAP BUTTON CONTROLS:
Single 1 single delay w/low level delay time: .05 - 1 sec
Single 2 single delay w/medium level delay time: .05 - 1 sec
Single 3 single delay w/high level delay time: .05 - 1 sec
Single 4 single delay w/maximum level delay time: .05 - 1 sec
Echo 1 echo delay w/low level delay time: .05 - 1 sec
Echo 2 echo delay w/medium level delay time: .05 - 1 sec
Echo 3 echo delay w/high level delay time: .05 - 1 sec
Echo 4 echo delay w/maximum level delay time: .05 - 1 sec
Ping Pong 1 stereo panning delay w/low level delay time: .05 - 1 sec
Ping Pong 2 stereo panning delay w/medium level delay time: .05 - 1 sec
Ping Pong 3 stereo panning delay w/high level delay time: .05 - 1 sec
Ping Pong 4 stereo panning delay w/maximum level delay time: .05 - 1 sec
Special 1 low echo delay w/effect on echo only delay time: .05 - 1 sec
Special 2 medium echo delay w/effect on echo only delay time: .05 - 1 sec
Special 3 high echo delay w/effect on echo only delay time: .05 - 1 sec
bypass (dry signal - no effect) n/a
SIGNAL PATH FOR SPECIAL DELAY EFFECTS:
DELAY
SIGNAL PATH FOR ALL OTHER EFFECTS:
EFFECTS EFFECTS DELAY
RFX200S
Three-Channel Guitar Amplifier with Stereo DSP
