2–6

Features

Physical Parameters

2.3.1 ATX Hole Specification

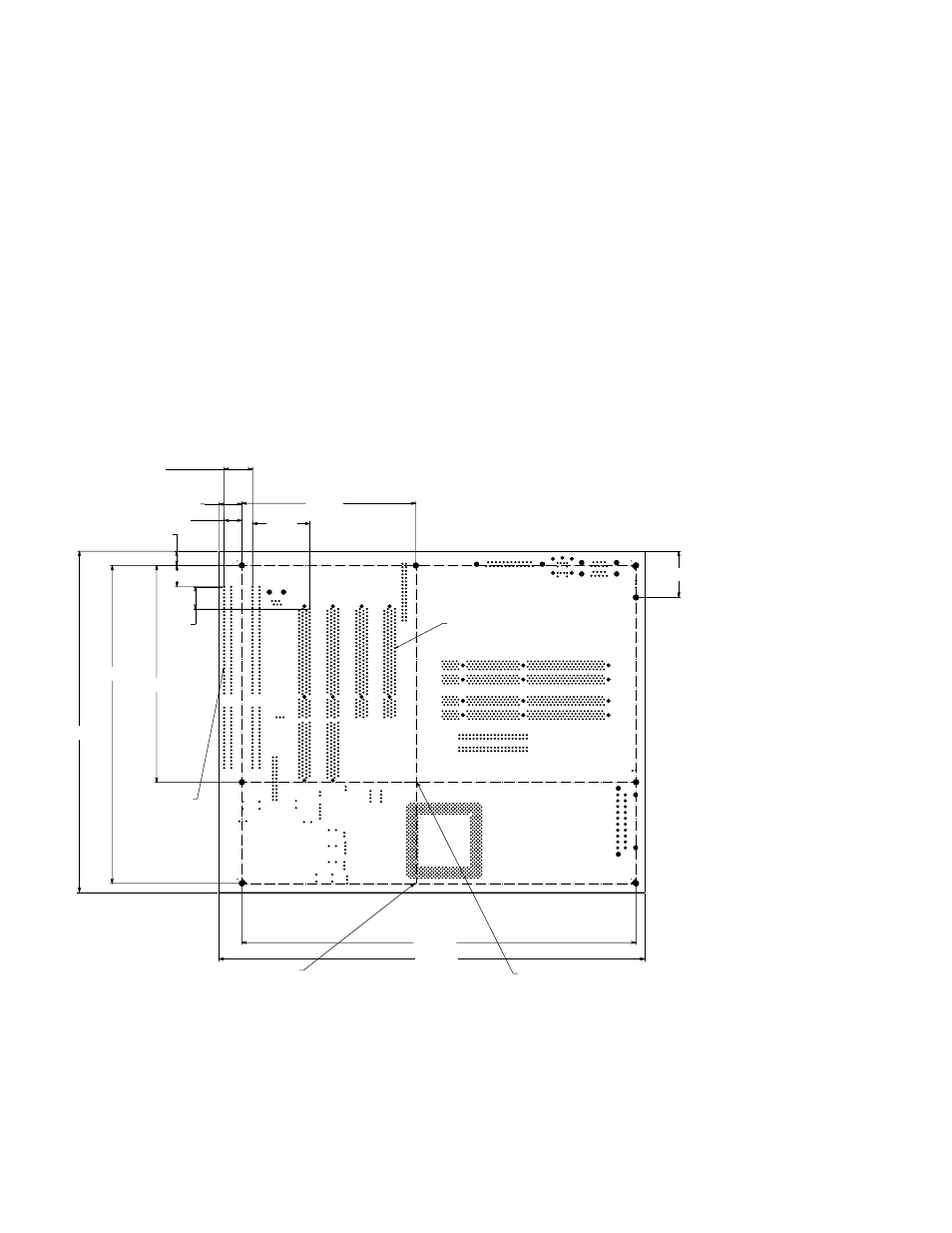

Figure 2–2 shows the ATX Hole Specification for the AlphaPC 164LX. Measurements
are shown in inches.

Figure 2–2 ATX Hole Specification

.800

TYP Between
Connectors

.650

.500

.400

4.900

1.612

.600

.625

9.600

8.950

6.100

ISA Connector
(2 Places)

PCI Connector
(4 Places)

1.300

11.100

12.000

This ATX hole is not supported
on AlphaPC 164LX board,
however clearance is provided
on side 2.

This ATX hole is not supported
on AlphaPC 164LX board, and no
clearance is provided on side 2.

FM-06012.AI4
