7

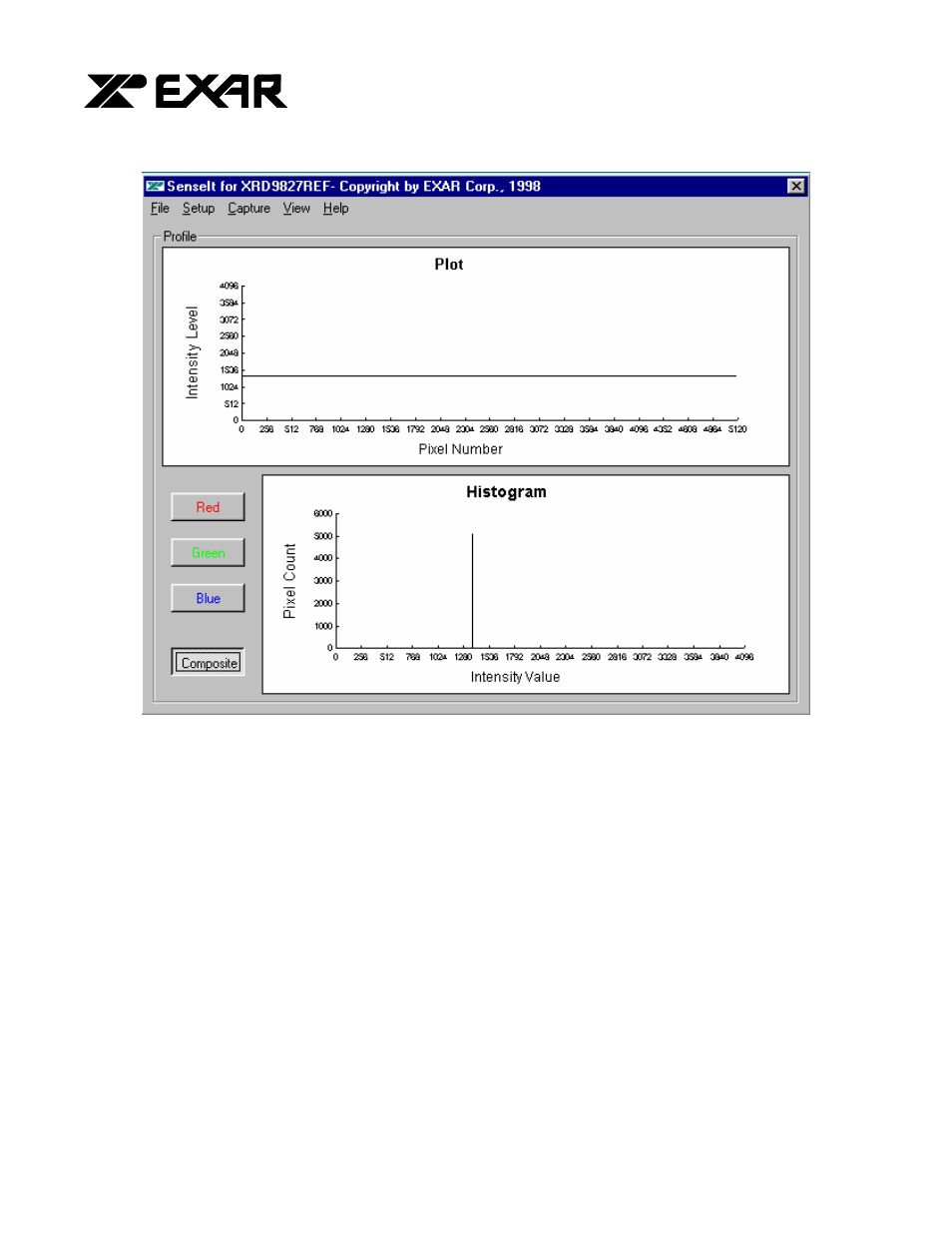

Figure 4. SenseIt Software Window Before Scanning
14. Select SETUP from the pull-down menu and choose I/O ADDRESS. In the window that pops up, type
in the Input/Output Range of Printer Port of your computer. The default setting is 378H.
15. Pick the black target out from the kit and put it on a flat area. Place the XRD9827REF on top of the
black target with the CIS sensor facing downwards. From the CAPTURE menu select SNAP SHOT (or
simply press CTRL and B buttons simultaneously) for a single line scan of the black target with the dip
switches set to [000 00000000]. A typical result of a black target scan is shown below:
