Preliminary – Canon XRD9827REF User Manual
Page 6
... the analog plus compa
TM
EXAR Corporation 48720 Kato Road, Fremont, CA 94538 Phone (510)-668-7000, Fax (510)-668-7030
PRELIMINARY
6
1
0
S
1
S
0
S
2
D
5
D
4
D
7
D
6
D
2
D
1
D
3
D
0

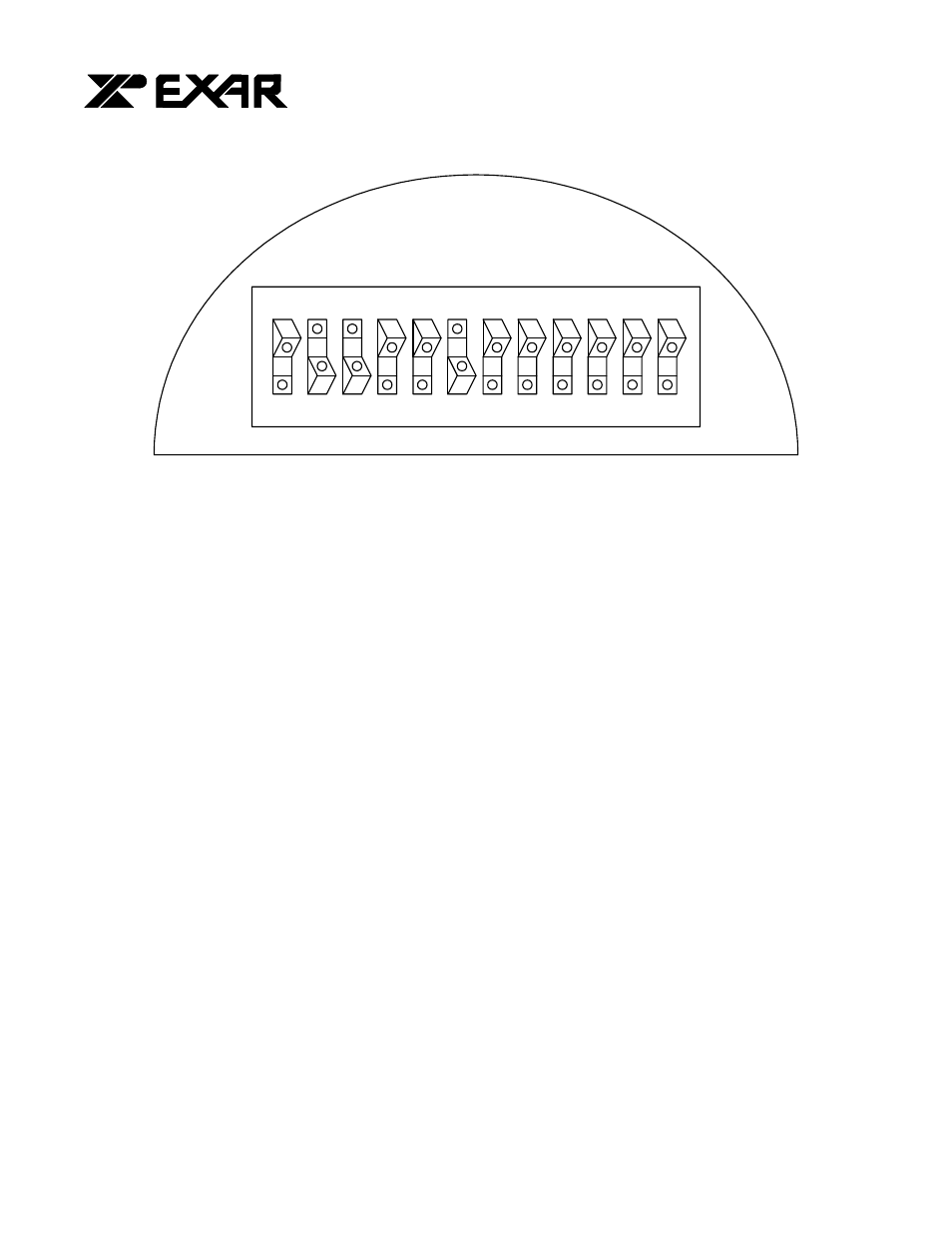

Figure 3. Dip Switches Set to Value [110 01000000] to Reset XRD9827
12. Select the Start Menu, choose Programs, then choose SenseIt icon
13. A window will pop up as shown below. The upper window shows the plot of captured data and the
lower window shows the histogram of data. Figure 4 shows the pop-up window when SenseIt is first
started.
