Installing the 9Cx14 Chassis
5. Install the Interface Module in the chassis by sliding it in any available slot
and locking down the top and bottom plastic tabs, as shown in Figure 1-6.
Take care that the Interface Module slides in straight and properly engages the
backplane connectors. When installing the Interface Module, ensure that the
circuit card is between the card guides, as shown in Figure 1-6. Check both the
upper and lower tracks.
6. If you are installing additional Interface Modules, repeat steps 1–5.

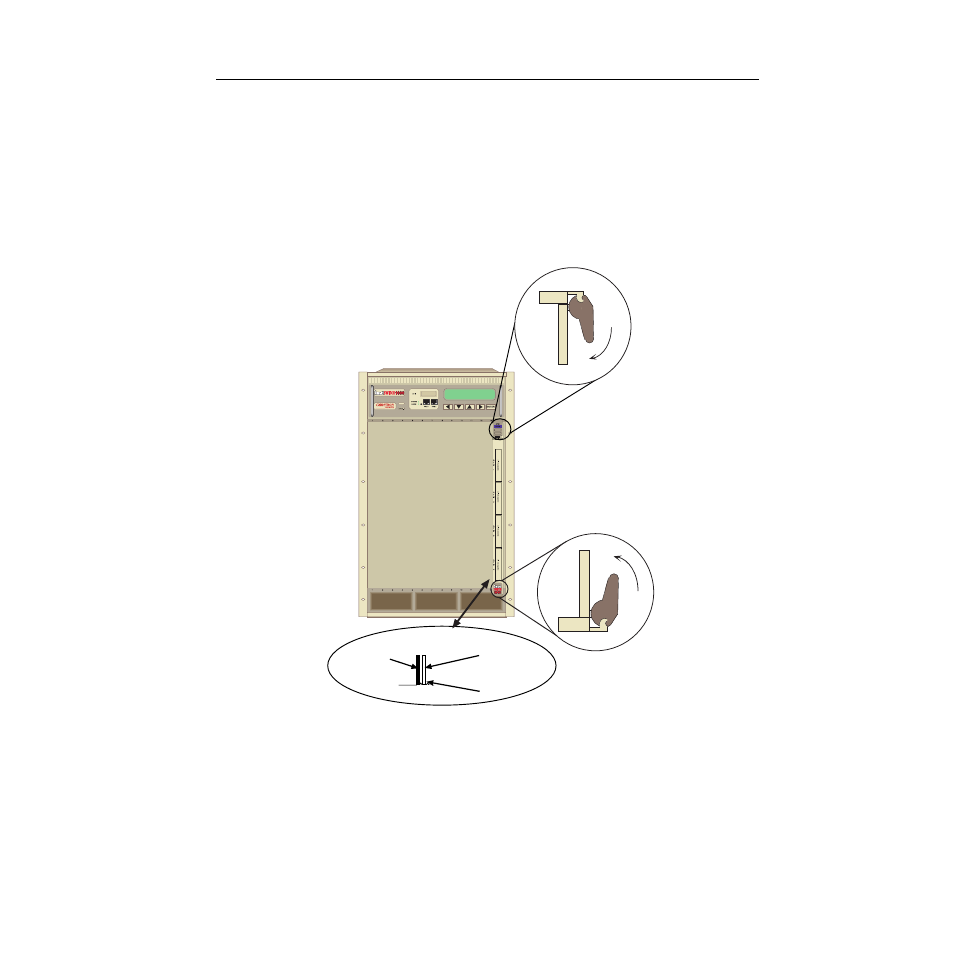

Figure 1-6. Installing SmartSwitch 9000 Interface Modules
2031_02
Circuit Card
Card Guides
Metal Back-Panel
Plastic Locking Tab
Plastic Locking Tab
