Installing the 9Cx14 Chassis
1-10
Attaching the Electrostatic Discharge (ESD) Wrist Strap
The ESD Wrist Strap must be attached before handling the Environmental
Module or SmartSwitch 9000 Interface Modules. In addition, observe all
precautions when handling these modules to prevent damage from ESD.
Attach the ESD Wrist Strap by following the steps below:
1. Attach one end of the ESD Wrist Strap to your wrist.
2. Plug the other end into the ESD Wrist Strap grounding receptacle in the front
lower right corner of the SmartSwitch 9000 chassis, as shown in Figure 1-4.

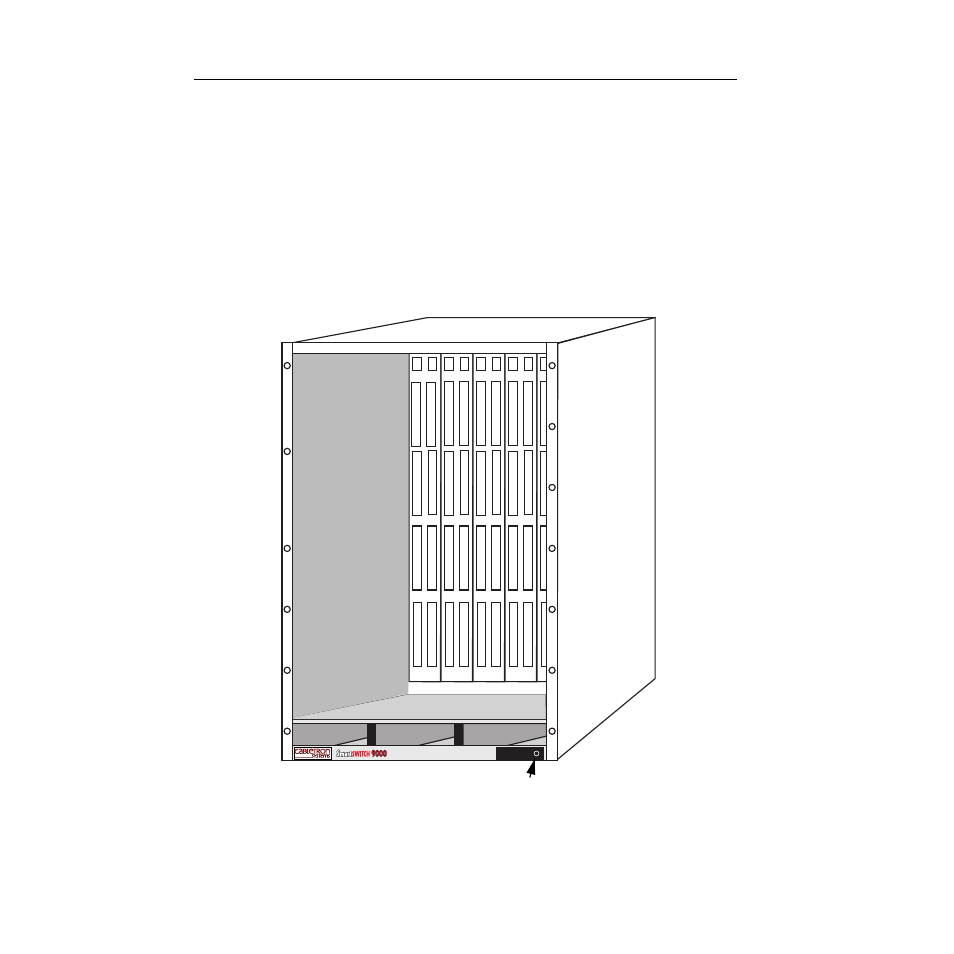

Figure 1-4. Attaching the ESD Wrist Strap
ALWAYS USE ESD
WRIST STRAP WHEN
HANDLING MODULES ESD WRIST STRAP GROUNDING
RECEPTACLE
ESD Grounding Receptacle
