Compaq 517212-001 User Manual
Page 21

517212-001

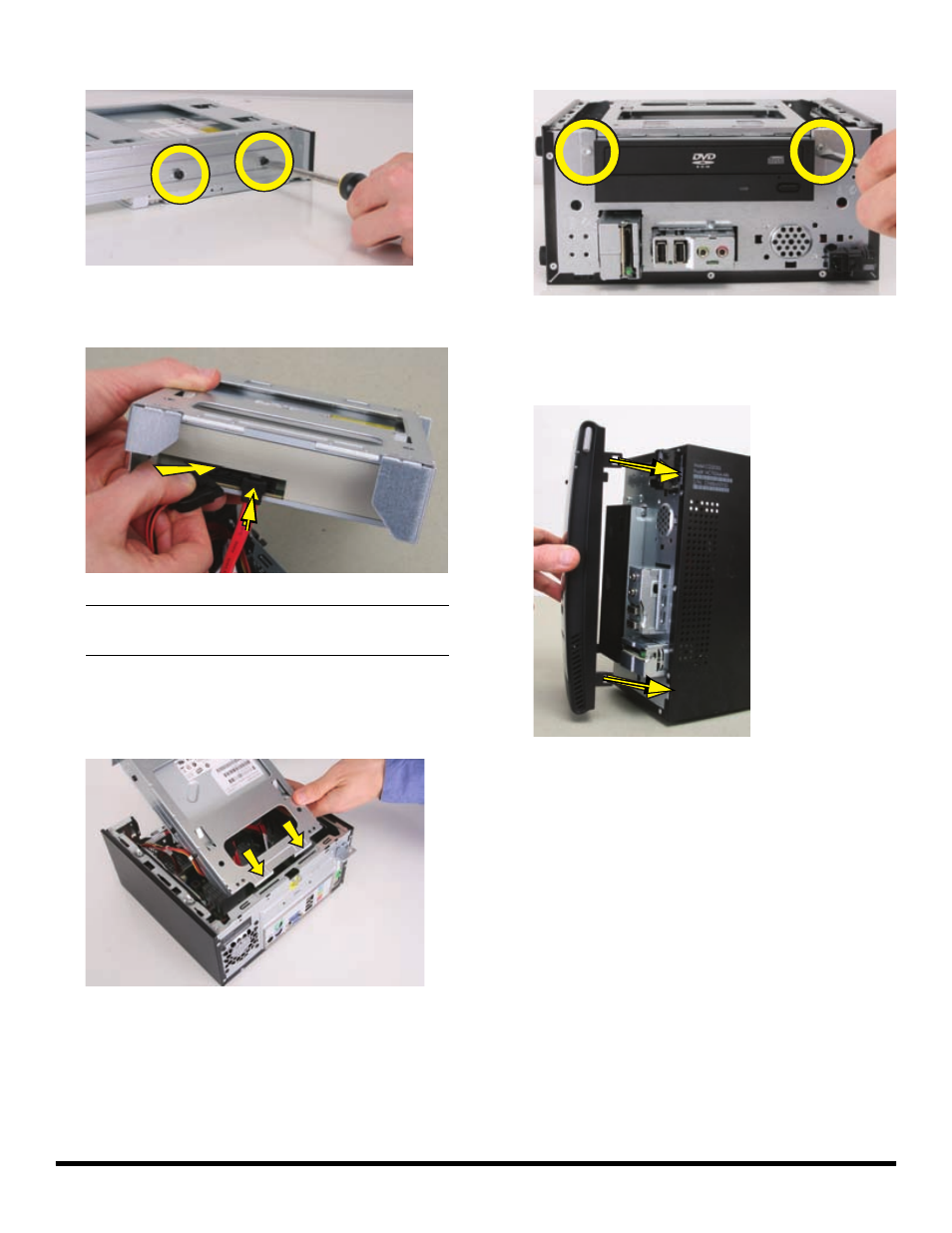

— Removing and Replacing the Optical Disc Drive
17
3 Replace the four drive cage screws.
4 Reconnect the power cable and data cable to the
optical drive.
5 Insert the tabs at the rear of the optical drive and
cage assembly into the slots at the rear of the
computer. Then lower the front of the drive and cage
assembly onto the computer.
6 Replace the two optical drive cage screws.
7 Stand the computer upright.
8 Insert the tabs on the right side of the bezel into the
slots on the right side of the front of the computer.
NOTE: The location of the cable connections may
vary with the optical drive model in your computer.
