517212-001

— Removing and Replacing the Hard Disk Drive

9

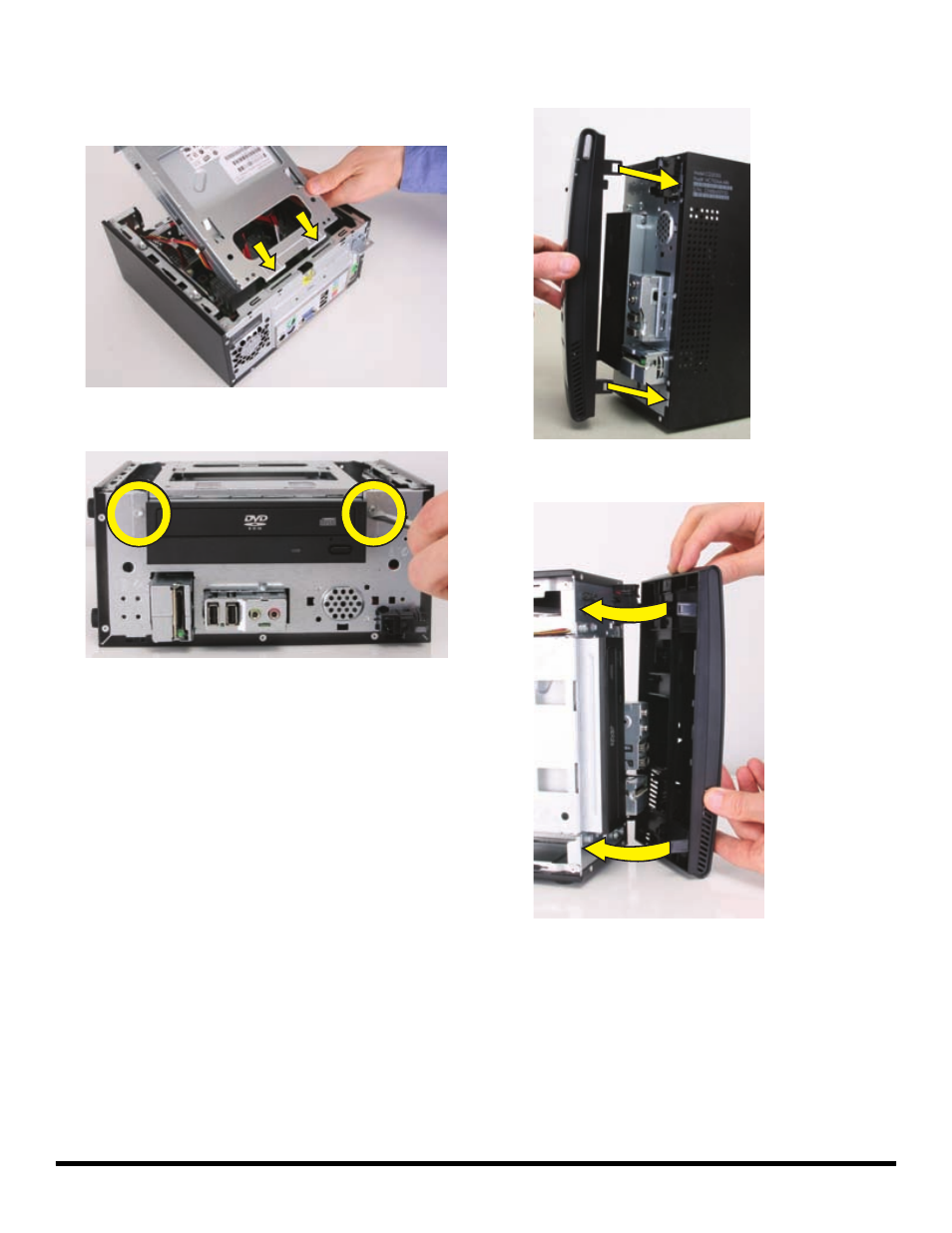

8 Insert the tabs at the rear of the optical drive and

cage assembly into the slots at the rear of the
computer. Then lower the front of the drive and cage
assembly onto the computer.

9 Replace the two optical drive cage screws.

10 Stand the computer upright.

11 Insert the tabs on the right side of the bezel into the

slots on the right side of the front of the computer.

12 Snap the left side of the bezel in place.
